Dump Truck Tarp System | Electric 4 Spring STEEL Tarp Kit | Fits up to 20' Long and 102" Wide

Our 4-spring external mount electrical steel system includes the complete zinc-plated steel arm set, motor, switch kit, wiring, tarp spool, and all the necessary hardware for installation. This dump truck tarp system comes with everything you need to haul, protect, and contain loads in dump bodies 20' and under.

PLEASE NOTE: TARP NOT INCLUDED IN THESE TRUCK TARP KITS; PLEASE ORDER SEPARATELY. IF YOU WANT A WIND DEFLECTOR OR HOUSING, THOSE MUST ALSO BE ORDERED SEPARATELY.

This kit contains all the components of the steel external mount tarp system. Click here to buy individual tarp system parts.

• External mount springs with easy bolt-on application
• Galvanized rustproof steel arms
• Everything you need to get started immediately--4-spring external mount arm with cross bar, tarp spool, and 1.5hp slim motor, which has a 50:1 ratio and is specially designed to match the wattage and tension of a 4-spring system. The motor has a 3 year warranty.
• Arm elbows not included
• The most economical system on the market
• Easily adjustable for 10' to 23' lengths - fits most common trucks
• Easy to install

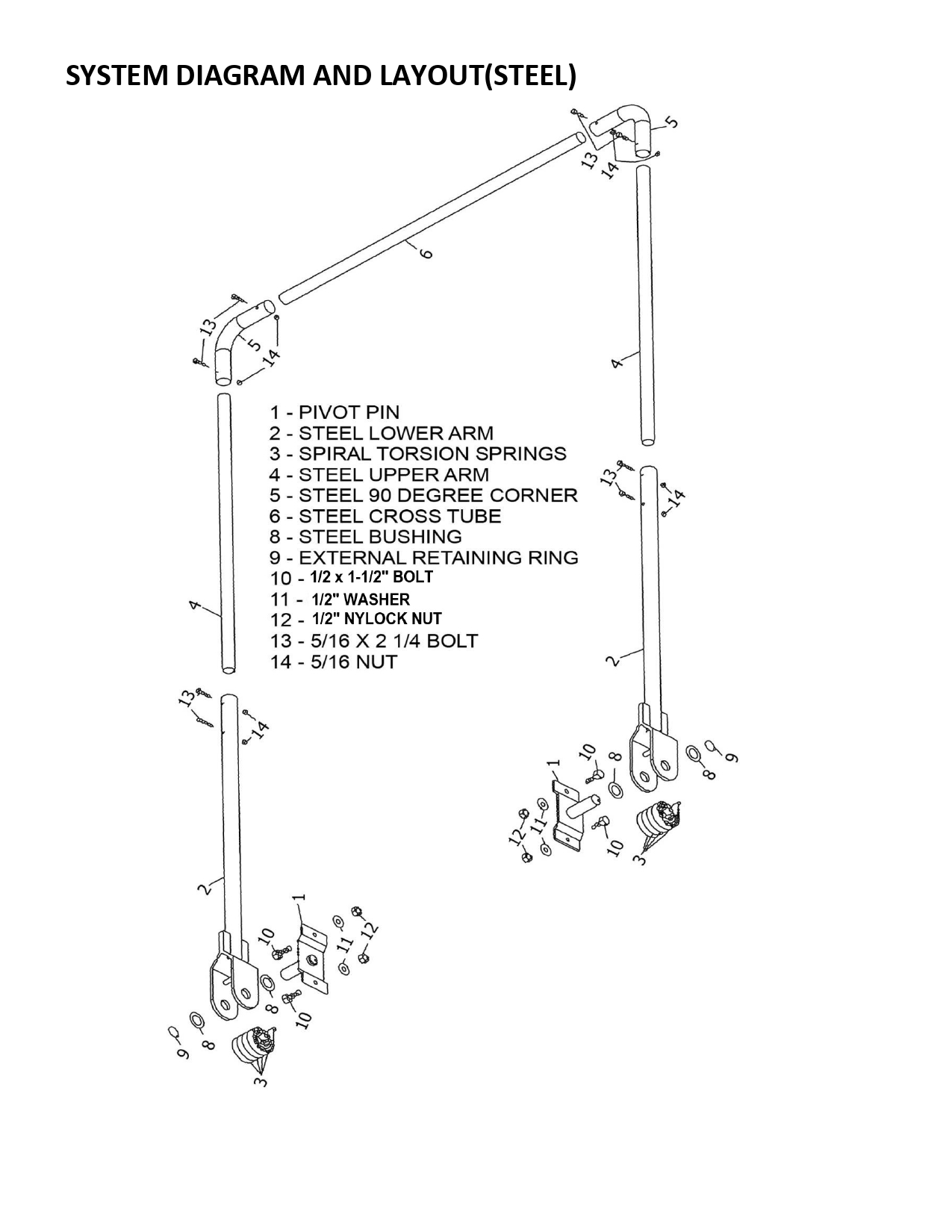

Kit includes:

• (2) 60" Lower steel arms
• (2) 107" steel side arm
• (2) Steel 90 degree corner
• (1) 103" steel cross tube
• (2) 3.7" steel pivot pins
• (8) Spiral torsion springs
• (2) Stainless steel bushings for pivot pin
• (1) Axle bearing with flanges
• (2) External Retaining Rings
• (1) Aluminum tarp axle (tarp spool)
• (2) Steel or aluminum tarp spool mounting brackets (aluminum brackets needed to fit optional wind deflector)
• (1) 50:1 Tarp Motor w/chrome cover
• (1) Stud shaft
• (1) Rotary switch kit
• (2) Plastic tarp centering flanges
• All the necessary bolts, etc.
• Cable
• 3-year full 100% warranty on motor
• Mounting hardware and wire connectors

Instructional video:

Please feel free to Contact Us with any Questions. Thank You!
