Steel Tarp System Parts

Spiral Torsion Spring
Spiral Torsion Spring
$9.99
Add To Cart
External Retaining Ring
External Retaining Ring
$3.20
Add To Cart

Sort:
Spiral Torsion Spring


Add To Cart

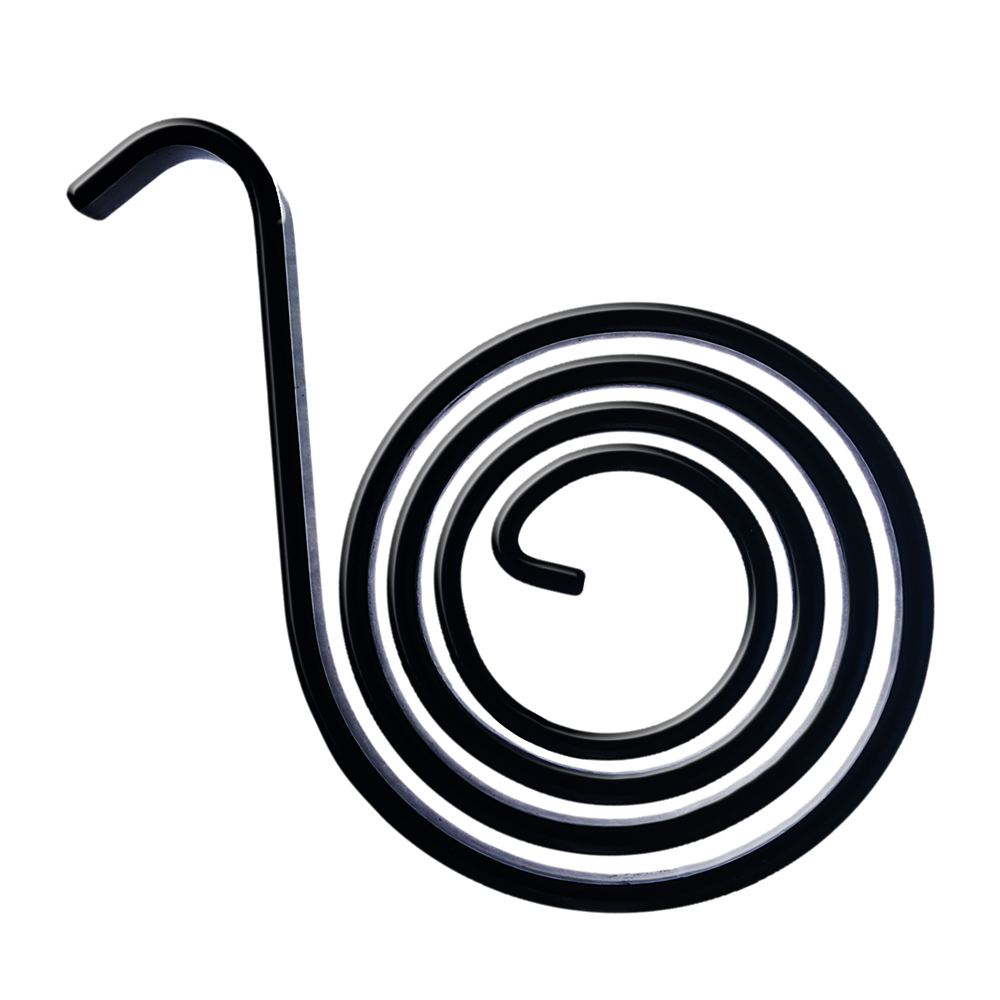

Spiral Torsion Spring
Item #: 9301 
6" spiral torsion spring is made of steel. 1/2" wide steel band measures 3 3/4" wide when fully coiled.
4-Spring Pivot Pin 3.7 for External Mount Tarp System


Add To Cart
4-Spring Pivot Pin 3.7" for External Mount Tarp System
Item #: 9306 Part #: PP4SP
The pivot pin mounts to the side of the dump body. The pin is 3-1/2" long and 1-3/16" thick, with a notch along the pin to fixedly seat the spiral torsion springs. The mounting plate is 8" x 3-5/8". The pin is welded to the mounting plate. The mounting plate has two 5/8" holes, spaced 5-1/2" apart.
4-Spring Steel Tarping System Lower Arm


Add To Cart
4-Spring Steel Tarping System Lower Arm
Item #: 9409 Part #: SLA36
Steel Tarping System Lower Arm is 60" long and 1 3/8" inside diameter.
Cross Tube for Steel Tarping System - 103


Add To Cart
Cross Tube for Steel Tarping System - 103"
Item #: 9410 Part #: SUA
Cross Tube for Steel Tarping System is 103" long and 1.315" in diameter.
Steel 90 Degree Corner


Add To Cart
Steel 90 Degree Corner
Item #: 9411 Part #: S90C
Attaches steel arms to cross tube.
Steel Upper Arm for Steel Tarping System - 95


Add To Cart
Steel Upper Arm for Steel Tarping System - 95"
Item #: 9412 Part #: SCT
Steel Upper Arm for Steel Tarping System is 95" long and 1.315" in diameter.
Tarp Wind Deflector with Mounting Hardware, 103 Aluminum Wind Screen


Add To Cart

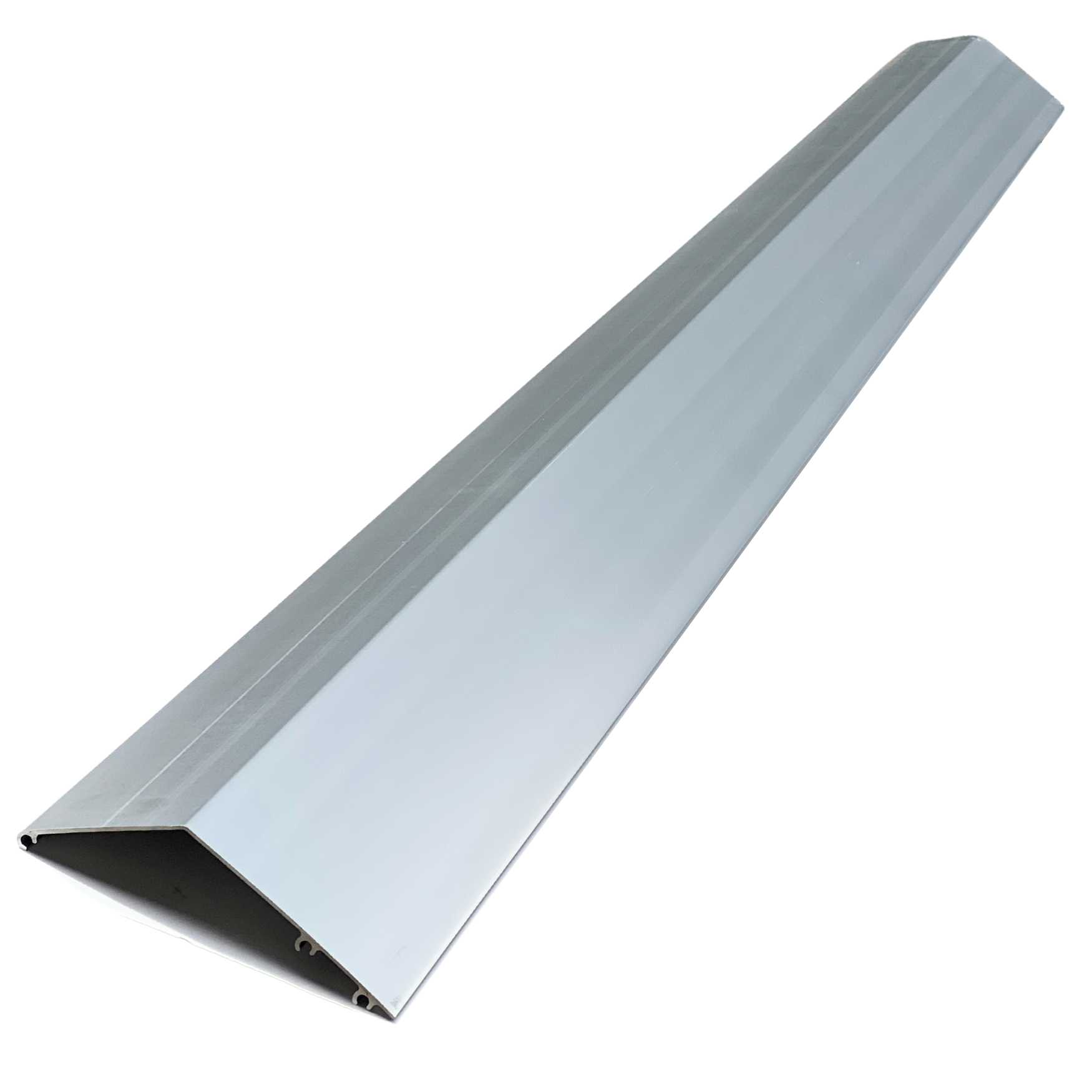

Tarp Wind Deflector with Mounting Hardware, 103" Aluminum Wind Screen
Item #: 9416 Part #: AWDK-103
103" aluminum faceshield deflects wind from tarp surface to reduce flapping and strain.
1-inch Drive Coupler


Add To Cart
1-inch Drive Coupler
Item #: 9375 Part #: 14266
1-inch drive coupler that connects the tarp motor to gearbox
Complete Hardware Kit for Steel System


Add To Cart
Complete Hardware Kit for Steel System
Item #: 9414 Part #: SHWK
Hardware kit includes stud shaft, axle bearing, all the nuts and bolts for the steel tarp system.
4 Spring Steel Arm Kit (Pin to Pin) - Steel Tarp Bow and Pivot Pin Sets for widths up to 95


Add To Cart
4 Spring Steel Arm Kit (Pin to Pin) - Steel Tarp Bow and Pivot Pin Sets for widths up to 95"
Item #: 9441 Part #: TBSPPSTBS
This is what you need if you're replacing the framework for the steel external mount system of your dump truck. Sometimes called an "arm kit," it has everything you need to replace the metal parts of your system, from pivot pin to pivot pin. Includes two lower arms, two upper arms, cross tube, two pivot pin sets, eight springs, and all mounting hardware. Does not include motor, switch kit, or wire. Heavy duty steel is extra durable and holds up even under heavy usage.
4 Spring Steel Arm Kit (Pin to Pin) - Steel Tarp Bow and Pivot Pin Sets for widths OVER 95


Add To Cart
4 Spring Steel Arm Kit (Pin to Pin) - Steel Tarp Bow and Pivot Pin Sets for widths OVER 95"
Item #: 34982 Part #: TBSPPSTBS
4 Spring Steel Arm Kit (Pin to Pin) - Steel Tarp Bow and Pivot Pin Sets for widths OVER 95"
Stainless Steel Bushing for Pivot Pin


Add To Cart
Stainless Steel Bushing for Pivot Pin
Item #: 9455 Part #: SSB
Stainless steel bushing for pivot pin
External Retaining Ring


Add To Cart
External Retaining Ring
Item #: 9456 Part #: ERR
External retaining ring - also called a snap ring or c-clip
4-Spring External Mount Pivot Pin Set, Steel


Add To Cart
4-Spring External Mount Pivot Pin Set, Steel
Item #: 9345 Part #: PPS4
Includes 1 3.7" pivot pin, 1 lower steel arm, and all the necessary springs, bushings, and bolts.
5-Spring External Mount Pivot Pin Set, Steel


Add To Cart
5-Spring External Mount Pivot Pin Set, Steel
Item #: 9537 Part #: PPS5
Includes one 4.325" pivot pin, one lower steel arm, and all the necessary springs, bushings, and bolts.
5 Spring Steel Arm Kit (Pin to Pin) - Steel Tarp Bow and Pivot Pin Sets


Add To Cart
5 Spring Steel Arm Kit (Pin to Pin) - Steel Tarp Bow and Pivot Pin Sets
Item #: 9513 
This is what you need if you're replacing the framework for the steel external mount system of your dump truck. Sometimes called an "arm kit," it has everything you need to replace the metal parts of your system, from pivot pin to pivot pin. Includes two lower arms, two upper arms, cross tube, two pivot pin sets, ten springs, and all mounting hardware. Does not include motor, switch kit, or wire. Heavy duty steel is extra durable and holds up even under heavy usage.
Centering Flange for Steel Systems (Flange with Clamp)


Add To Cart
Centering Flange for Steel Systems (Flange with Clamp)
Item #: 9354 Part #: 13941 / 13913
Centering flange for steel tarping system fits most standard steel crosstubes about 1-3/8" diameter.
1-17 of 17 results
