Adjustable Cross Tube for Front-to-Back Tarp Systems

This 3-piece aluminum cross tube features an adjustable "no-cut" design for easier installation and SIGNIFICANTLY lower shipping costs.

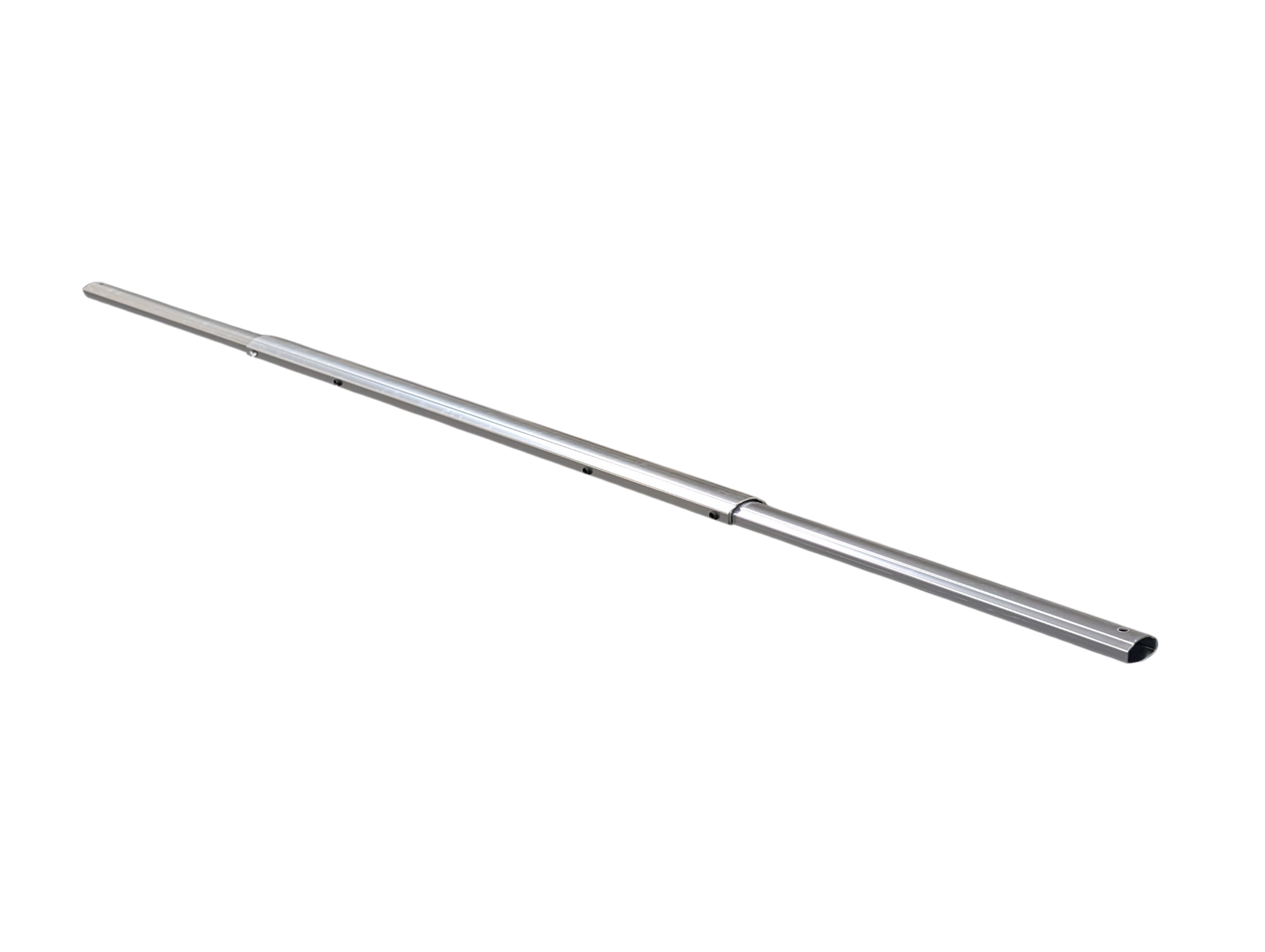

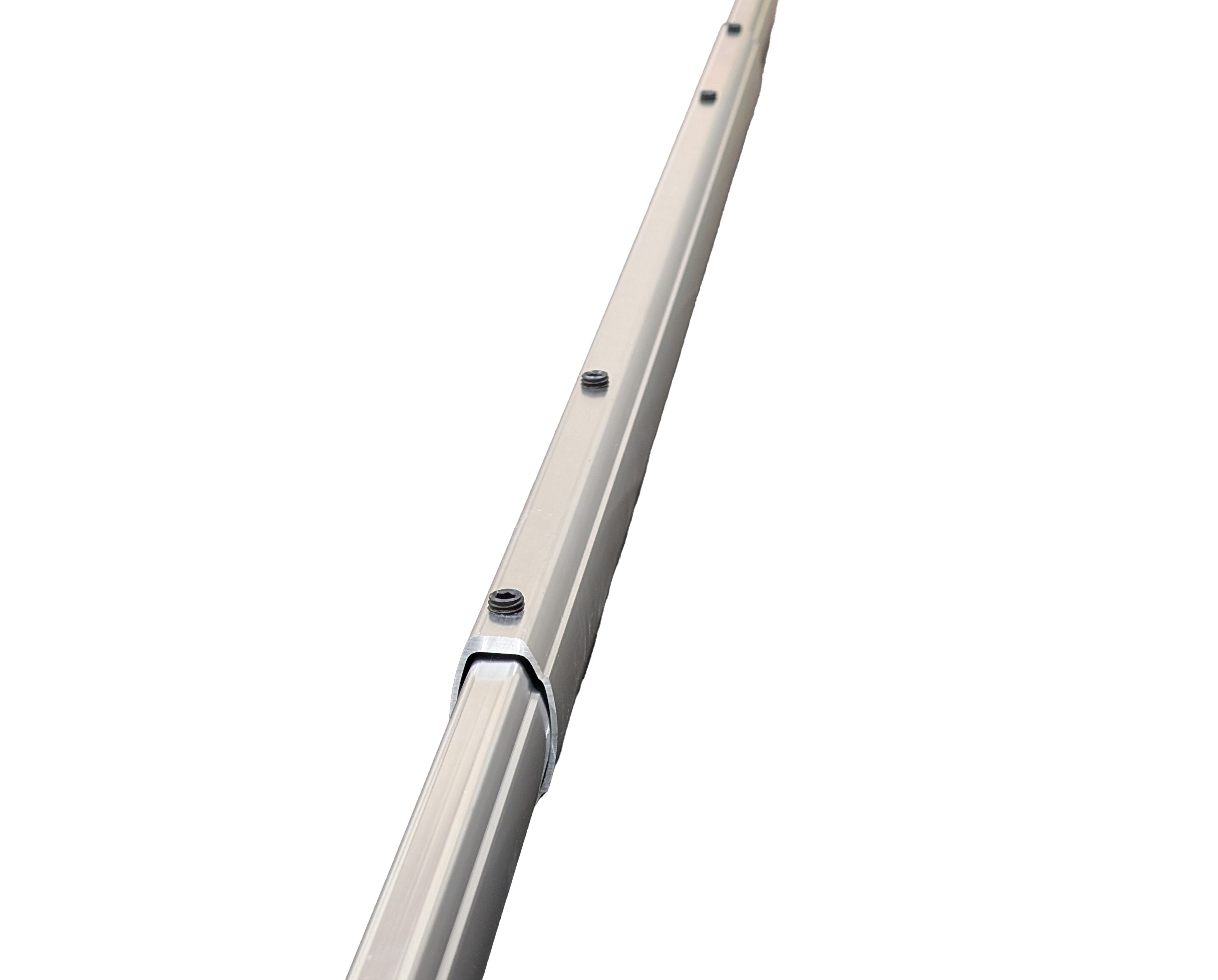

Our 103" one-piece cross tube must be measured and cut to an exact length, but this cross tube can be adjusted to fit any dump bed up to 110" wide. The assembly comes with one 47" center tube and two 45" telescoping tubes. Set screws tighten down on each end of the center tube to hold the telescoping tubes securely in place. Out of the box, the narrowest width it can accommodate is 90", but you can cut the two outer tubes if you require a shorter cross tube.

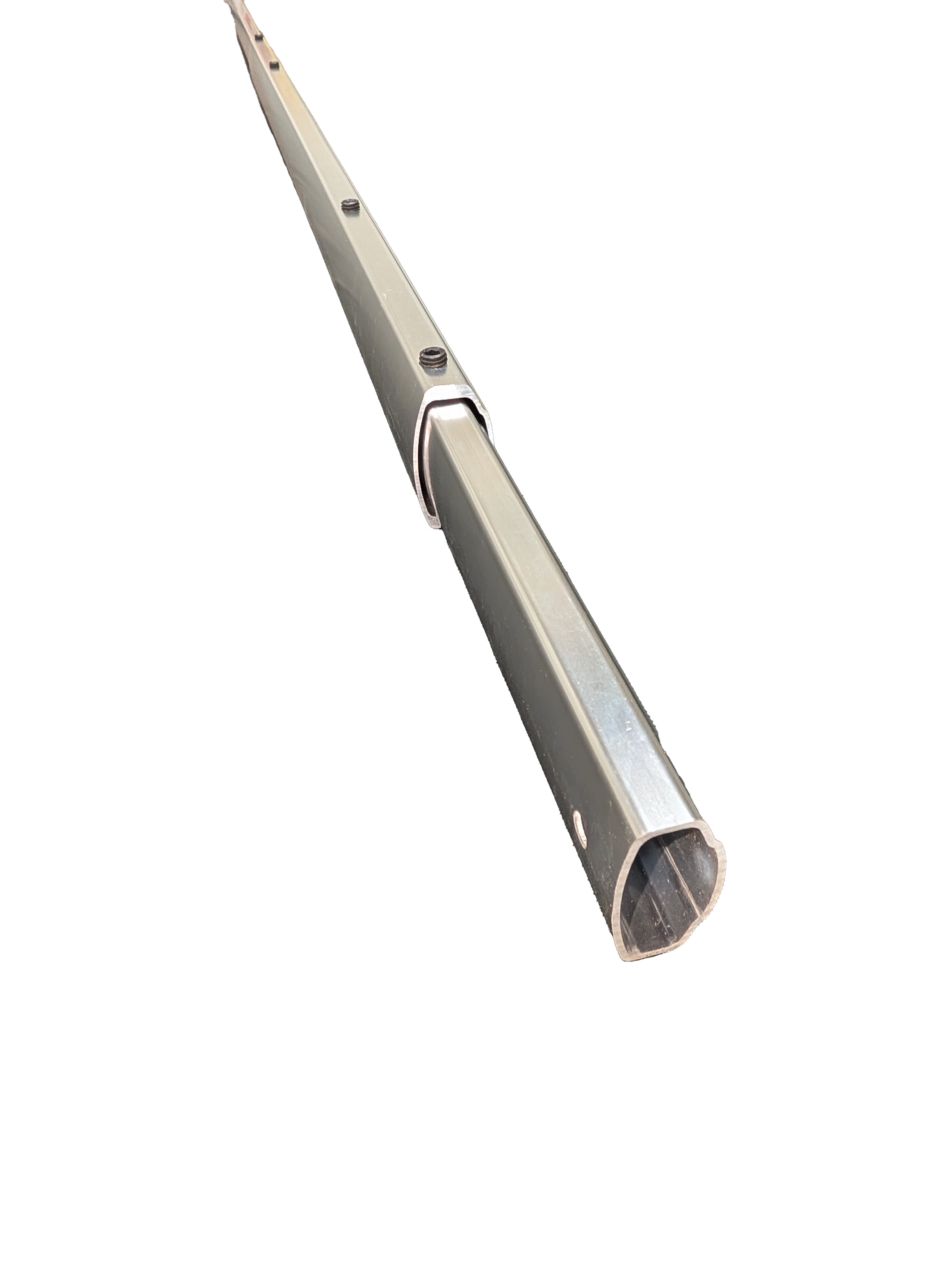

PLEASE NOTE: This cross tube is NOT compatible with every tarp system brand. The outside dimensions of the profile measure 2-1/8" x 1-3/8" with a wall thickness of 5/64".

90 degree corner castings connect into the ends of the telescoping tubes and then into the ends of your upper side arms to complete the front-to-back tarp arm kit. PLEASE NOTE this crosstube CANNOT be used as a replacement side arm.

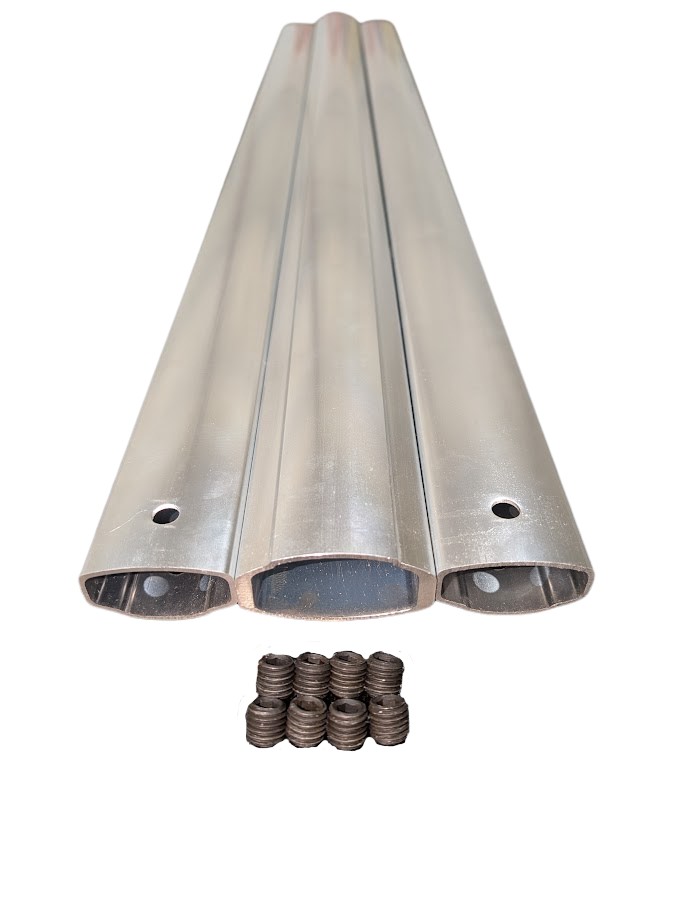

Parts included:

• (1) 47” Center Tube
• (2) 45” Telecoping Tubes
• (8) 1/2” x 1/2” Allen Cup Head Set Screws
