Part Overview

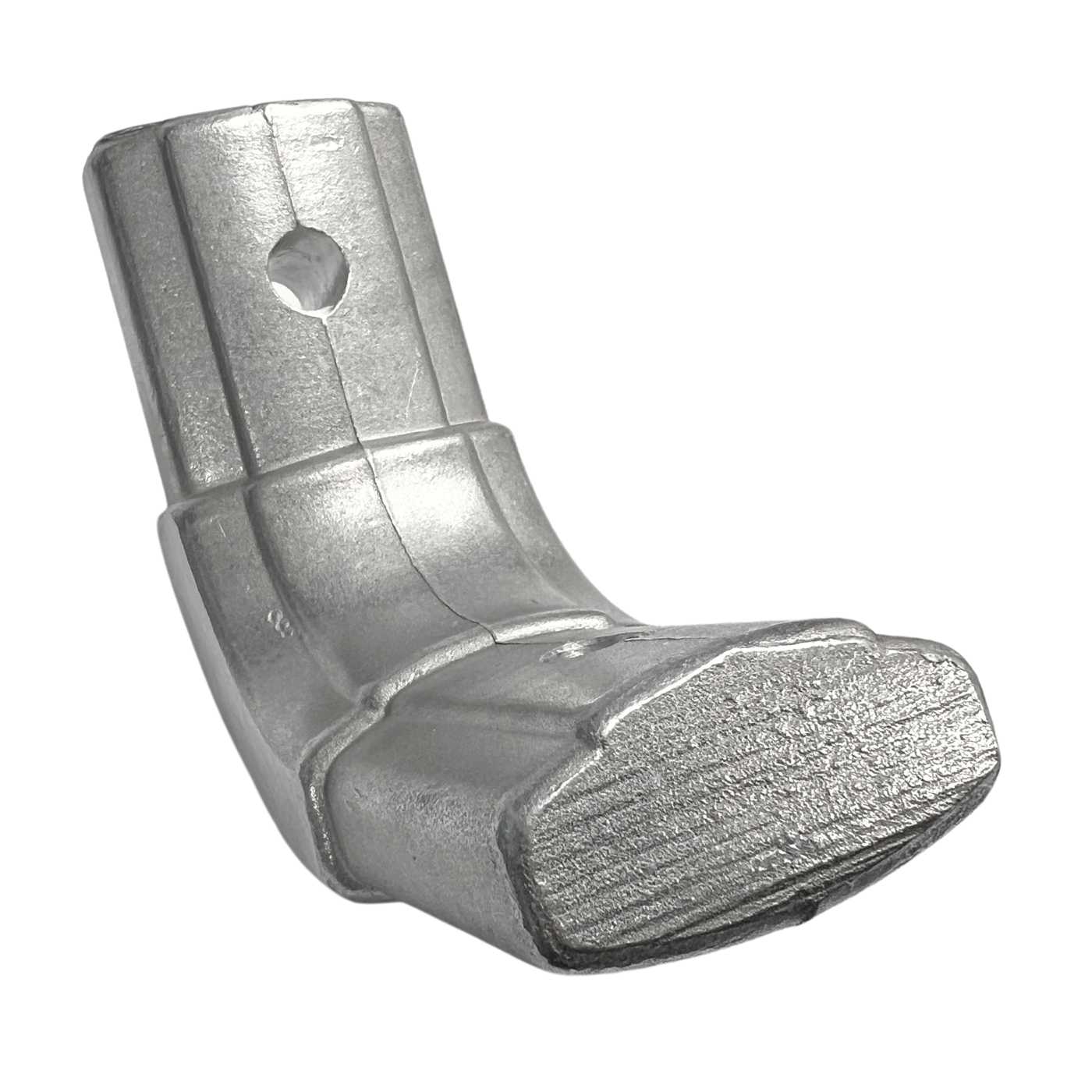

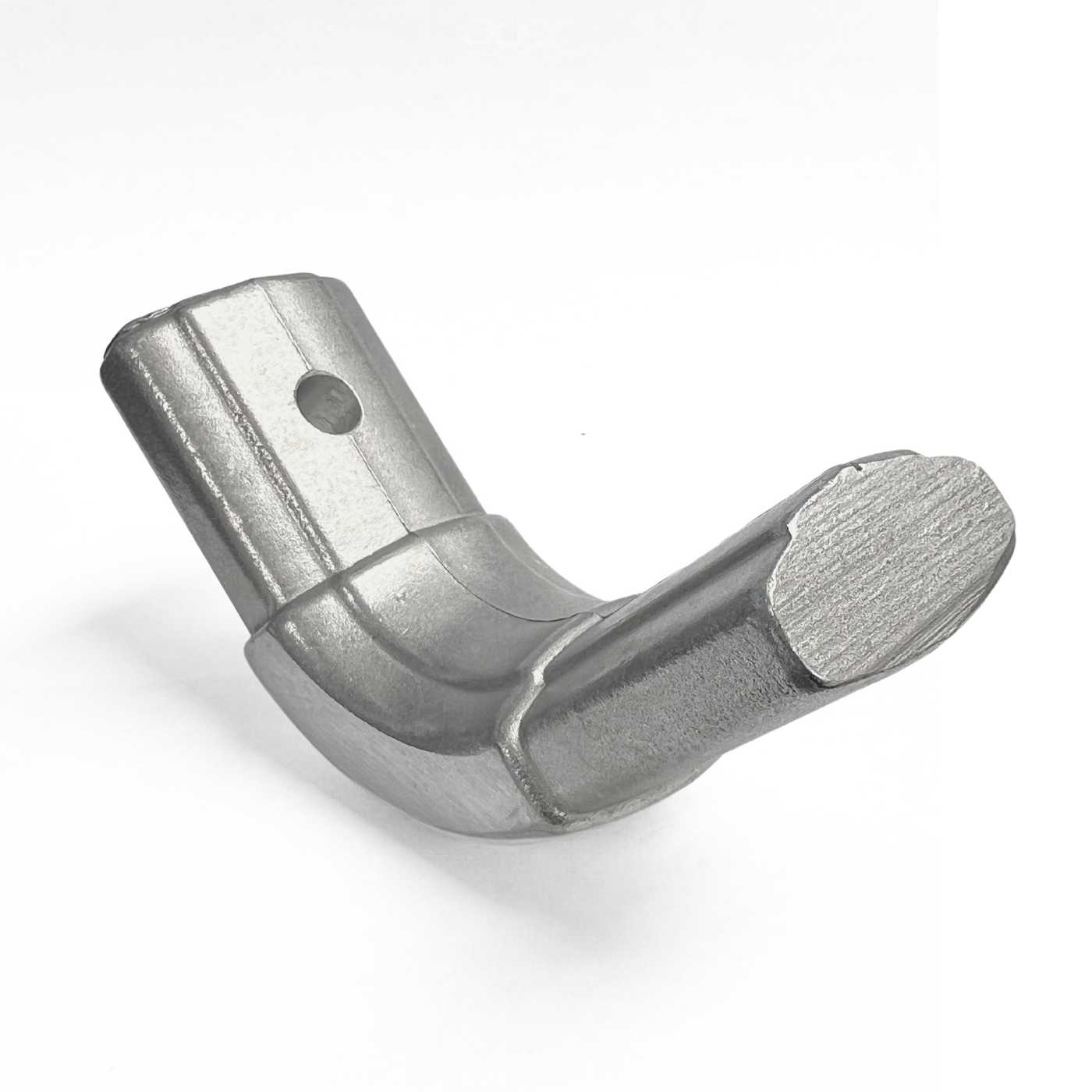

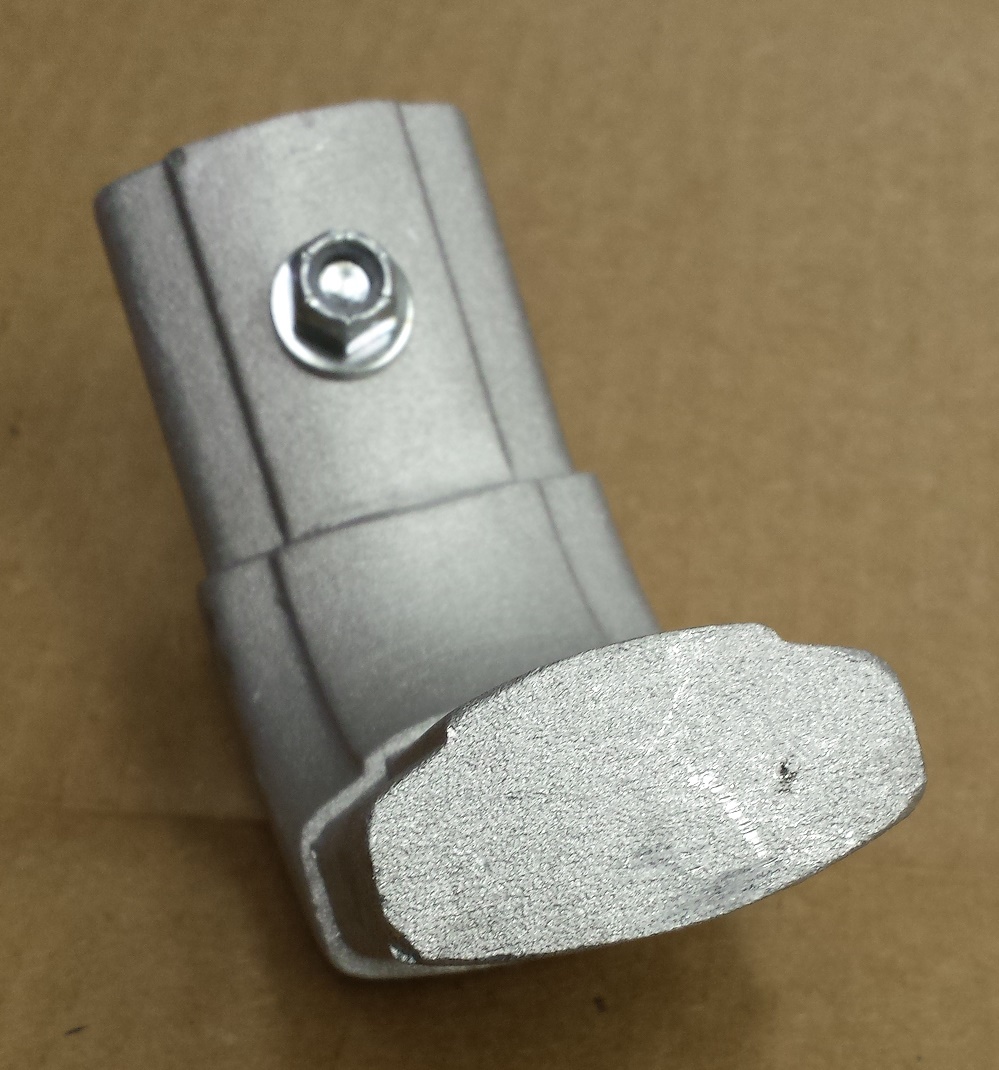

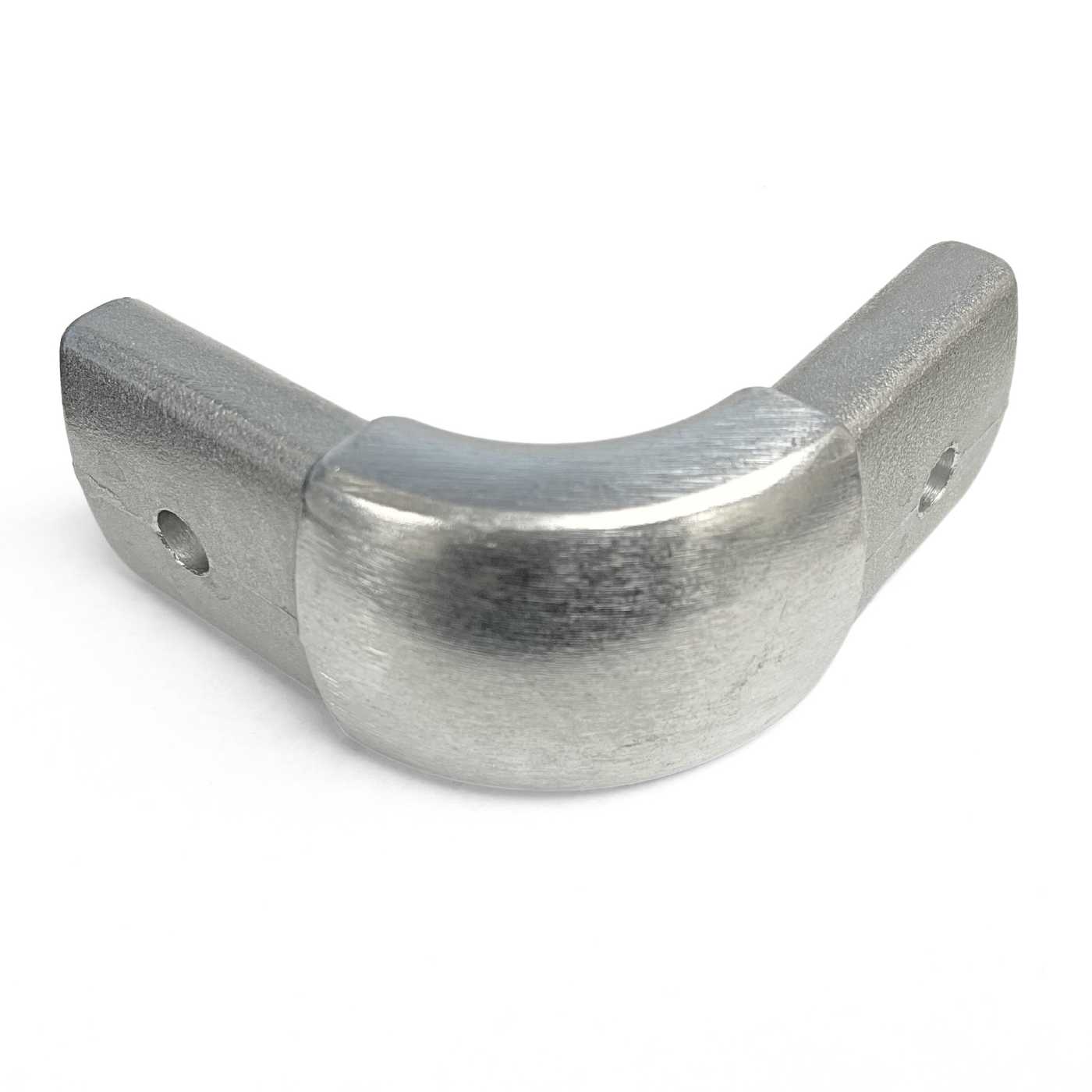

The corners of a tarp system connect the aluminum upper arms to the aluminum cross tube that goes through the pocket of the tarp. This 90 degree corner is a replacement part for our 4-spring, 5-spring, and Underbody front-to-back tarp systems.

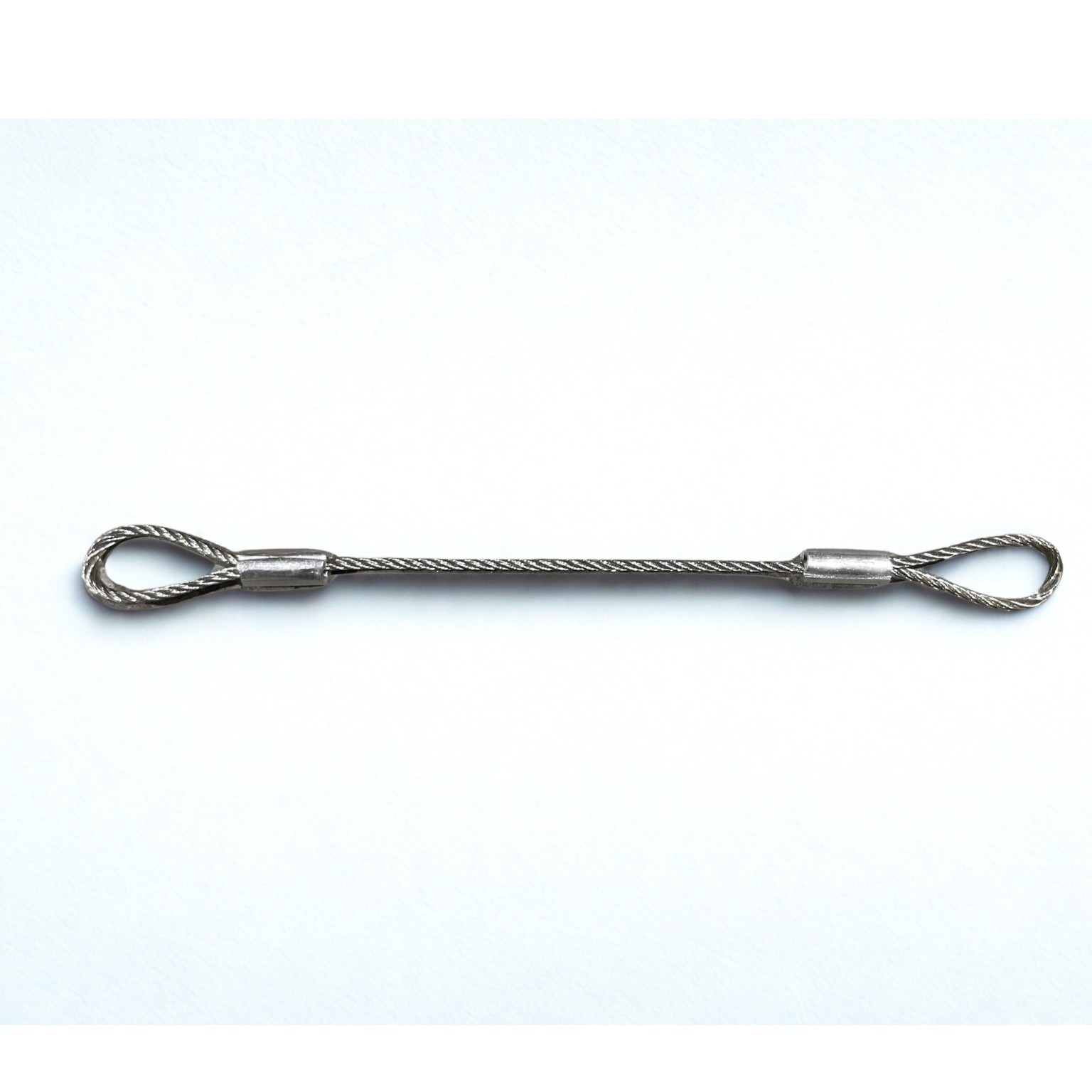

Now includes a Safety Tether (pictured) to prevent injury or damage in the event of the corner casting breaking.
Included hardware:
(2) 5/16" x 1-3/4" Hex Bolts
(2) 5/16" Washers
(2) 5/16" Nylon Nuts
Carolina Tarps 90° Corner Compatibility
Fits: Donovan tarp systems (2842D), and theoretically Roll Rite systems (76800), although very snugly; You may have to force it in, and once it's in, it ain't coming out!
Does not fit: US Tarp (11235), Aero (0311-863014), Mountain (varies), Cramaro (110089), or Buyers (3011866) tarp systems.
Dimensions:
End to End: 7-5/8"
Diameter: 2"
Thickness: 1"
