Pioneer HR1000PTO Semi-Automatic Pull Rope System

Pioneer HR1000PTO Semi-Automatic Pull Rope System
Additional Photos Pioneer HR1000PTO Semi-Automatic Pull Rope System
Documents Installation Instructions
Gantry Schematic
HR1000PTO Schematic

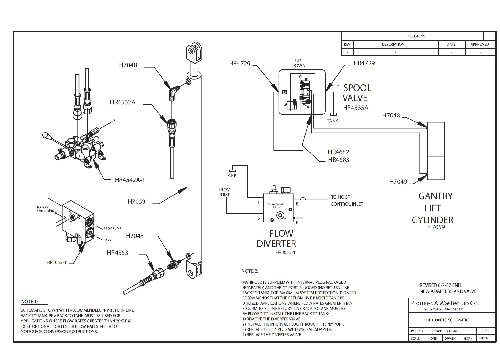

Hydraulic Schematic
Roller Assembly
Pioneer HR1000PTO Semi-Automatic Pull Rope System
Item #: 20065
Part #: HR1000PTO

Qty:     Price:

Add To Cart

Tuff-Tarper Series

The Tuff-Tarper systems are designed for single axle cable hoist and hooklift trucks.

These systems can cover open-top, fixed height containers ranging from 8' to 16'. These systems are available in semiautomatic, automatic and hydraulic.

HR1000 Hi-Roller (Semi-Automatic Armless)

The HR1000PTO is a hydraulic tarp system for single axle hook lift trucks and cable hoists covering containers up to 16' (Maximum).

The Tuff-Tarper Advantage

The HR1000PTO is an armless semi-automatic tarping system. The hydraulic gantry adjusts from 64" to 104". This unit can be integrated with your truck's hydraulic power. Simply raise the gantry above the container, flip the rope above the load, walk to the rear of the truck and pull the tarp over the load. Then, tie the tarp to the provided cleat. This unit comes standard with a 9' wide expandable heavy duty mesh tarp.

Parts Include:

Lock Ring, Wheel to Load Roller, Guide Washer, Collar, Steel Housing Assembly, Complete Roller Assembly, Roller, Pull Rope with Snap Hook, Snap Hook, Eye Bolt, Rear Section, Roll Mounting Angle, Clevis Eye Pad, 90 degree ELL, Cylinder 40", Celvis Pin with Cotter, Roll Base, Gantry Assembly, 1/4 NPT x -6 JIC 90 degree ELL, Hydraulic Hose (-4 x 9" crimped 2 ends), Hydraulic Hose (-4 x 6' crimped two ends), Rope Hook, -8 SAE M x -6 JIC M Adapter, -8 SAE M x -8 JIC 90 degree ELL, -4 SAE M Plug, Flow Diverter @ 1 GPM, Cover control valve, and -6 JIC M x -6 JIC F 90 degree ELL.

Replacement covers:

9'x 19' Heavy Duty Mesh and 9' x 19' Cordura (Pennsylvania DOT Spec)
