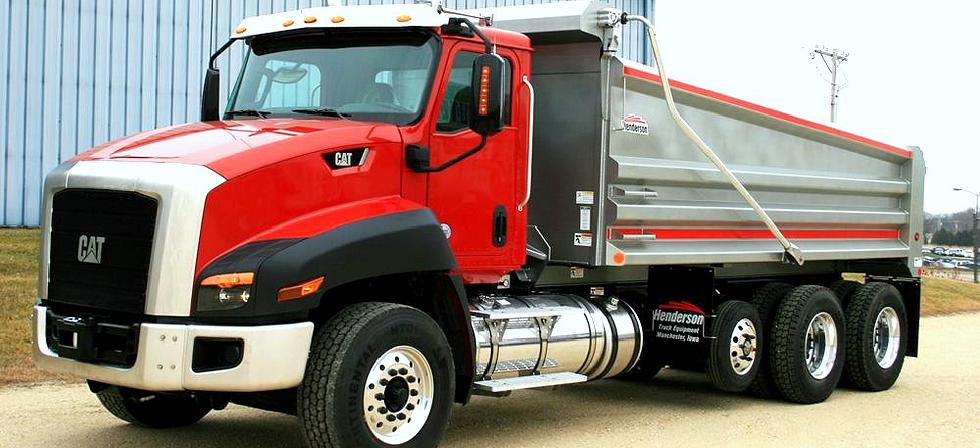

US Tarp 168" Bullet Proof 4-Spring External Mount Aluminum Tarp System

US Tarp's 168" 4-spring system with upgraded "bulletproof" aluminum arms fits trucks up to 20'. Tarp sold separately.

Description Price Qty Buy
US Tarp 168" Bullet Proof 4-Spring External Mount Aluminum System, Electric w/ Slim Motor $1,154.69 Add To Cart
US Tarp 168" Bullet Proof 4-Spring External Mount Aluminum System, Ground Level Crank $1,057.39 Add To Cart
US Tarp 168" Bullet Proof 4-Spring External Mount Aluminum System, Electric w/ Slim Motor, EZ Switch $1,187.48 Add To Cart
US Tarp 168" Bullet Proof 4-Spring External Mount Aluminum System w/ 97" Wind Deflector, Electric w/ Slim Motor $1,241.27 Add To Cart
US Tarp 168" Bullet Proof 4-Spring External Mount Aluminum System w/ 97" Wind Deflector, Ground Level Crank $1,143.97 Add To Cart
US Tarp 168" Bullet Proof 4-Spring External Mount Aluminum System w/ 97" Wind Deflector, Electric w/ Slim Motor, EZ Switch $1,274.06 Add To Cart
US Tarp 168" Bullet Proof 4-Spring External Mount Aluminum System w/ 103" Wind Deflector, Electric w/ Slim Motor $1,393.46 Add To Cart
US Tarp 168" Bullet Proof 4-Spring External Mount Aluminum System w/ 103" Wind Deflector, Ground Level Crank $1,296.16 Add To Cart
US Tarp 168" Bullet Proof 4-Spring External Mount Aluminum System w/ 103" Wind Deflector, EZ Switch $1,426.25 Add To Cart
US Tarp 168" Bullet Proof 4-Spring External Mount Aluminum System w/ 102" Smooth Wind Deflector, Electric w/ Slim Motor $1,270.70 Add To Cart
US Tarp 168" Bullet Proof 4-Spring External Mount Aluminum System w/ 102" Smooth Wind Deflector, Ground Level Crank $1,173.40 Add To Cart
US Tarp 168" Bullet Proof 4-Spring External Mount Aluminum System w/ 102" Smooth Wind Deflector, Electric w/ Slim Motor, EZ Switch $1,303.49 Add To Cart
US Tarp 168" Bullet Proof 4-Spring External Mount Aluminum System w/ Open Top Alum Housing, Electric w/ Slim Motor $1,477.75 Add To Cart
US Tarp 168" Bullet Proof 4-Spring External Mount Aluminum System w/ Open Top Alum Housing, Electric w/ Slim Motor, EZ Switch $1,510.54 Add To Cart
US Tarp 168" Bullet Proof 4-Spring External Mount Aluminum System w/ 92" Housing, Electric w/ Slim Motor $1,759.23 Add To Cart
US Tarp 168" Bullet Proof 4-Spring External Mount Aluminum System w/ 92" Housing, Electric w/ Slim Motor, EZ Switch $1,792.02 Add To Cart
US Tarp 168" Bullet Proof 4-Spring External Mount Aluminum System w/ 98" Housing, Electric w/ Slim Motor $1,791.60 Add To Cart
US Tarp 168" Bullet Proof 4-Spring External Mount Aluminum System w/ 98" Housing, Electric w/ Slim Motor, EZ Switch $1,824.39 Add To Cart
US Tarp 168" Bullet Proof 4-Spring External Mount Aluminum System w/ 104" Housing, Electric w/ Slim Motor $1,794.06 Add To Cart
US Tarp 168" Bullet Proof 4-Spring External Mount Aluminum System w/ 104" Housing, Electric w/ Slim Motor, EZ Switch $1,826.85 Add To Cart

US Tarp's 4-spring system with upgraded "bulletproof" aluminum arms fits trucks up to 24'.

Specifications:

  • 4 spring assembly
  • Fits dump bodies up to 20' in length
  • One piece cross tube assembly in either 96" or 102" wide
  • One piece arm designed for optimum strength

Bullet Proof 4-Spring Aluminum System, Slim (168" Arms):

Tarp Tips:

  • Measure your dump body from where you are planning on installing your Tarp Spool to the Tail Gate
  • Adding a Tarpaulin Housing or Wind Deflector can extend the lifespan of the tarp
  • If elbows are needed for the bulletproof system, you will need the bent arms. Bulletproof arms will be bent, not cut

Reference for External Mount Bullet Proof System Exploded View*:

Reference Number

Part Number

Description

1 11132 4-Spring Pivot Pin
2 13942 4-Spring External Mount Casting
3 11121 Spiral Torsion Spring
4 11141 Stainless Aluminum Bushing for Pivot Pin
5 11142 Retaining Ring for Pivot Pin
6 14434 Brass Bushing
9 14877 Aluminum Bulletproof 144" Length
9 13633 Aluminum Bulletproof 168" Length
9 13722 Aluminum Bulletproof 192" Length
9 14801 Aluminum Bulletproof 210" Length
9 13723 Aluminum Bulletproof 240" Length
10 14521 Cross Tube for a 96" Wide Trailer
10 14522 Cross Tube for a 102" Wide Trailer
12 11177 Aluminum Stop Bracket with Rubber Bumper
13 14759 Arm Hold Down Bracket
15 13632 3" Rubber Tarp Centering Flange

*see "Additional Photos" above for diagram
