5-Spring Aluminum Arm Kit (Pin to Pin) - Tarp Bow and Pivot Pin Sets

5-Spring Aluminum Arm Kit (Pin to Pin) - Tarp Bow and Pivot Pin Sets
In Stock. Expected to ship tomorrow.
Item #: 9477
Price:
Add To Cart
5-Spring Aluminum Arm Kit (Pin to Pin) - Tarp Bow and Pivot Pin Sets
Additional Photos
5-Spring Aluminum Arm Kit (Pin to Pin) - Tarp Bow and Pivot Pin Sets
5-Spring Aluminum Arm Kit (Pin to Pin) - Tarp Bow and Pivot Pin Sets
Item #: 9477
Price:
Qty:
Add To Cart
In Stock. Expected to ship tomorrow.

5-Spring Dump Truck Tarp Systems are ideal for use on trailers 24' to 28' long. This arm kit mounts on the sides of your dump body and replaces everything on the "back half", that is, everything from the pivot pin and springs on one side of the dump bed all the way over and down the other side. Does not include motor or wiring or tarp roller bar.

Arm Kit Includes
  • (2) 4.325" Steel Pivot Pin
  • (2) 84" Lower aluminum arms
  • (8) Spiral torsion springs
  • (4) Stainless steel bushings for pivot pin
  • (2) External Retaining Rings
  • (2) 95" Aluminum side arms
  • (1) 103" Aluminum cross tube
  • (2) 90-degree corners
  • (2) plastic tarp centering flanges
  • all mounting hardware

    • Does not include roller, motor, switch kit, or wire.

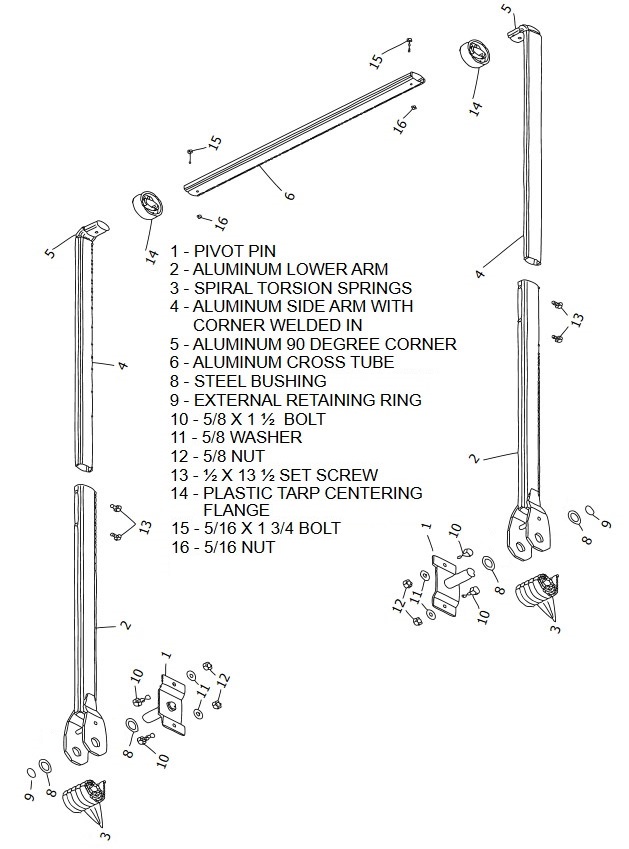

    Parts Diagram Breakdown

  • 1 - 5-Spring Pivot Pin, 4.325" for Side Mount Tarp System
  • 2 - 5-Spring Lower Aluminum Arm, 84"
  • 3 - Flat Coil Spiral Torsion Spring
  • 4 - Aluminum Tarp Arm 95"
  • 5 - 90 Degree Corner for Aluminum Tarp Systems
  • 6 - Aluminum Cross Tube 103"
  • 8- Stainless Steel Bushing for Pivot Pin
  • 9 - External Retaining Ring (1-1/4")
  • 10 - 1/2" x 1-1/2" Bolt
  • 11 - 1/2" Washer
  • 12 - 1/2" Nylock Nut
  • 13 - 1/2"-13 x 1/2" Set Screw
  • 14 - Plastic Tarp Centering Flange for Aluminum Systems
  • 15 - 5/16" x 1-3/4" Bolt
  • 16 - 5/16" Nylon Nut

    • ">

    Please feel free to Contact Us with any Questions. Thank You!
