Underbody Tarp Arm Kit for Trailers 28' - 38' Long

Name: Underbody Tarp Arm Kit for Trailers 28' - 38' Long
SKU: 9475
Price: 999.00 USD
Availability: InStock

In Stock. Expected to ship tomorrow.

Item #: 9475

Price: $999.00

Underbody Tarp Arm Kit for Trailers 28 - 38 Long

Additional Photos

Documents

Underbody Tarp Arm Kit for Trailers 28' - 38' Long

Item #: 9475

Price:	$999.00
Qty:

In Stock. Expected to ship tomorrow.

This arm kit features underbody-mounted single-coil springs and is suitable for dump beds 28' to 38' long.

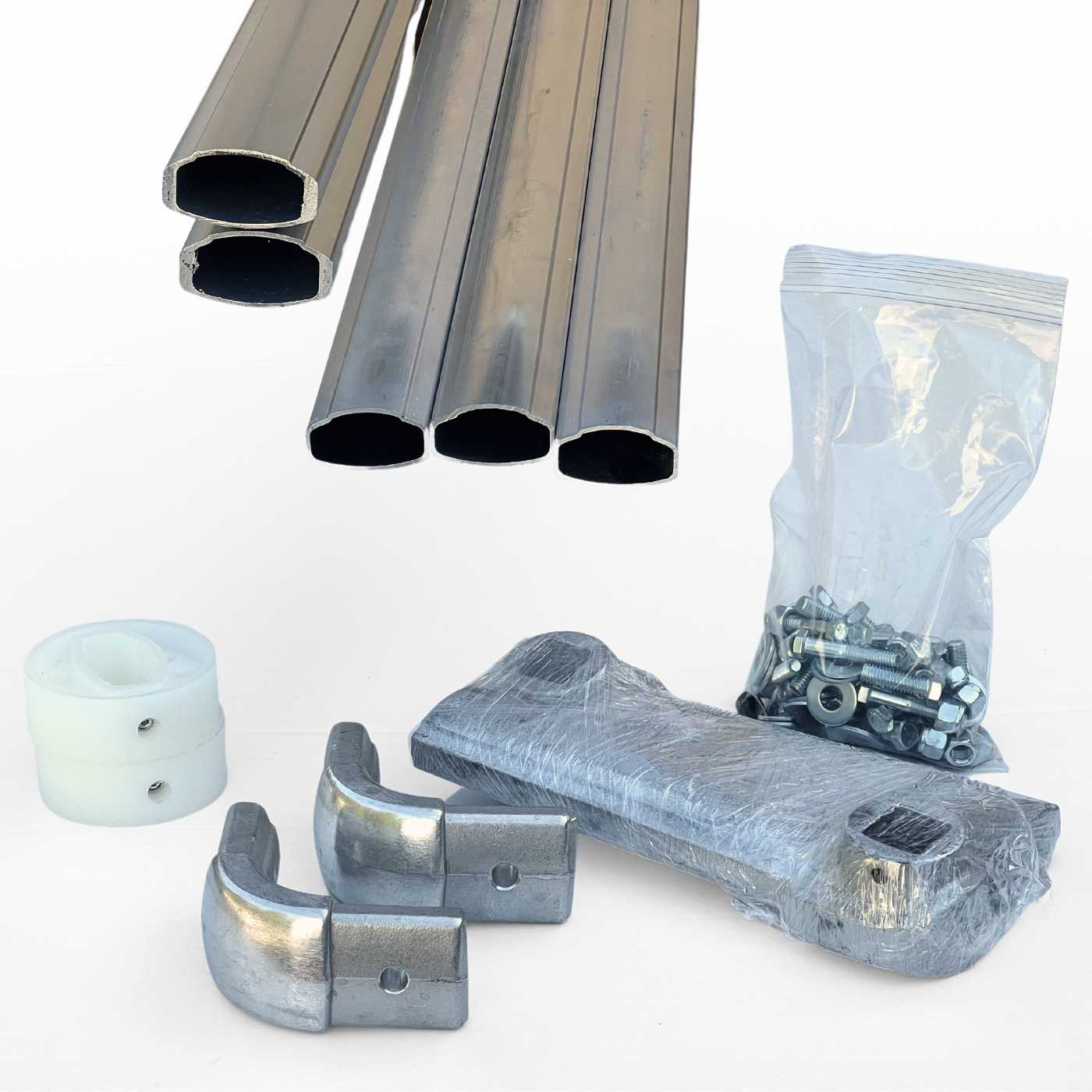

Arm Kit Includes

(1) Driver Side Underbody Spring Assembly
(1) Passenger Side Underbody Spring Assembly

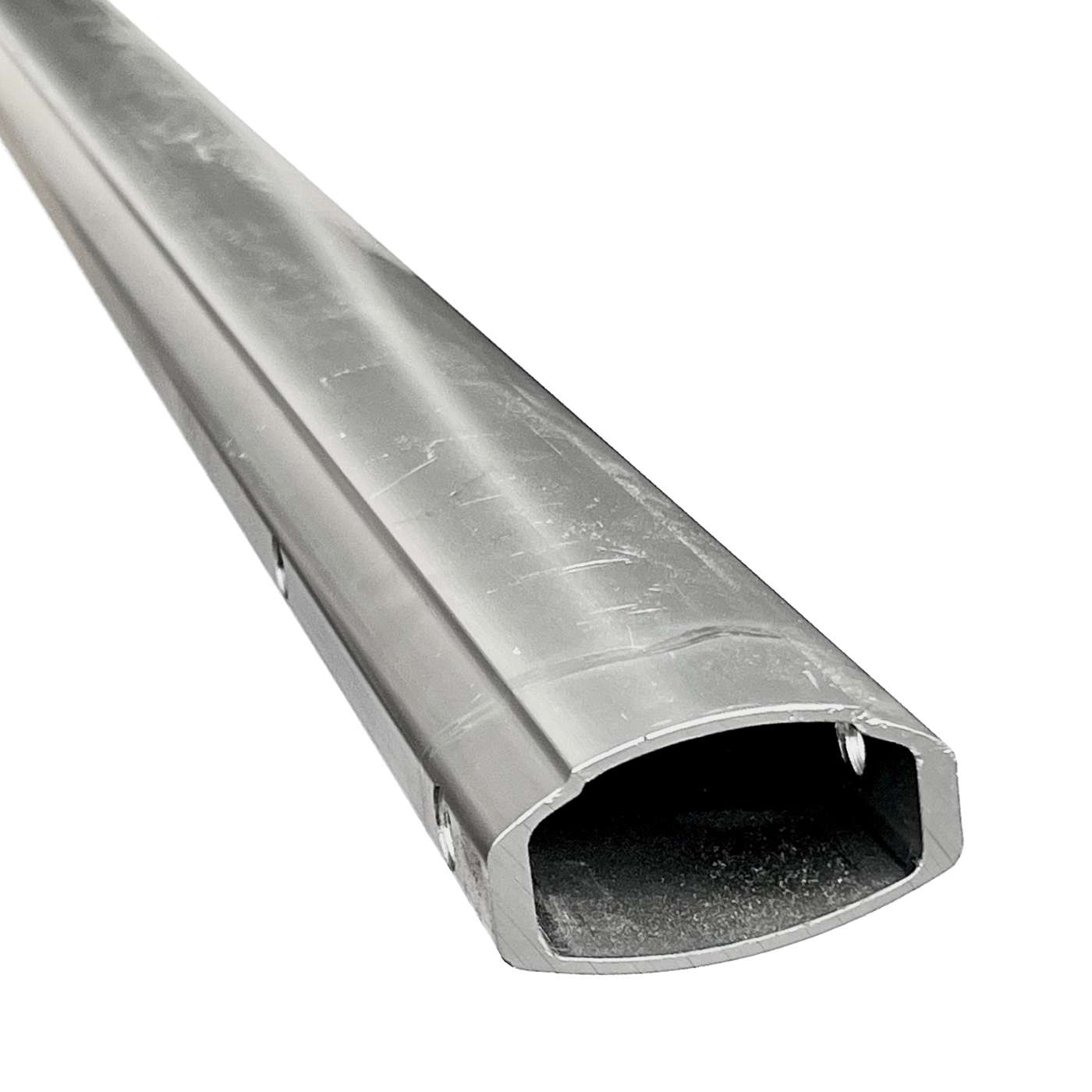

(2) 143" Aluminum Lower Arms
(3) 103" Aluminum Cross Tube /Side Arms
(2) Aluminum 90 Degree Corners
(2) Underbody Aluminum Pivot Castings
All necessary installation hardware

Does not include roller, motor, switch kit, optional 30/45 degree elbows, or wire.

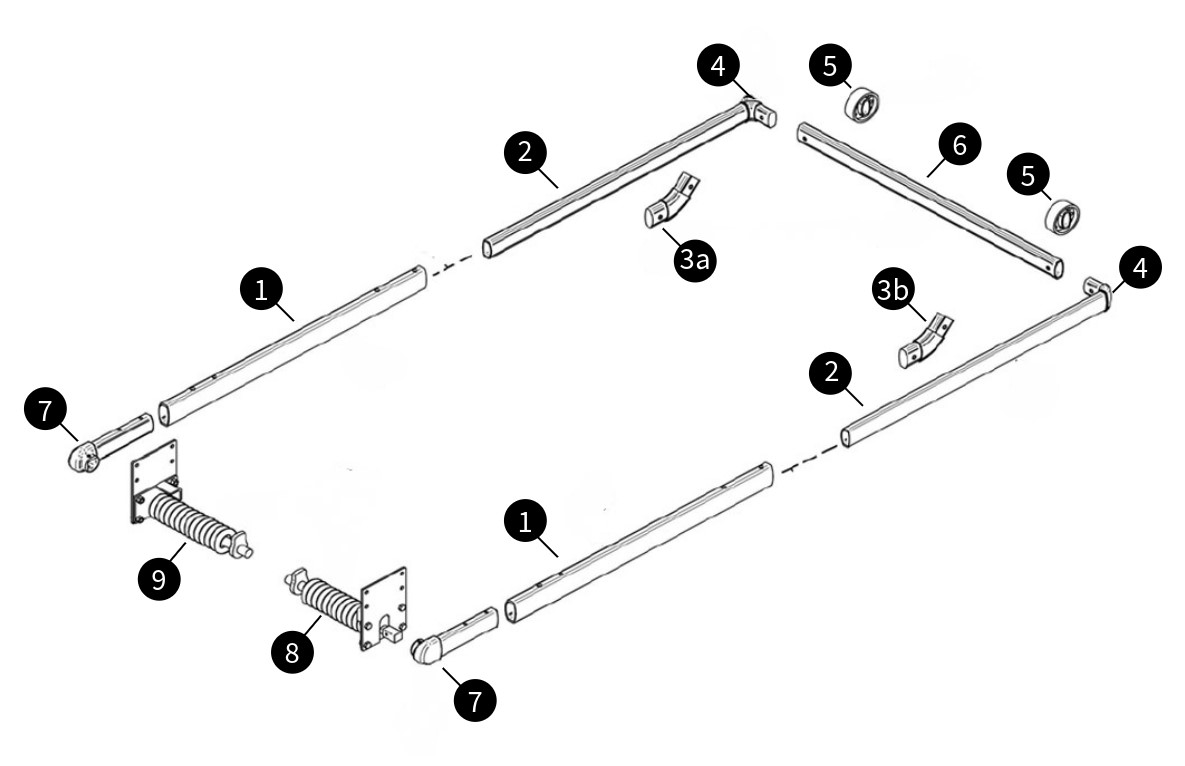

Parts Diagram Breakdown

1 - Aluminum Underbody Lower Arm, 143"

2 -103" Side Arm

3 - Optional Elbows (Creates bends in upper arms, not included)

3a - Aluminum 30 Degree Bend Elbows

3b - Aluminum 45 Degree Bend Elbows

4 - 90 Degree Corner

5 - Plastic Tarp Centering Flange

6- 103" Aluminum Cross Tube

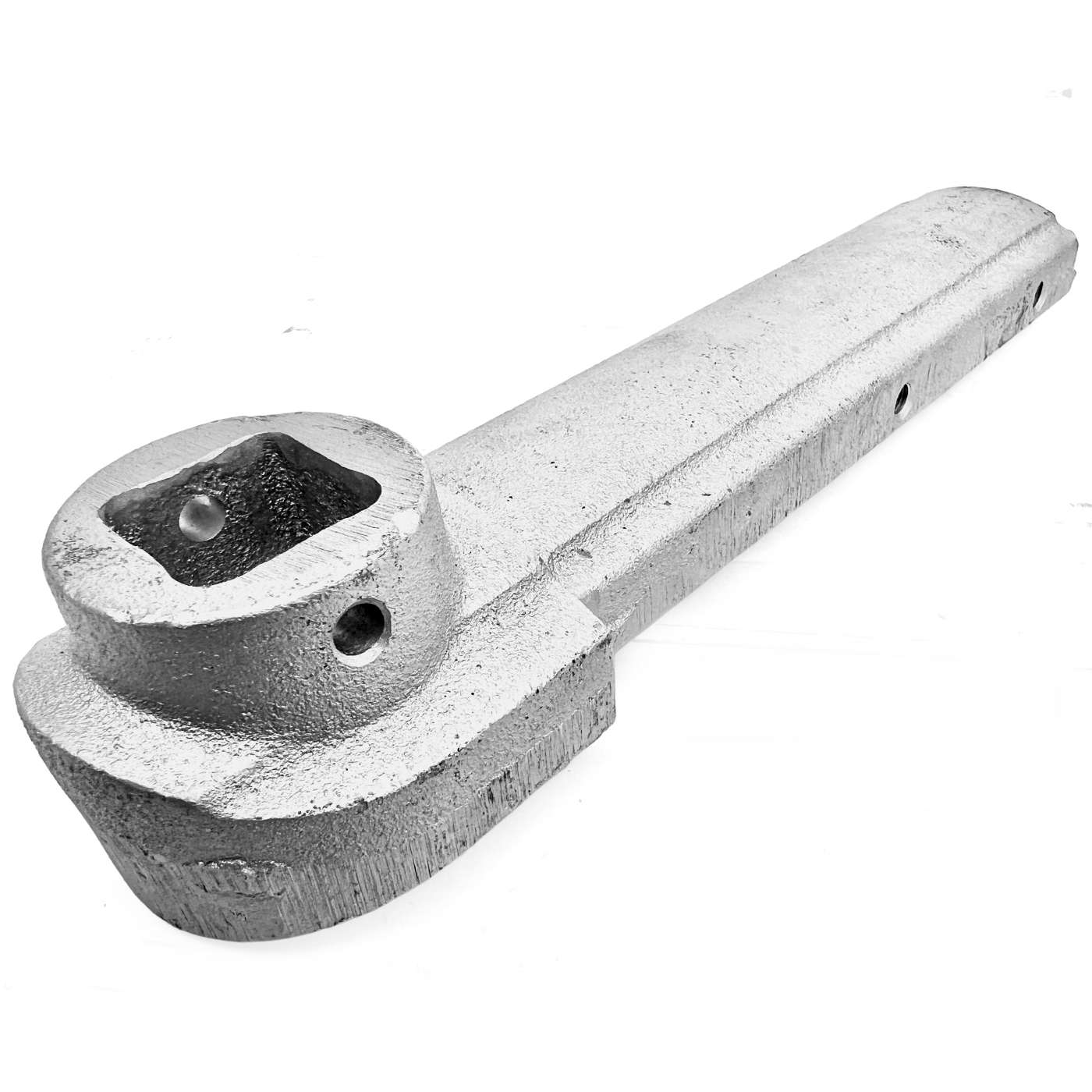

7 -Underbody Aluminum Pivot Casting

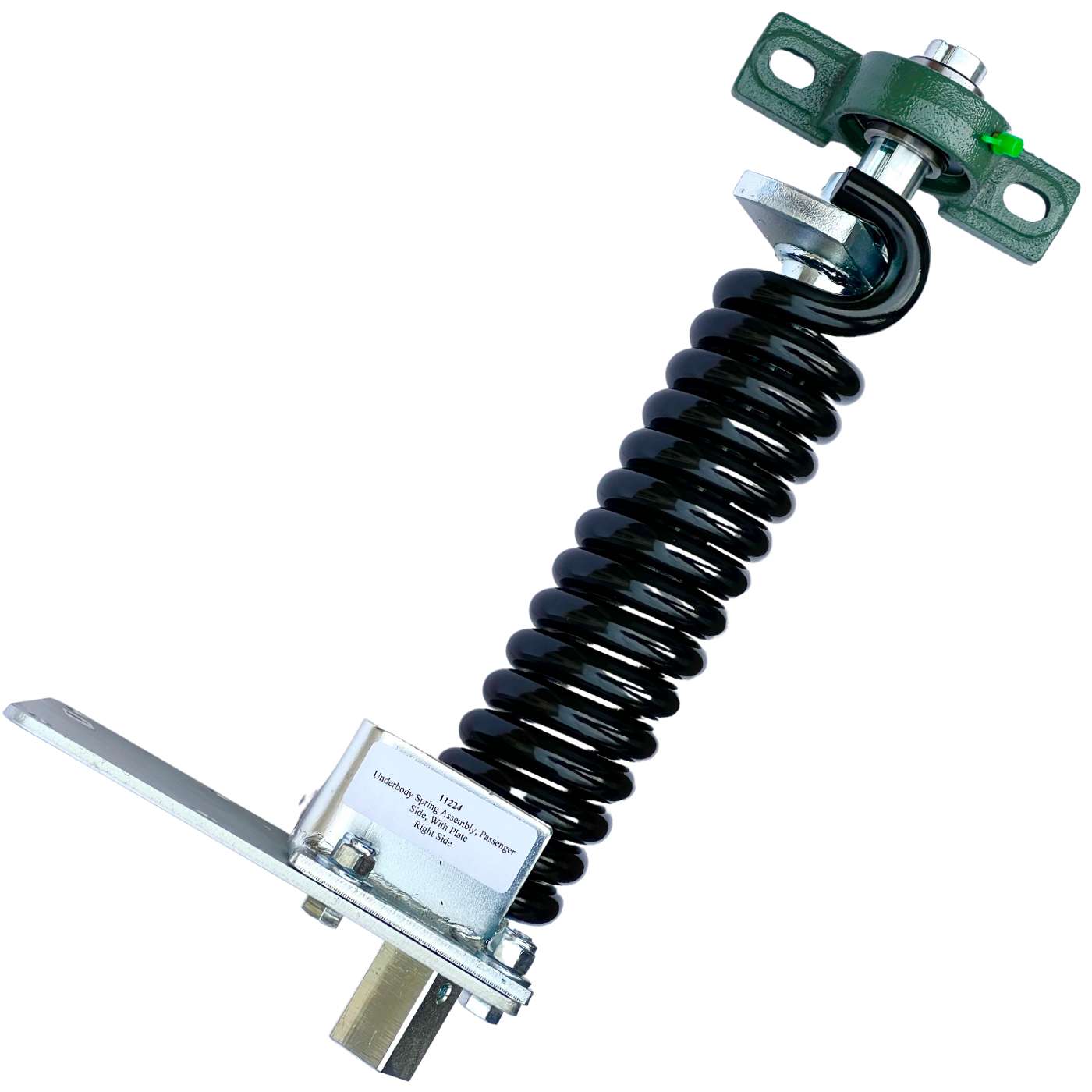

8 - Underbody Spring Assembly, Passenger Side

9 - Underbody Spring Assembly, Driver Side

Please feel free to Contact Us with any Questions. Thank You!
