4 Spring Aluminum Arm Kit (Pin to Pin) - Tarp Bow and Pivot Pin Sets for widths up to 95"

4 Spring Aluminum Arm Kit (Pin to Pin) - Tarp Bow and Pivot Pin Sets for widths up to 95"
In Stock. Expected to ship Saturday. (Holiday delays may apply)
Item #: 9466
Price:
Add To Cart
Additional Photos
4 Spring Aluminum Arm Kit (Pin to Pin) - Tarp Bow and Pivot Pin Sets for widths up to 95"
Item #: 9466
Price:
Qty:
Add To Cart
In Stock. Expected to ship Saturday. (Holiday delays may apply)

This is what you need if you're replacing the framework for the aluminum external mount system of your 10' - 24' dump truck. Sometimes called an "arm kit," it has everything you need to replace your system parts from pivot pin to pivot pin.

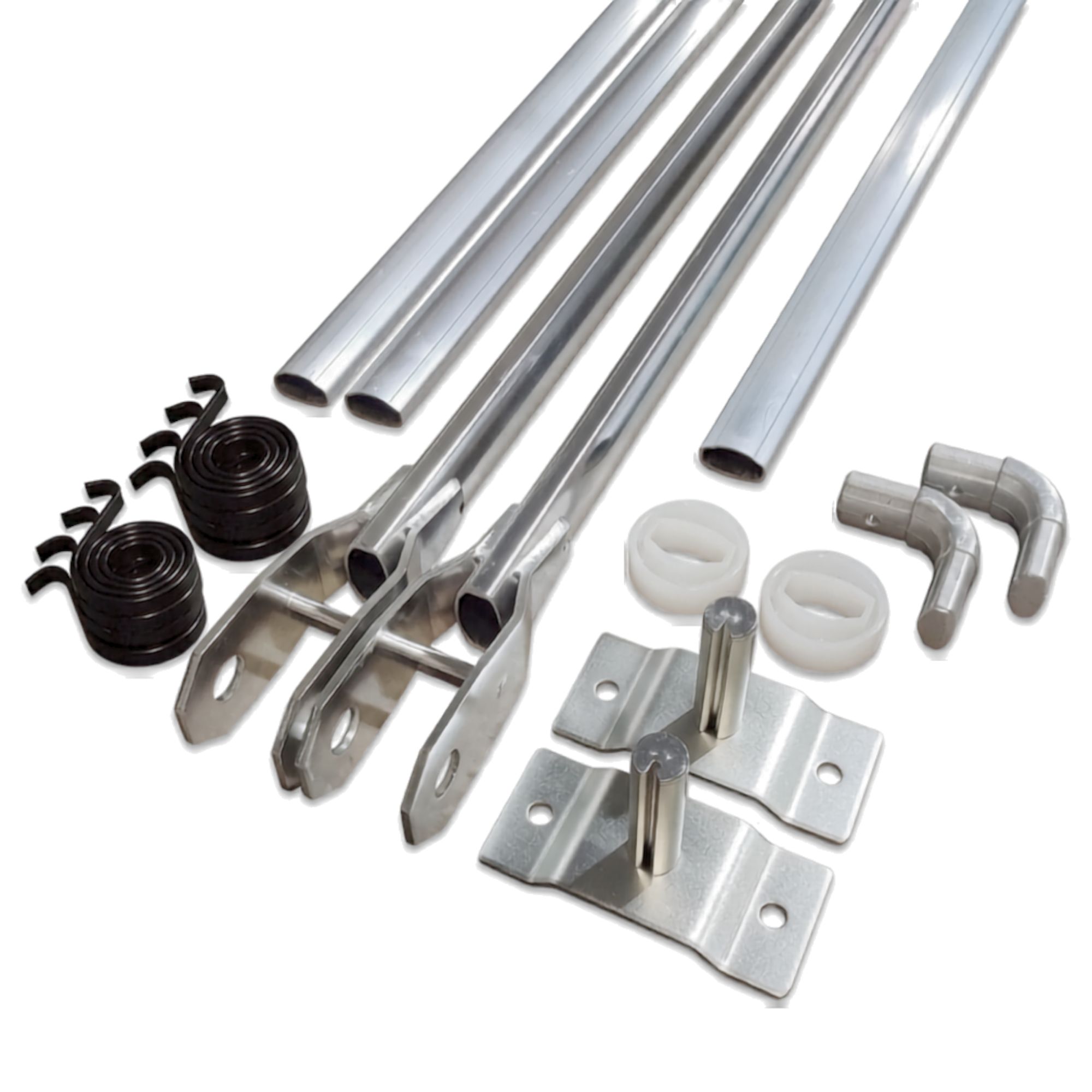

Arm Kit Includes
  • (2) 3.7" Steel Pivot Pins
  • (2) 78" Lower aluminum arms
  • (8) Spiral torsion springs
  • (4) Stainless steel bushings for pivot pin
  • (2) External Retaining Rings
  • (2) 95" Aluminum side arms

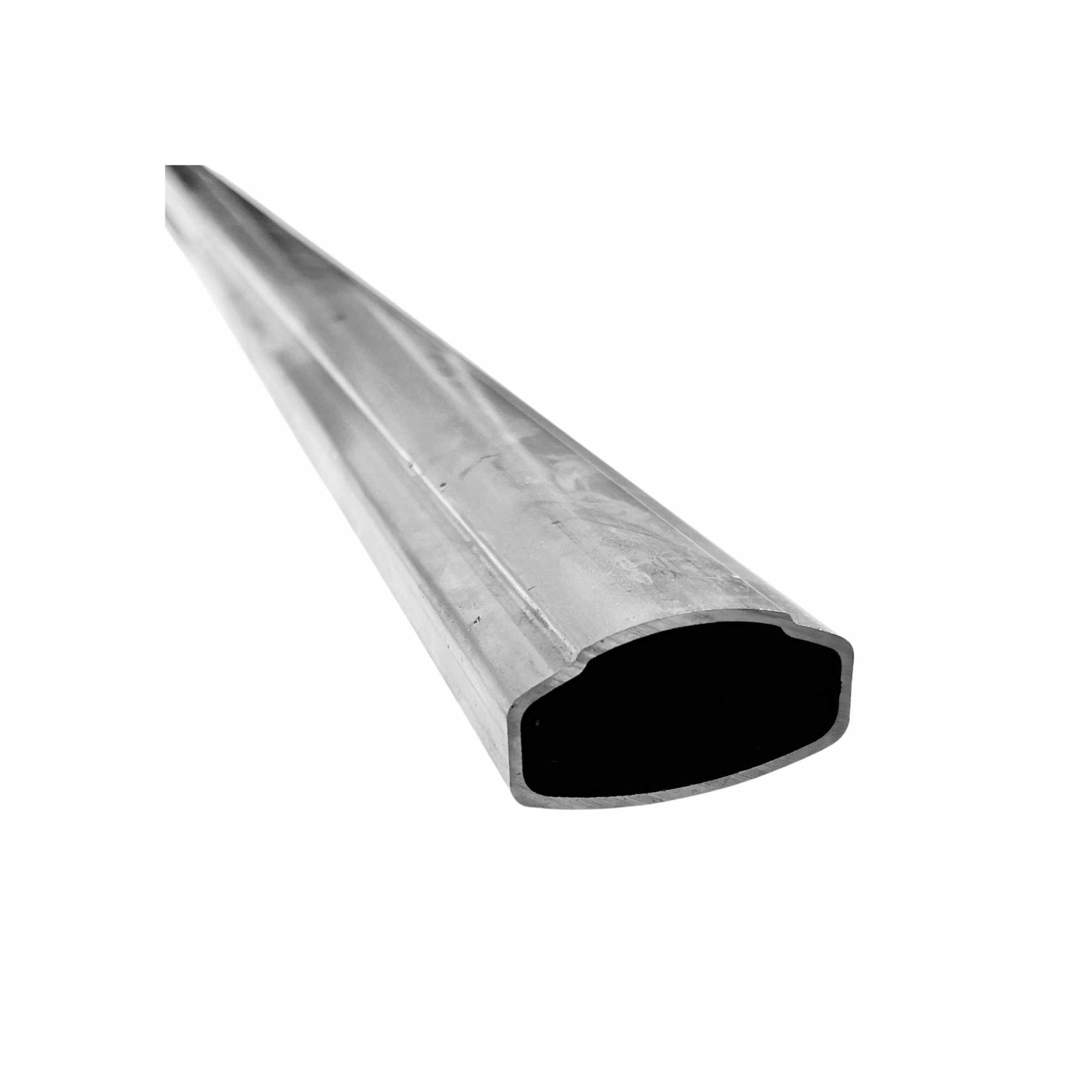

  • (1) 95" Aluminum cross tube
  • (2) 90-degree corners

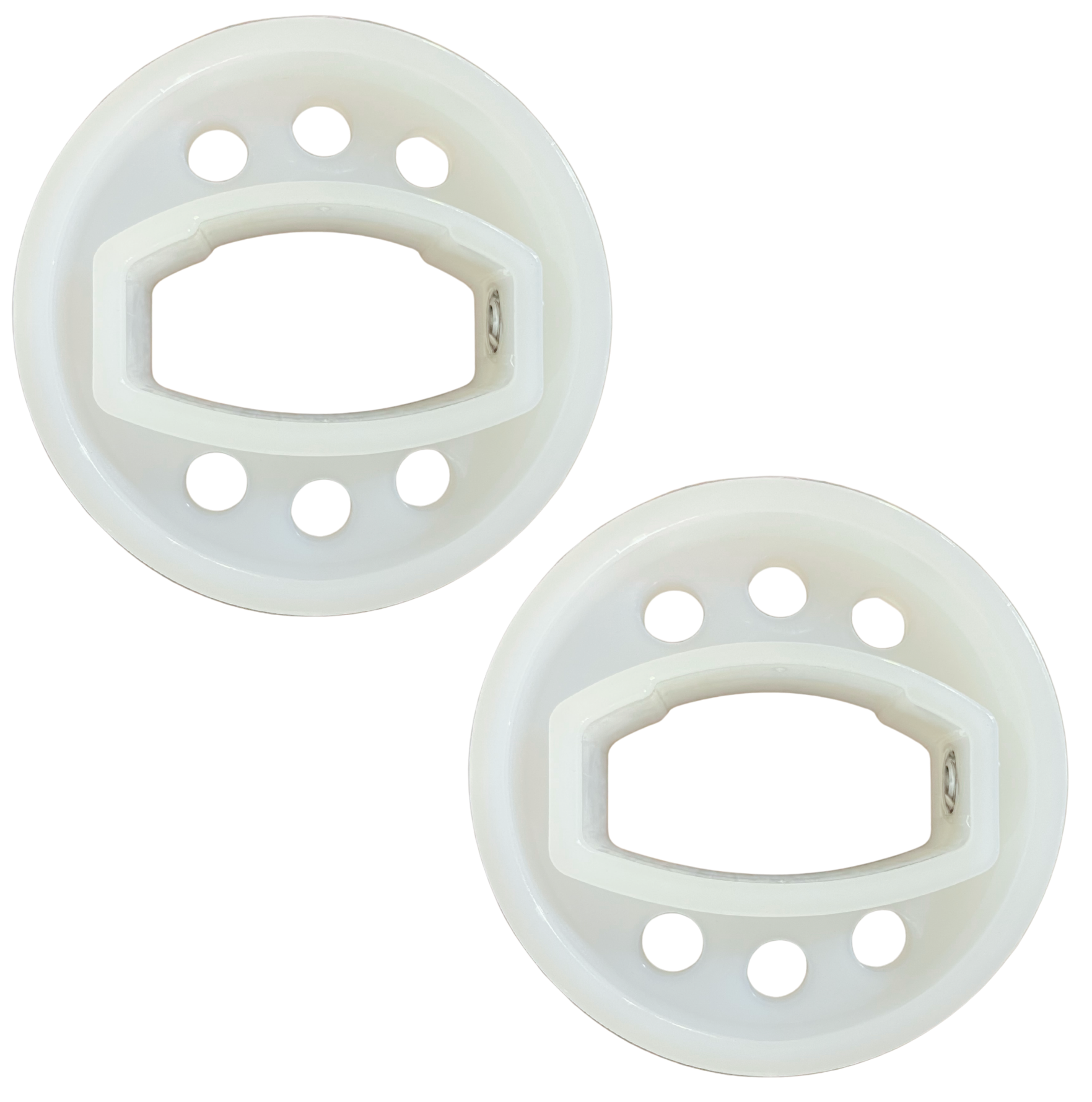

  • (2) plastic tarp centering flanges

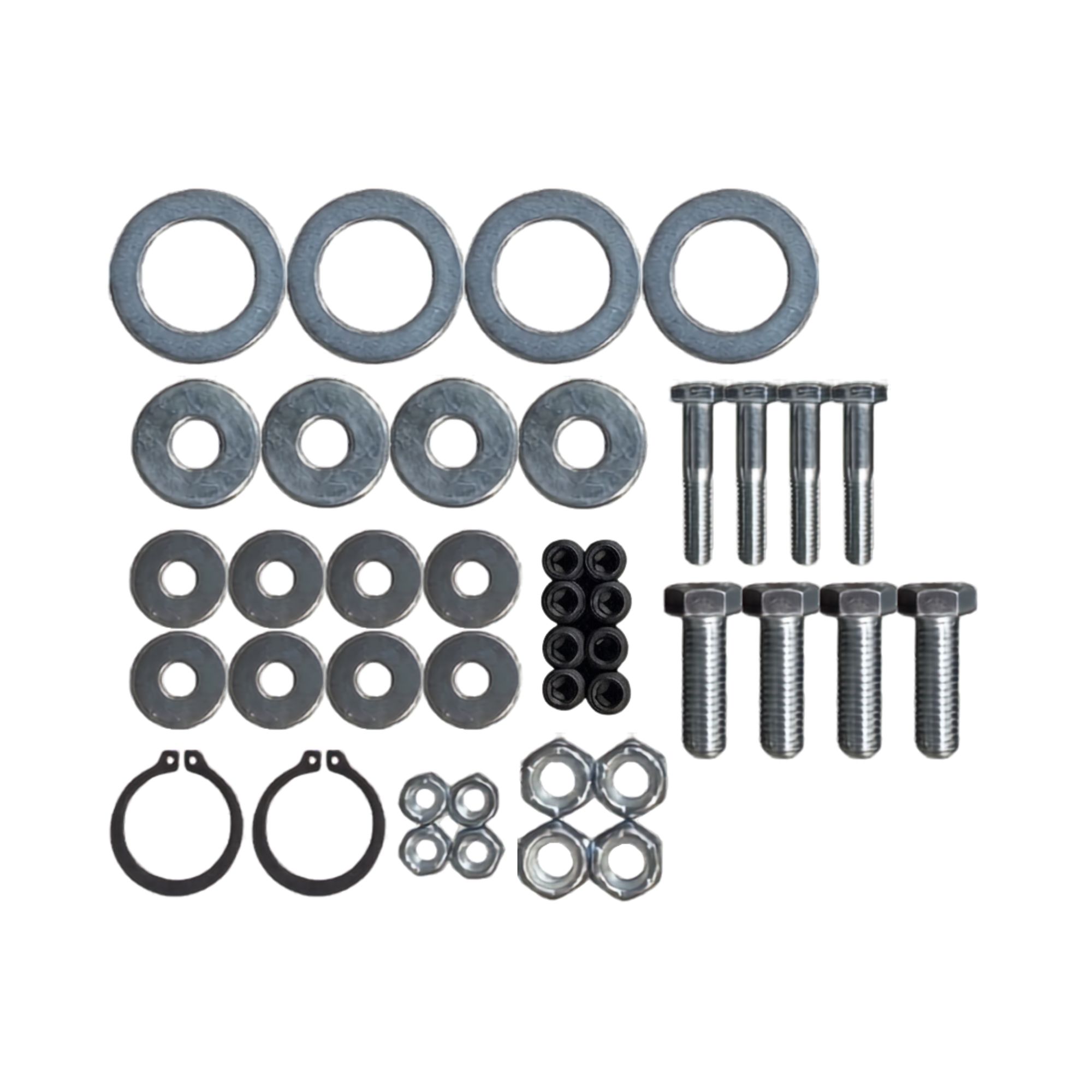

  • all mounting hardware
  • Does not include roller, motor, switch kit, or wire.

    This arm kit includes a 95" cut-down to cross tube to save on shipping for dump bodies under 8 feet. If you need the full-size 103" cross tube, use this arm kit instead.

    Parts Diagram Breakdown

  • 1 - 4-Spring Pivot Pin 3.7" for Side Mount Tarp System
  • 2 - 4-Spring Lower Aluminum Arm, 78"
  • 3 - Flat Coil Spiral Torsion Spring
  • 4 - Aluminum Tarp Arm 95"
  • 5 - 90 Degree Corner for Aluminum Tarp Systems
  • 6 - Aluminum Cross Tube 95"
  • 8- Stainless Steel Bushing for Pivot Pin
  • 9 - External Retaining Ring (1-1/4")
  • 10 - 1/2" x 1-1/2" Bolt
  • 11 - 1/2" Washer
  • 12 - 1/2" Nylock Nut
  • 13 - 1/2"-13 x 1/2" Set Screw
  • 14 - Plastic Tarp Centering Flange for Aluminum Systems
  • 15 - 5/16" x 1-3/4" Bolt
  • 16 - 5/16" Nylon Nut

  • ">

    Please feel free to Contact Us with any Questions. Thank You!
