Flatbed Winch (Double L Style) 5,500lb WLL
Flatbed Winch (Double L Style) 5,500lb WLL
Item #: 9042
|
| Price: |
|
|
|
In Stock. Expected to ship today.
Flatbed Winch (Double L Style) 5,500lb WLL
In Stock. Expected to ship today.

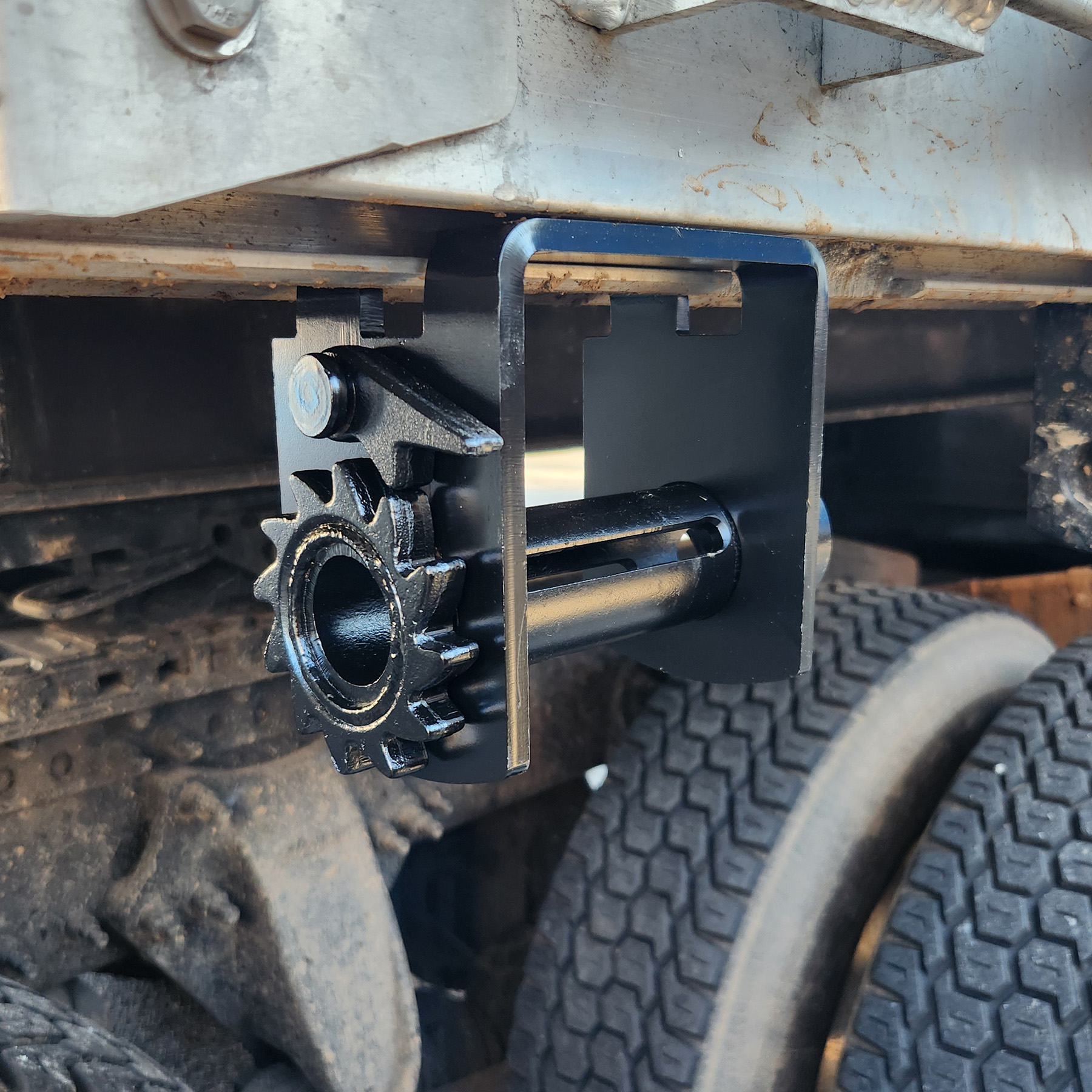

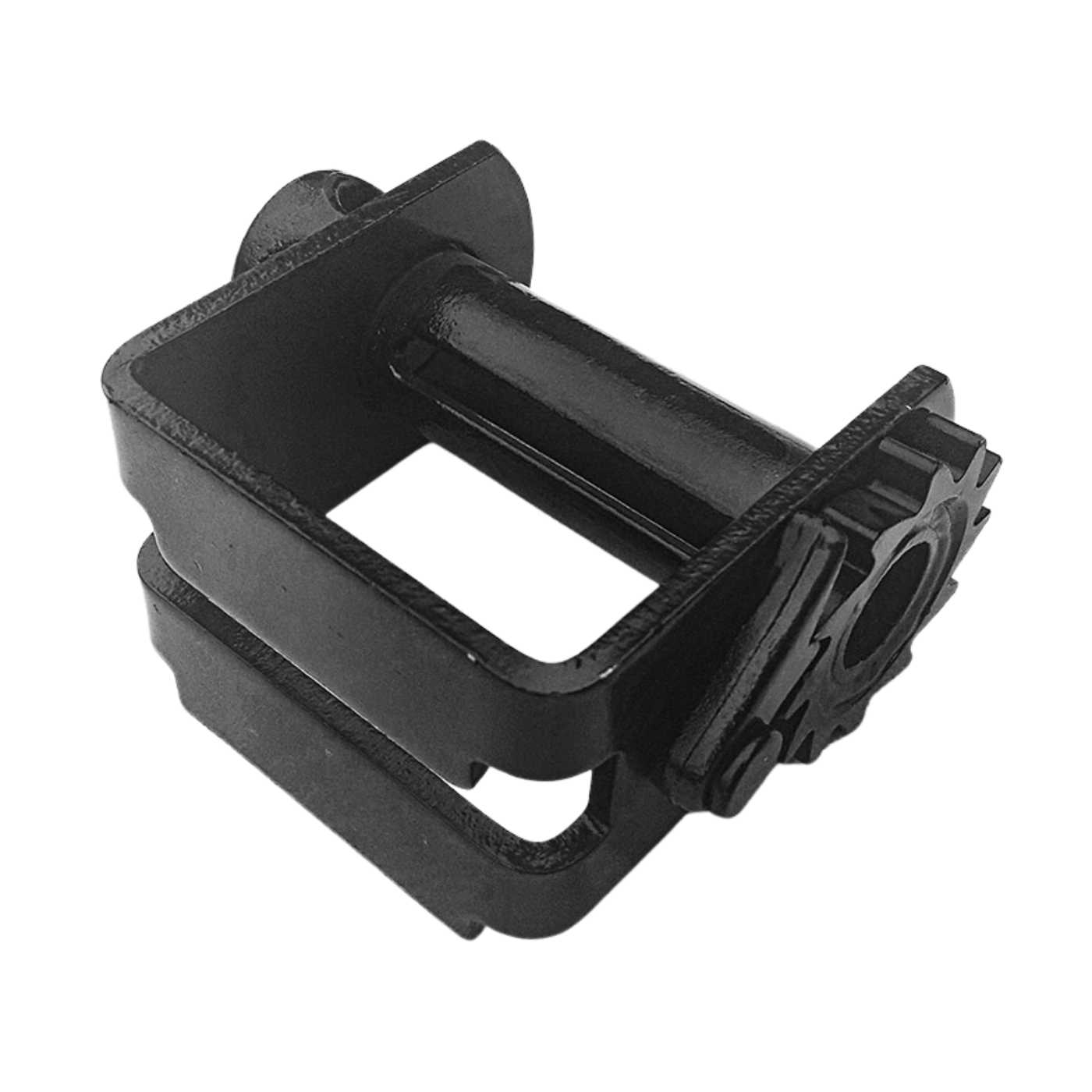

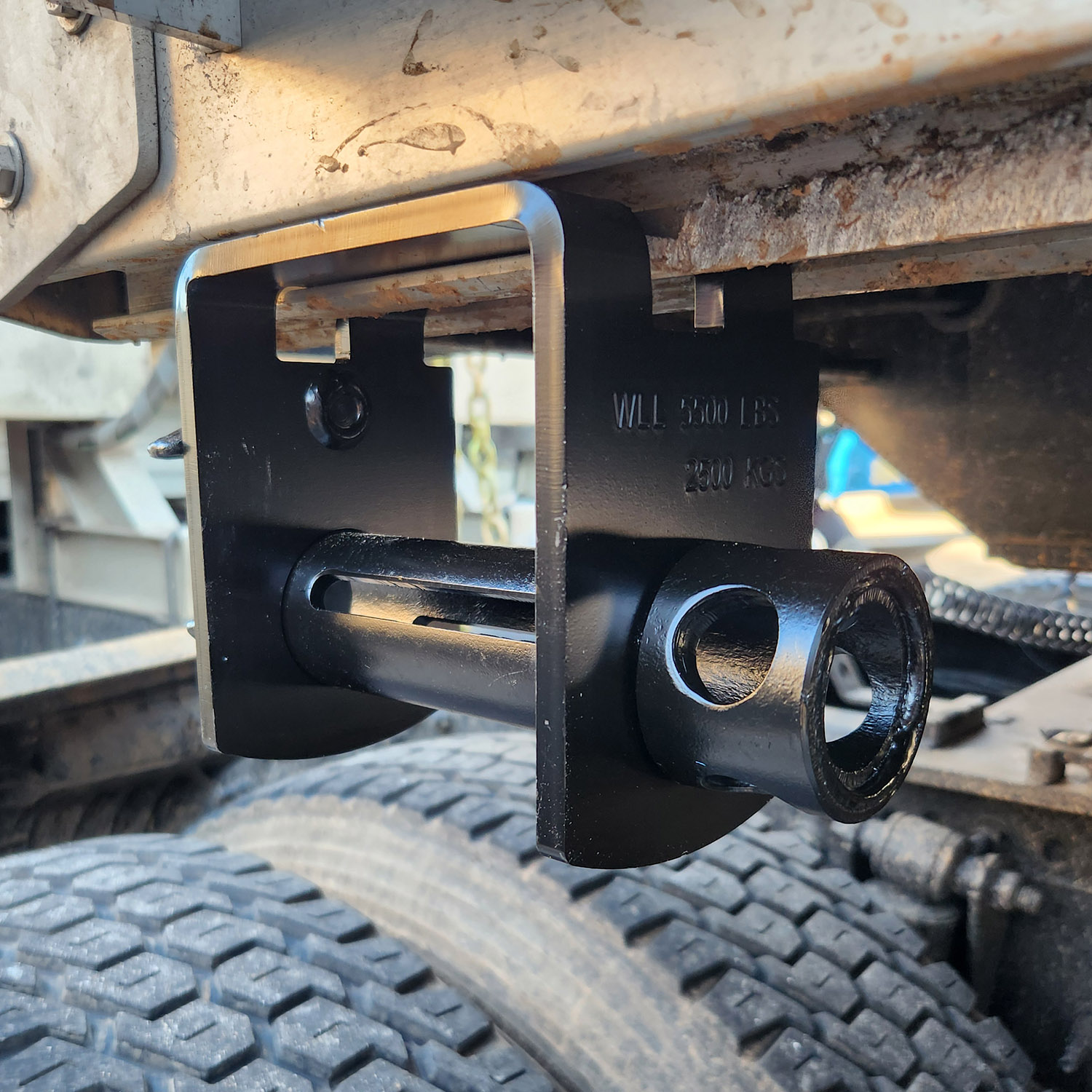

The Double L Sliding Winch is a favorite for flatbed trailers. The 4" slot accommodates up to 30' of rolled 2",3", or 4" straps. Under tension, the winch locks in place. The "Double L" name refers to the shape of the track's cross-section, which resembles two adjacent 'L' shapes. This design ensures a secure fit for the winch while allowing for easy adjustment along the track.

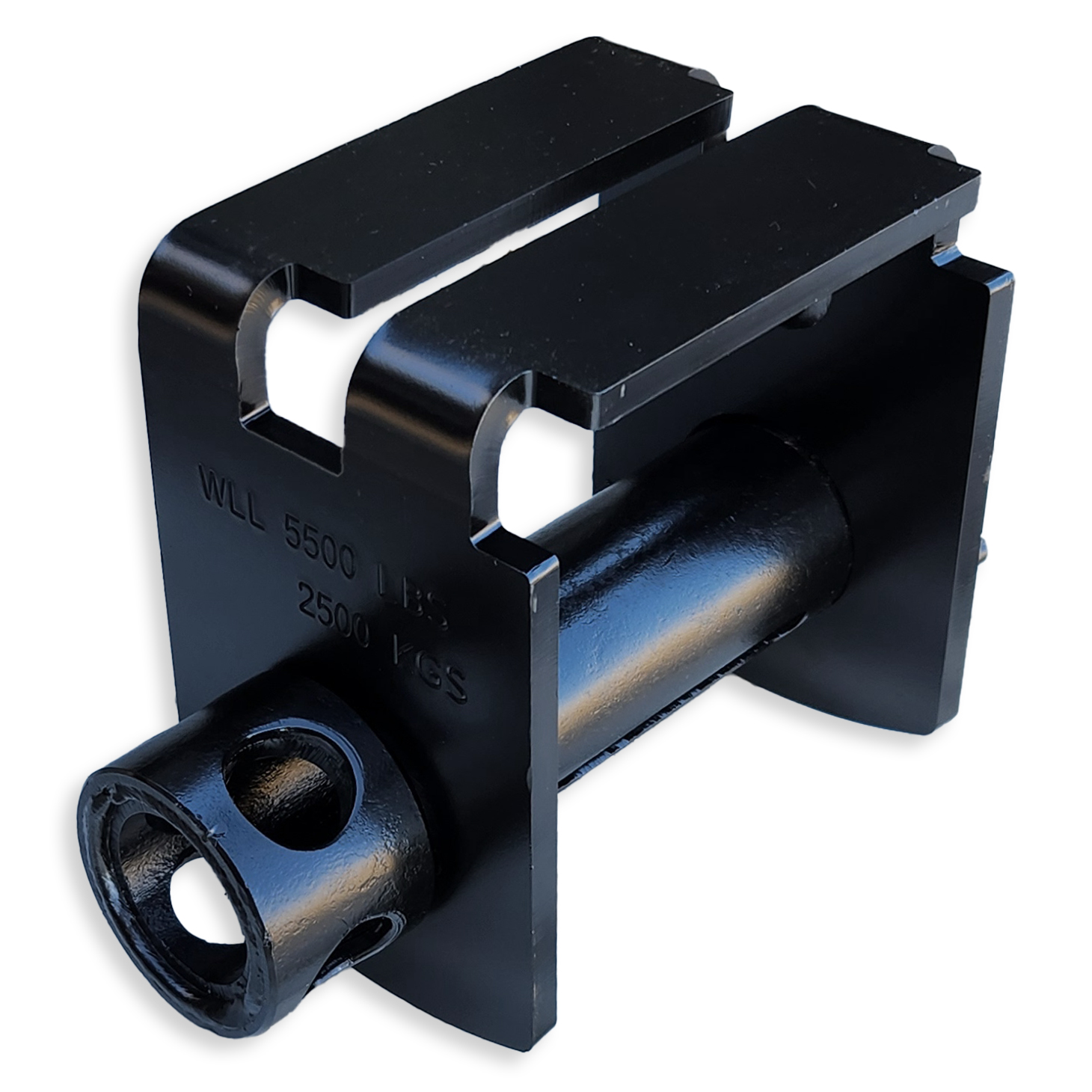

The heavy-duty 5/16" black-coated steel frame is rated for a 5,500 working load limit, which is stamped on the side. The spool, ratchet, and locking pawl securely hold your strap in place and maintain tension while you increase the tie-down pressure using a winch bar.
Double L Winch Specifications:
- Frame Width: 5-5/8"
- Frame Steel Thickness: 5/16"
- Overall Width: 8"
- Overall Depth: 4"
- Overall Height: 6"
- Clearance Between Spool and Top of Frame: 2-13/16"
- Weight: 7.9 lb
Please feel free to Contact Us with any Questions. Thank You!
