0201-962703 Aero (OEM) Intermediate Bow Car Assembly
Item #: 40837
Part #: 0201-962703

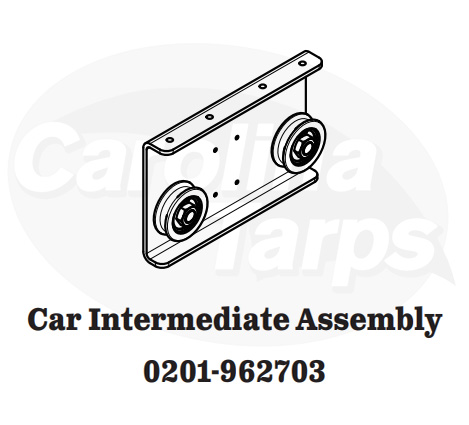

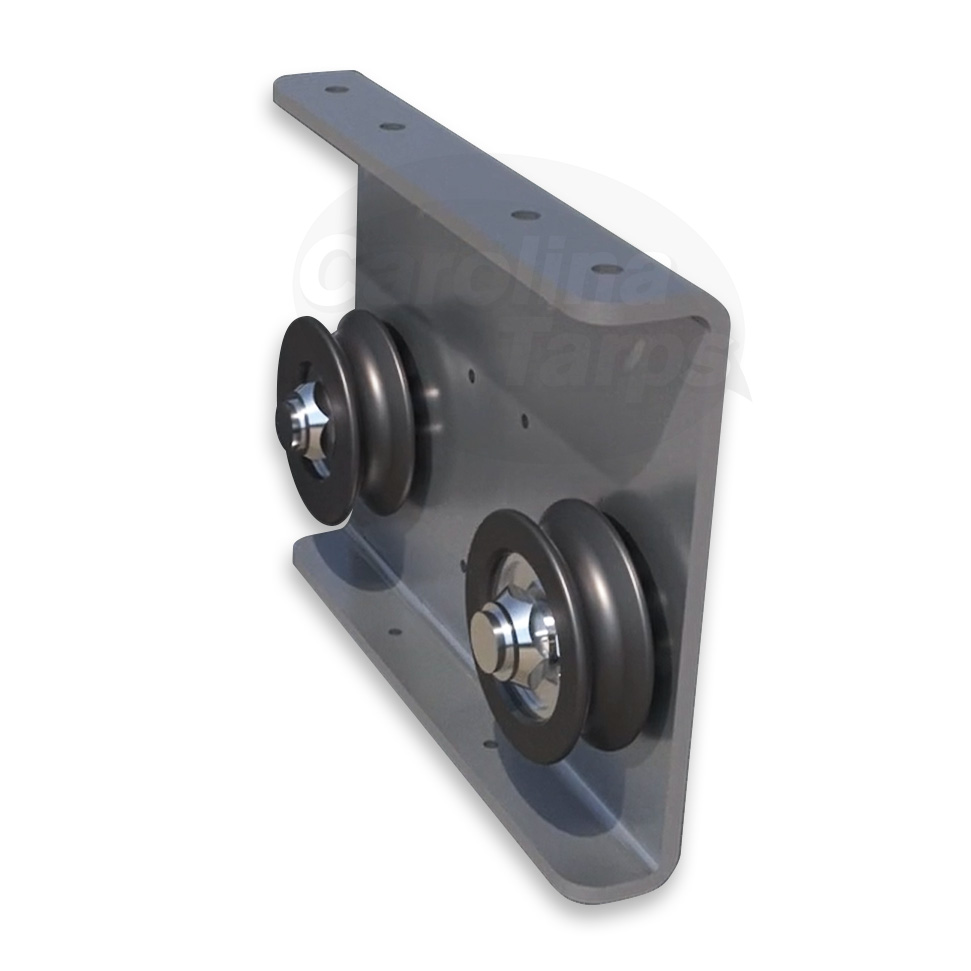

The 0201-962703 intermediate Bow Car Assembly is the sliding bracket that support the structure bow assemblies of the Conestoga 2 tarp system. The
front passenger side,
front driver side,
rear passenger side, and
rear driver side bows require different car assemblies, but this car assembly is for the intermediate bows between the front and rear bows.
Intermediate Bow Car Assembly contains:
Car Assembly Installation Instructions:
1. Make sure the side rails are properly installed, clean and free from debris.
2. Remove the bow stops at the rear of the rails and set them a side.
3. Orient the bow assembly with the trailer so the covered bow (front bow) is toward the front of the trailer and the partially covered bow (rear bow) is toward the rear of the trailer.
4) Use a fork lift with extensions and raise the pre-assembled bow unit.
5) Slide the front bow, intermediate bows, and rear bow off the fork lift extensions and onto the side rails.
6) Use the car locks to keep the assembly from rolling off of the trailer. The locks are located under the tarp material, on each side of the front and rear bows.
Please feel free to Contact Us with any Questions. Thank You!
