Agri-Cover 70476 12V Rocker Switch Kit (switch, 14 ga. wire, solenoid w/ hardware)

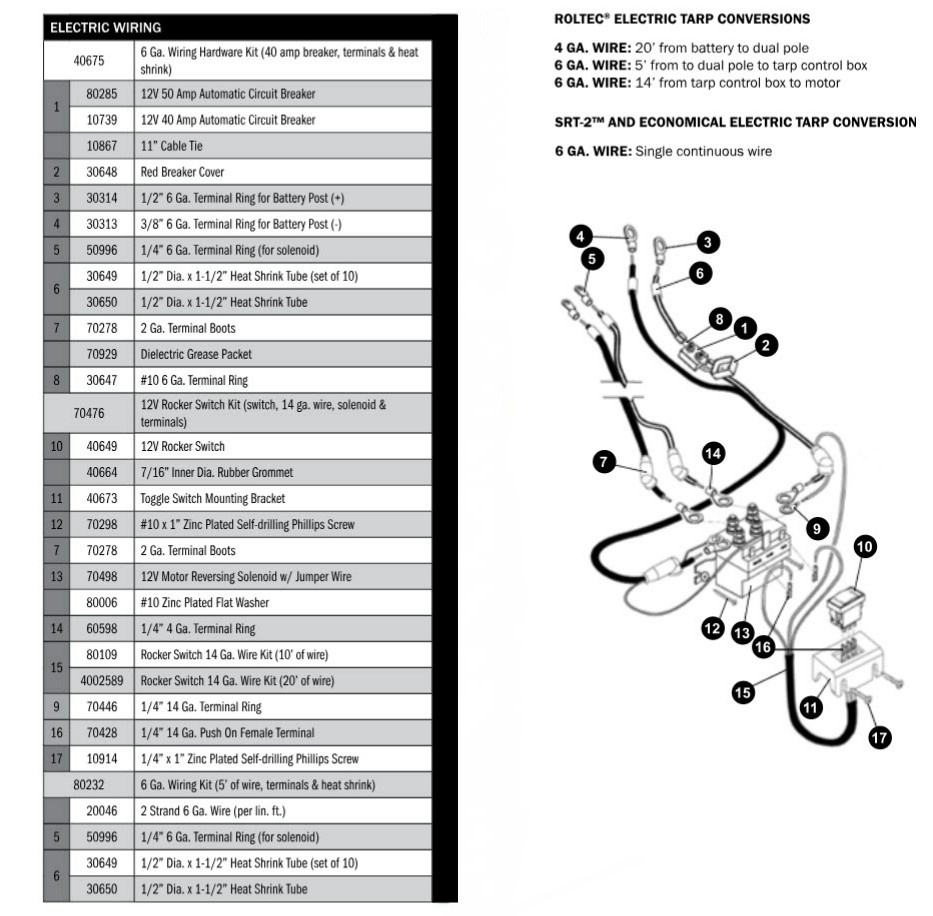

Parts Diagram Breakdown

1 - Circuit Breakers

Agri-Cover 80285 12V 50 Amp Automatic Circuit Breaker (Standard)

Agri-Cover 10739 12V 40 Amp Automatic Circuit Breaker

2 - Agri-Cover 30648 Red Breaker Cover

3 - Agri-Cover 30314 1/2" 6 Ga. Terminal Ring for Battery Post (+)

4 - Agri-Cover 30313 3/8" 6 Ga. Terminal Ring for Battery Post (-)

5 - Agri-Cover 50996 1/4" 6 Ga. Terminal Ring (for solenoid)

6 - Heat Shrink Tube

Agri-Cover 30650 Heat Shrink Tube (Individual piece)

Agri-Cover 30649 Heat Shrink Tube Kit (Set of 10)

7 - Agri-Cover 70278 2 Ga. Terminal Boots

8 - Agri-Cover 30647 #10 6 Ga. Terminal Ring

9 - Agri-Cover 70446 1/4" 14 Ga. Terminal Ring

10 - Agri-Cover 40649 12V Rocker Switch

11 - Agri-Cover 40673 Toggle Switch Mounting Bracket

12 - Agri-Cover 70298 #10 x 1" Zinc Plated Self-drilling Phillips Screw

13 - Agri-Cover 70498 12V Motor Reversing Solenoid w/ Jumper Wire

14 - Agri-Cover 60598 1/4" 4 Ga. Terminal Ring

15 - Wire Kit

Agri-Cover 4002589 Rocker Switch Wire Kit 10' of Wire

Agri-Cover 4002589 Rocker Switch Wire Kit 20' of Wire (Standard)

16 - Agri-Cover 70428 14 Ga. Push on Female Terminal

17 - Agri-Cover 10914 1/4" x 1" Zinc Plated Self-drilling Phillips Screw
