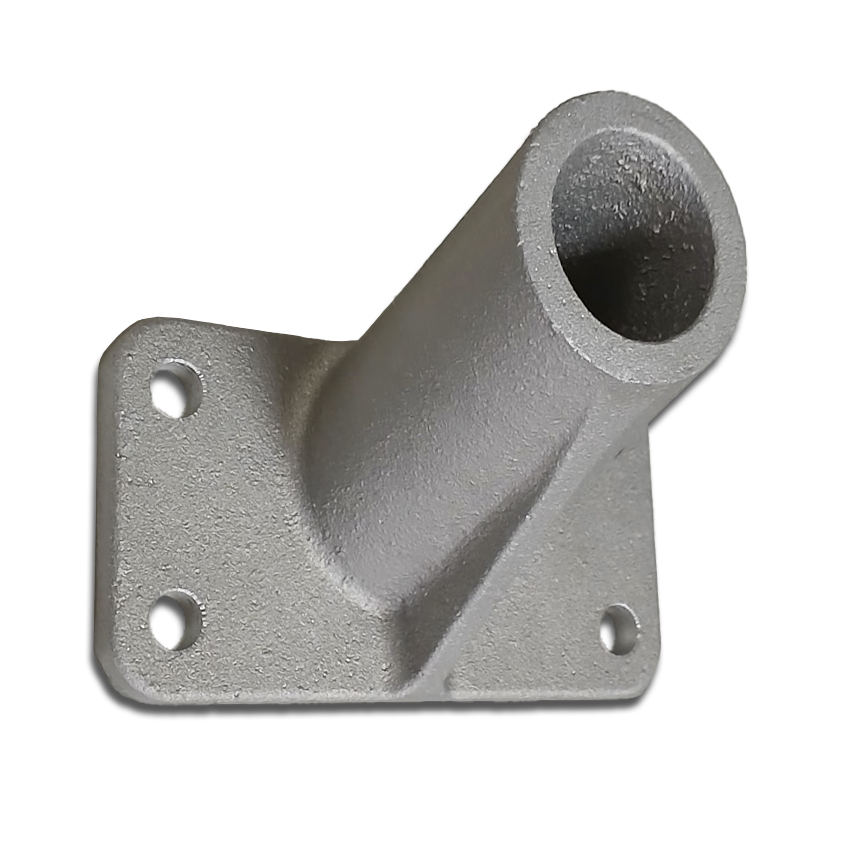

Flex Bow Pocket (1 Aluminum Pocket)

Flex Bow Pocket for installing flex bows on your dump trailer.

Aluminum flex bow pockets can be welded to aluminum trailers or bolted with 3/8" x 1" self-threading bolts (not included). Two pockets are required per flex bow, which are typically installed every 42" down the length of trailer bodies to support side roll tarp systems.

Aluminum Flex Bow Pocket Installation Instructions:

• 1. Clamp bow pocket flush with top rail. Weld in place, or following additional bolt-mounting instructions:

• 2. Use the pocket as a template to mark and drill four 5/16" holes

• 3. Secure with (4) 3/8" x 1" self-threading bolts (not included).

• 4. To ease bow insertion, leave the screws loose until the bow is inserted into the pocket, and then fully tighten.

Please feel free to Contact Us with any Questions. Thank You!
