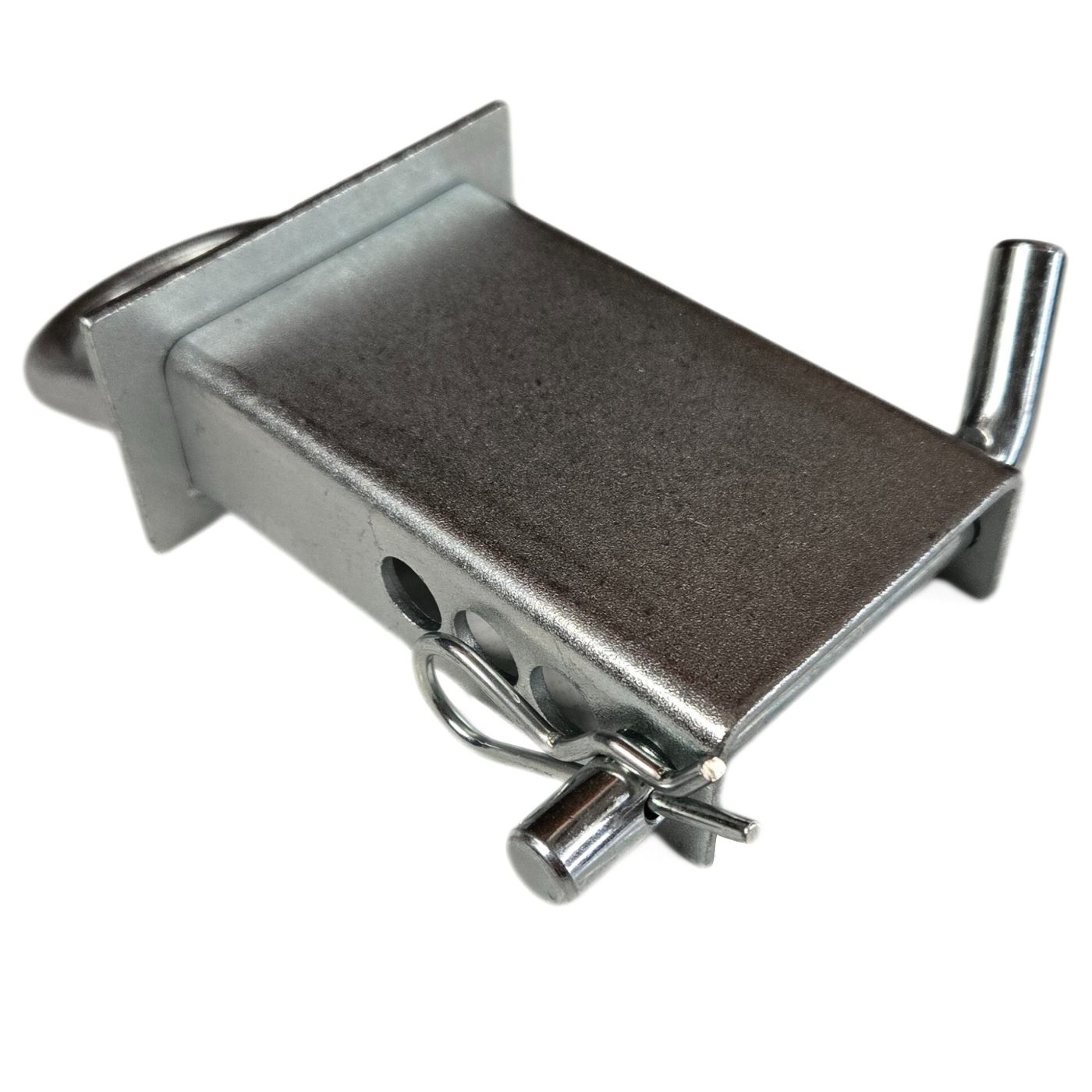

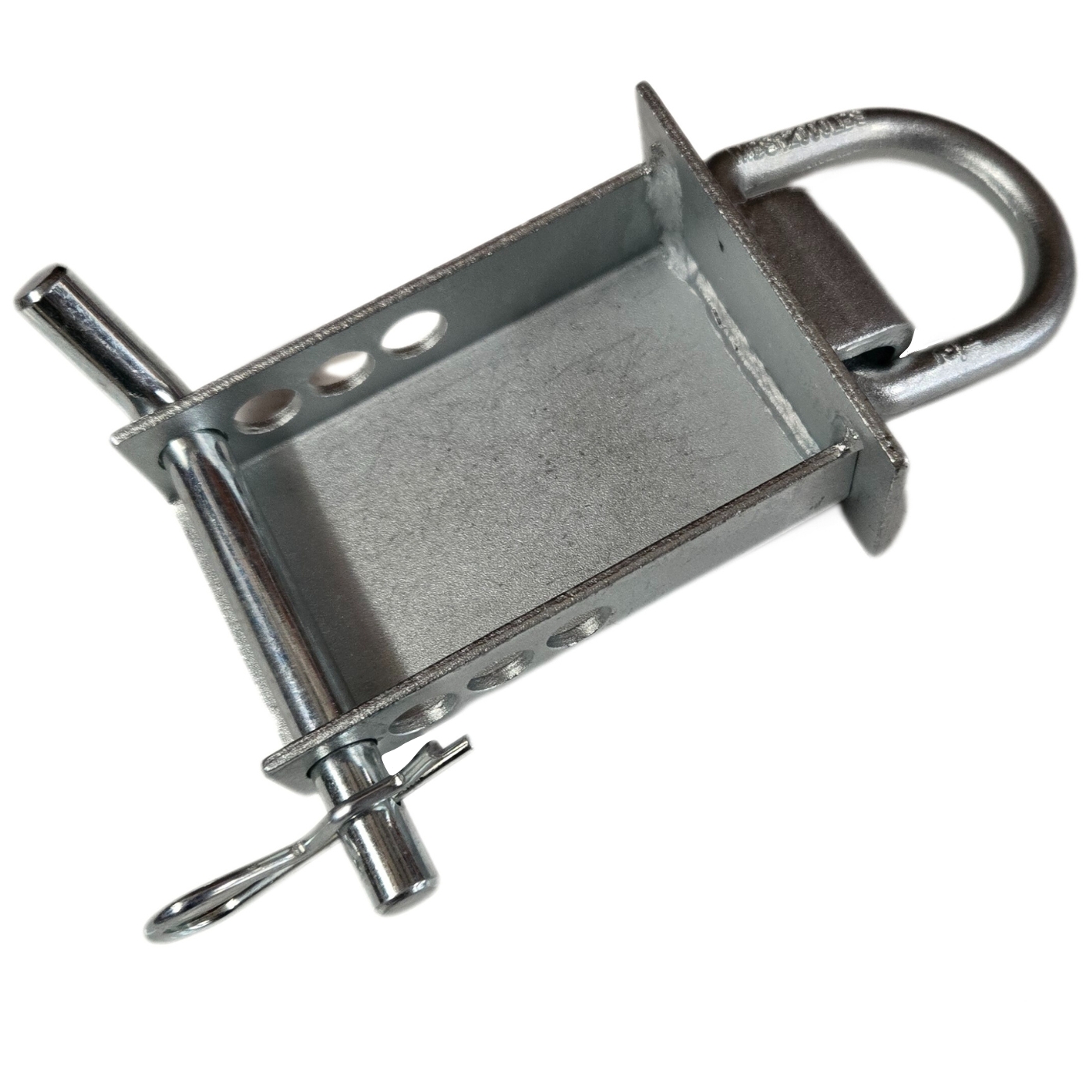

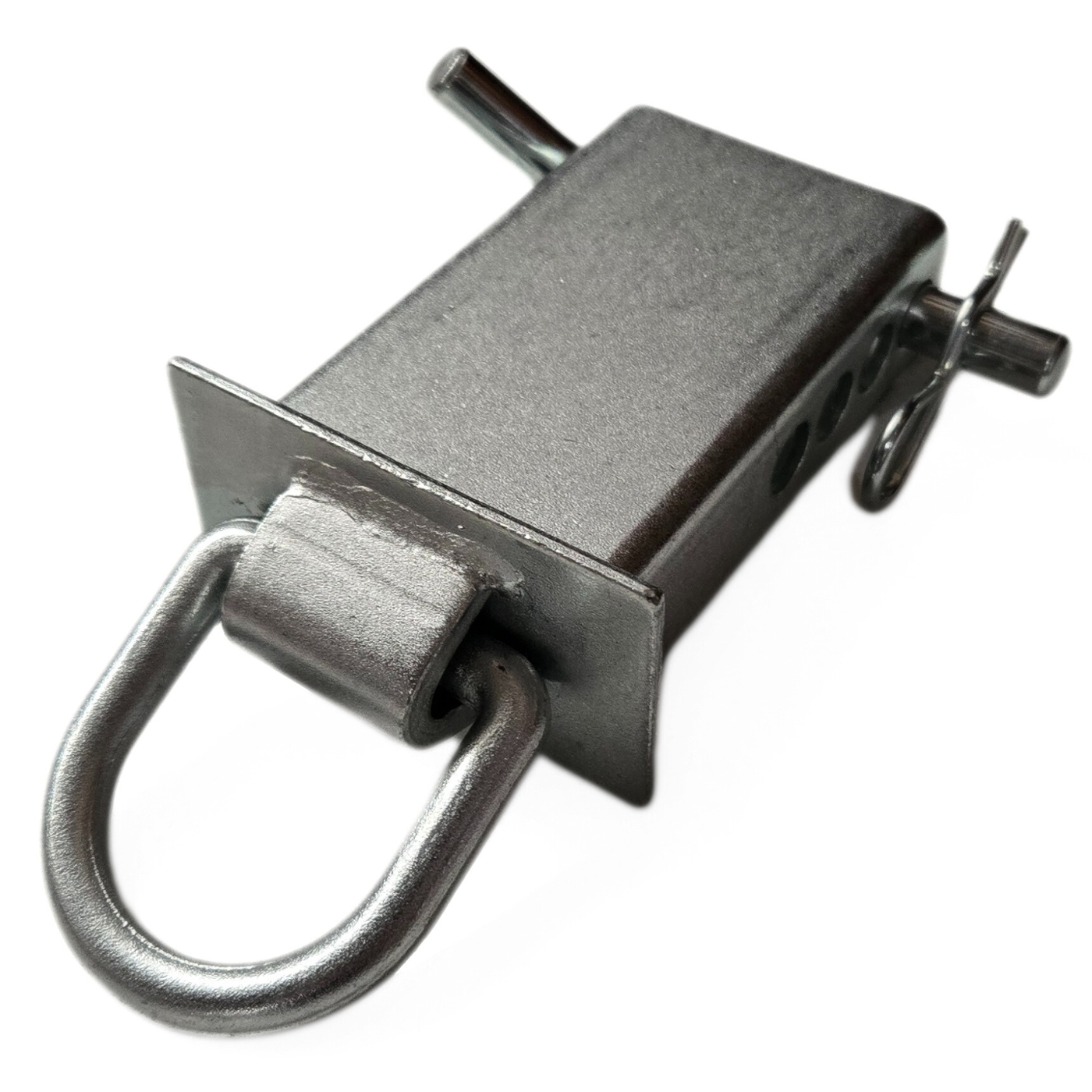

Adjustable Trailer Stake Pocket D Ring

This Trailer Stake Pocket D-Ring is designed for use in flatbed trucking and provides a secure anchor point for cargo securement.

Specifications:

• D-Ring Material: 5/8" forged steel, providing durability and strength.
• Stake Pocket Compatibility: Fits standard 2 x 4 stake pockets with an inside dimension of 3.75".
• Working Load Limit (WLL): 5,400 lbs, suitable for a range of securement needs.
• Capacity: 16,200 lbs, providing ample strength for heavy-duty applications.
• Pin and Lock Mechanism: Includes a 1/2" hitch pin with a locking cotter pin and four pin holes for adjustable height settings.

Dimensions:

• Overall Height: 5.5" from the bottom of the mounting plate to the bottom of the anchor.
• Width: 3-3/8".
• Pin Hole Heights:
  • 1st Pin Hole: 2.75" from the bottom of the mounting plate.
  • 2nd Pin Hole: 3.5" from the bottom of the mounting plate.
  • 3rd Pin Hole: 4.25" from the bottom of the mounting plate.
  • 4th Pin Hole: 5" from the bottom of the mounting plate.
• Pin Length: The bent pin is 6-3/4" long, with a 3" long clip.

This D-Ring is suitable for flatbed trailers requiring reliable and adjustable anchor points for cargo tie-down. The dimensions and features are designed to fit standard stake pockets, offering a robust solution for various cargo securement needs.

Please feel free to Contact Us with any Questions. Thank You!
