Underbody Tarp Arm Kit for Trailers up to 28' long

Name: Underbody Tarp Arm Kit for Trailers up to 28' long
SKU: 35248
Price: 949.00 USD
Availability: InStock

In Stock. Expected to ship tomorrow.

Item #: 35248

Price: $949.00

Underbody Tarp Arm Kit for Trailers up to 28 long

Additional Photos

Item #: 35248

Underbody Tarp Arm Kit for Trailers up to 28' long

Price:	$949.00
Qty:

In Stock. Expected to ship tomorrow.

This arm kit features underbody-mounted single-coil springs and is suitable for dump beds up to 28' long.

Arm Kit Includes

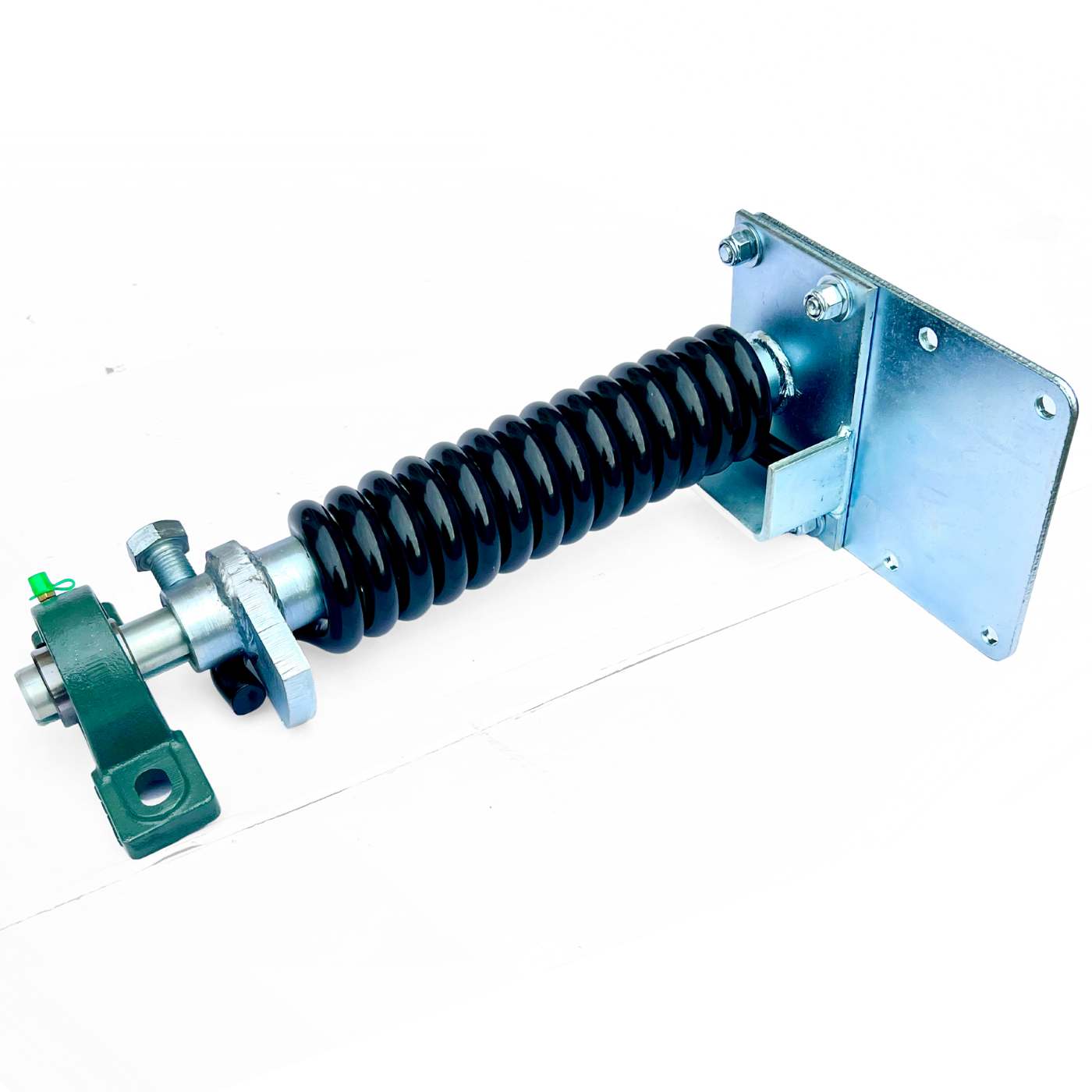

(1) Driver Side Underbody Spring Assembly
(1) Passenger Side Underbody Spring Assembly
(2) 84" Aluminum Lower Arms
(3) 103" Aluminum Cross Tube /Side Arms
(2) Aluminum 90 Degree Corners
(2) Underbody Aluminum Pivot Castings
All necessary installation hardware

Does not include roller, motor, switch kit, or wire.

Parts Diagram Breakdown

1 - Aluminum Underbody Lower Arm, 84"

2 -103" Side Arm

3 - Elbows (Arm Bends)

3a - Aluminum 30 Degree Bend Elbow

3b - Aluminum 45 Degree Bend Elbows

4 - 90 Degree Corner

5 - Plastic Tarp Centering Flange

6- 103" Aluminum Cross Tube

7 -Underbody Aluminum Pivot Casting

8 - Underbody Spring Assembly, Passenger Side

9 - Underbody Spring Assembly, Driver Side

Please feel free to Contact Us with any Questions. Thank You!
