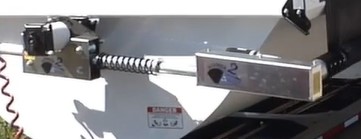

1001-960720 Aero (OEM) Drive Box Unit (Assembled) for Sidekick 2

1001-960720 DRIVE BOX UNIT ASSEMBLED

• Increases roll tube torque by 60%
• Eliminates pressure on motor shaft
• Roll tube is supported by 2 roller bearings
• Increases clearance between the tube and the chassis

Includes:

No. Part No.       Description        Qty

1 0755-623421   Motor RA/SWB  X 1
2 1001-960710   Drive Mount Channel Assy X 1
3 1001-960711   Bearing Mount Assy X 1
4 1001-861722   Drive Unit Cover X 1
5 1001-861729   SWING ARM MOUNT BRKT X 1
6 1001-861717   Roll Pipe Adapter X 1
7 1001-860774   Chain Tension Bracket X 1
8 1001-861714   Bearing Set 1" Bore X 2
9 1001-861719   Sprocket 40B24 1" Bore X 1
10 1001-861720 Sprocket 40B10 3/4" Bore  X 1
11 1001-861721  #40 Roller Chain X 1
12 0840-618505  SNAP RING 1" SHAFT X 1
13 1001-861723  KEY 1/4" x 1" X 1
14 1001-861736  KEY 3/16 X 3/16 X 1.625 X 1
15 0825-670709  SET SCREW 1/4 X 20 X 1/4 X 2
16 0825-670710  SET SCREW 1/4" X 28 X 1/4 X 1
17 0810-650497  1/4-20 x 1/2 FHCS X 6
18 0825-617251  1/4-20 x 5/8 SHCS X 6
19 0810-650552  5/16-18 x 7/8" Hex Bolt X 13
20 0815-660550  5/16-18 NYLOCK Hex Nut X 10
21 0820-680520  5/16 Lock Washer X 3
22 0810-650496  3/8-16 x 4 FHCS X 1
23 0810-670657  BOLT HHCS 3/8-16x3" X 1
24 0815-660646  NUT HEX. 3/8-16 ZINC GR 5 X 2
25 0755-626504  WIRE END #6 X 1/4 RING X 2


Items 15, 16, & 25 are not shown
