Front Motor/Drive Assembly for Aero PowerLock and SideKick Tarp Systems 1001-960730
Item #: 34933
Part #: 1001-960730

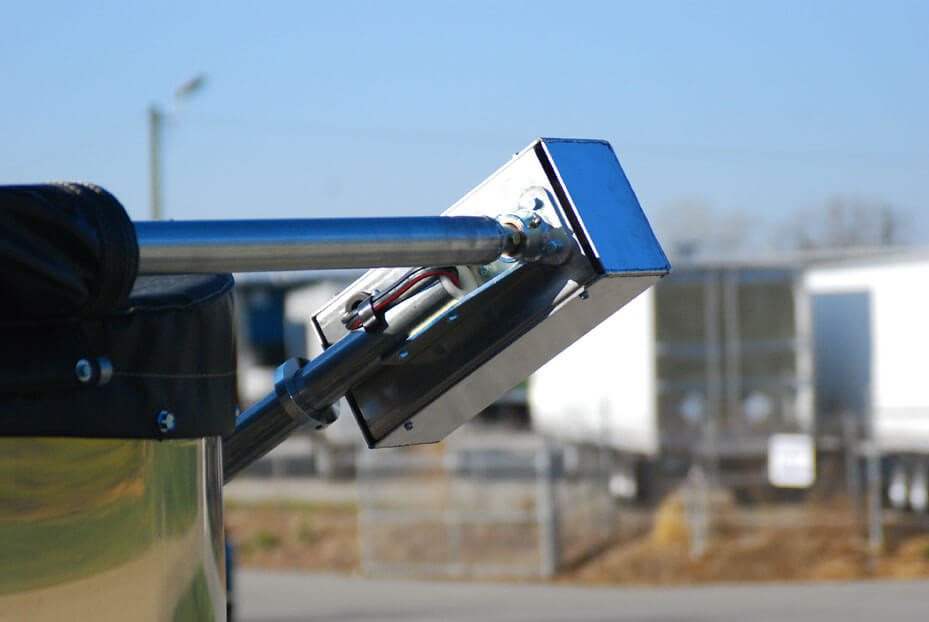

Drive assembly for Aero PowerLock and SideKick side roll systems. For use with grain trailers or end dumps.
Contains:
1001-960710 Drive Mount Channel Assy x 1
1001-960711 Bearing Mount Assy x 1
1001-860774 CHAIN TENSION BRACKET SK2 x 1
1001-861729 SWING ARM MOUNT BRACKET x 1
1001-861722 DRIVE UNIT COVER x 1
1001-861902 DRIVE SHAFT SPLINED x 1
1001-861714 BEARING SET 1" BORE x 2
0755-623407 MOTOR RA/SWB x 1
1001-861723 KEY 1/4" X 1" x 1
1001-861736 KEY 3/16 X 3/16 X 1.625 x 1
1001-861719 SPROCKET 40B24 1" BORE x 1
1001-861903 SPROCKET 40B14 3/4 BORE x 1
1001-861721 CHAIN #40 ROLLER 49 PITCH x 1
0810-650496 3/8-16X4 CNTRSINK BOLT x 1
0810-650497 BOLT 1/4-20 X 1/2" x 6
0810-650552 BOLT HHCS 5/16-18x7/8" x 13
0815-660550 NUT HEX. 5/16-18 x 10
0825-617251 SCREW 1/4-20-5/8 SHCS ZP x 6
0815-660640 NUT HEX. 3/8-16 x 2
0820-680520 WASHER SLCK 5/16" x 3
0810-670657 BOLT HHCS 3/8-16x3" x 2
0840-618505 SNAP RING 1" SHAFT x 1
0825-670709 SET SCREW 1/4 X 20 X 1/4 x 2
0825-670710 SET SCREW 1/4" X 28 X 1/4 x 1
Replaces obsolete 1001-961310
