US Tarp 13433 Complete Arm Kit for 3-Spring Aluminum System (up to 12')

US Tarp 13433 Complete Arm Kit for 3-Spring Aluminum System (up to 12')
Expected to ship within 2 to 3 business days.
Item #: 34557
Part #: 13433
Price:
Add To Cart
US Tarp 13433 Complete Arm Kit for 3-Spring Aluminum System (up to 12)
Additional Photos
US Tarp 13433 Complete Arm Kit for 3-Spring Aluminum System (up to 12)
US Tarp 13433 Complete Arm Kit for 3-Spring Aluminum System (up to 12')
Item #: 34557
Part #: 13433
Price:
Qty:
Add To Cart
Expected to ship within 2 to 3 business days.

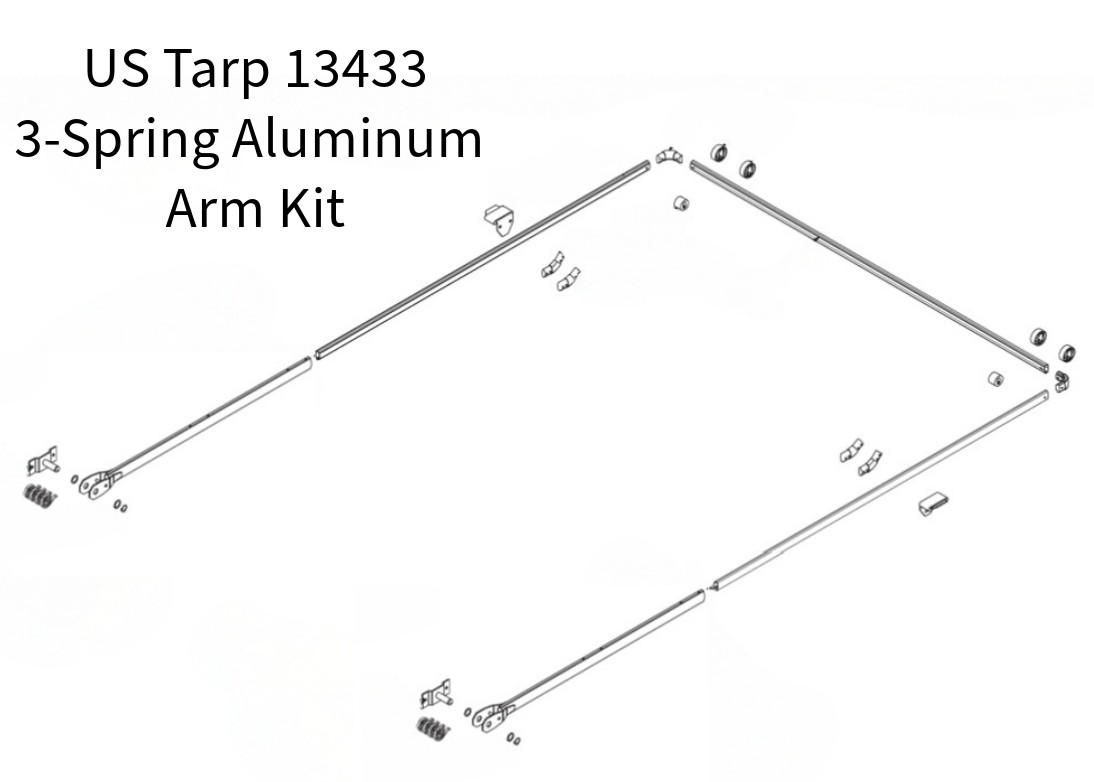

Complete pin-to-pin arm kit for US Tarp 3-spring aluminum system. Ideal for bodies 12' or less.

Arm Kit Includes
  • (2) Pivot Pins
  • (2) 31" Lower aluminum arms
  • (6) Spiral torsion springs
  • (4) Stainless steel bushings for pivot pin
  • (2) External Retaining Rings
  • (2) Aluminum side arms
  • (1) 105 1/2" Aluminum cross tube
  • (2) 90-degree corners
  • (2) plastic tarp centering flanges
  • All mounting hardware

    • Does not include roller, motor, switch kit, or wire.

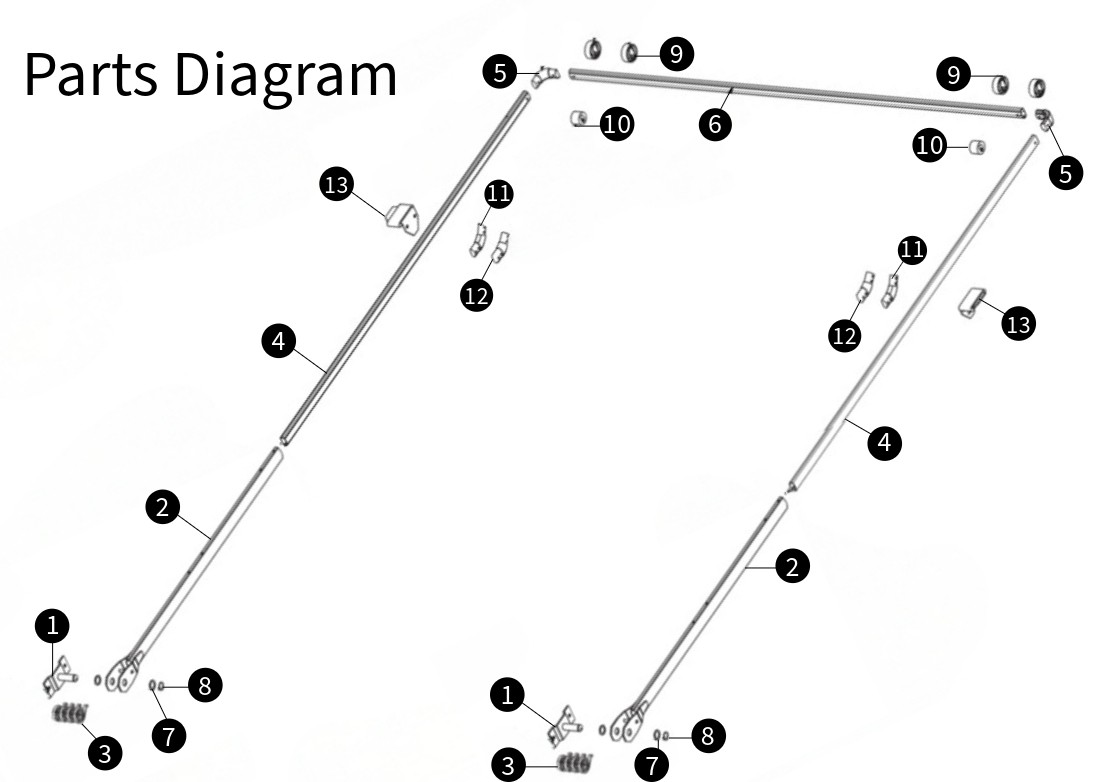

    Parts Diagram Breakdown

  • 1 - US Tarp 11183 3-Spring Pivot Pin
  • 2 - US Tarp 11244 3-Spring Lower Arm, 31"
  • 3 - US Tarp 11121 Spiral Torsion Spring
  • 4 - US Tarp 11236 98" Aluminum Upper Side Arm w/ 90 Degree Corner
  • 5 - US Tarp 11235 Aluminum 90 Degree Corner
  • 6 - US Tarp 11232 Aluminum Cross Tube 105-1/2"
  • 7 - US Tarp 11141 Stainless Steel Bushing for Pivot Pin
  • 8 - US Tarp 11142 Retaining Ring for Pivot Pin
  • 9 - US Tarp 11231 Plastic Tarp Centering Flange

    • Available Add-ons (*These parts do NOT come with the arm kit*)

  • 10 - US Tarp 14942 2-1/2" Rubber Tarp Centering Flange
  • 11 - US Tarp 11233 Aluminum 45 Degree Elbows
  • 12 - US Tarp 11234 Aluminum 30 Degree Elbows
  • 13 - US Tarp 11177 Aluminum Stop Bracket w/ Rubber Bumper

    • Please feel free to Contact Us with any Questions. Thank You!
