US Tarp 12254 Complete Arm Kit for 5-Spring Steel System (up to 26')

US Tarp 12254 Complete Arm Kit for 5-Spring Steel System (up to 26')
Item #: 34025
Part #: 12254
Price:
Add To Cart
US Tarp 12254 Complete Arm Kit for 5-Spring Steel System (up to 26)
Additional Photos
US Tarp 12254 Complete Arm Kit for 5-Spring Steel System (up to 26)
US Tarp 12254 Complete Arm Kit for 5-Spring Steel System (up to 26')
Item #: 34025
Part #: 12254
Price:
Qty:
Add To Cart

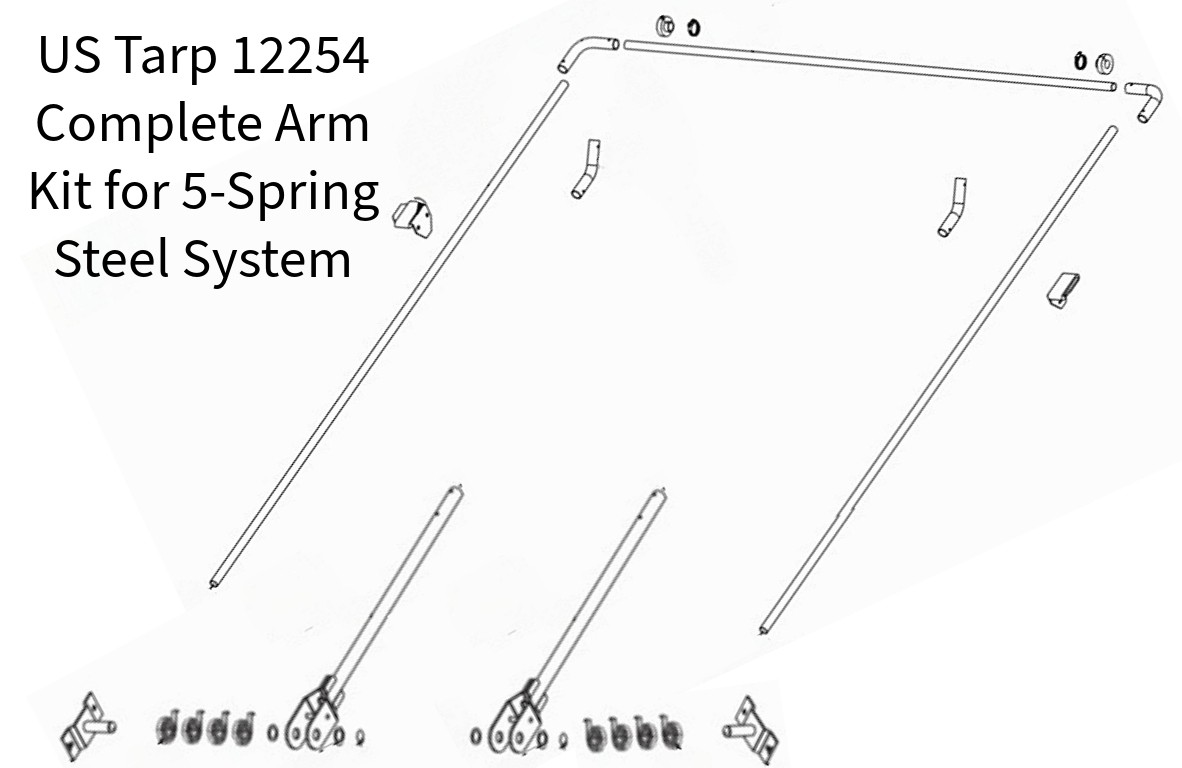

Complete pin-to-pin arm kit for US Tarp 5-spring steel system. Ideal for bodies 26' or less.

Arm Kit Includes
  • (2) Pivot Pins
  • (2) 48" Lower Steel arms
  • (10) Spiral torsion springs
  • (4) Stainless steel bushings for pivot pin
  • (2) External Retaining Rings
  • (2) 120" Steel side arms
  • (1) 96" Steel cross tube
  • (2) 90-degree steel corners
  • (2) Tarp centering flanges with clamp
  • All mounting hardware

    • Does not include roller, motor, switch kit, or wire.

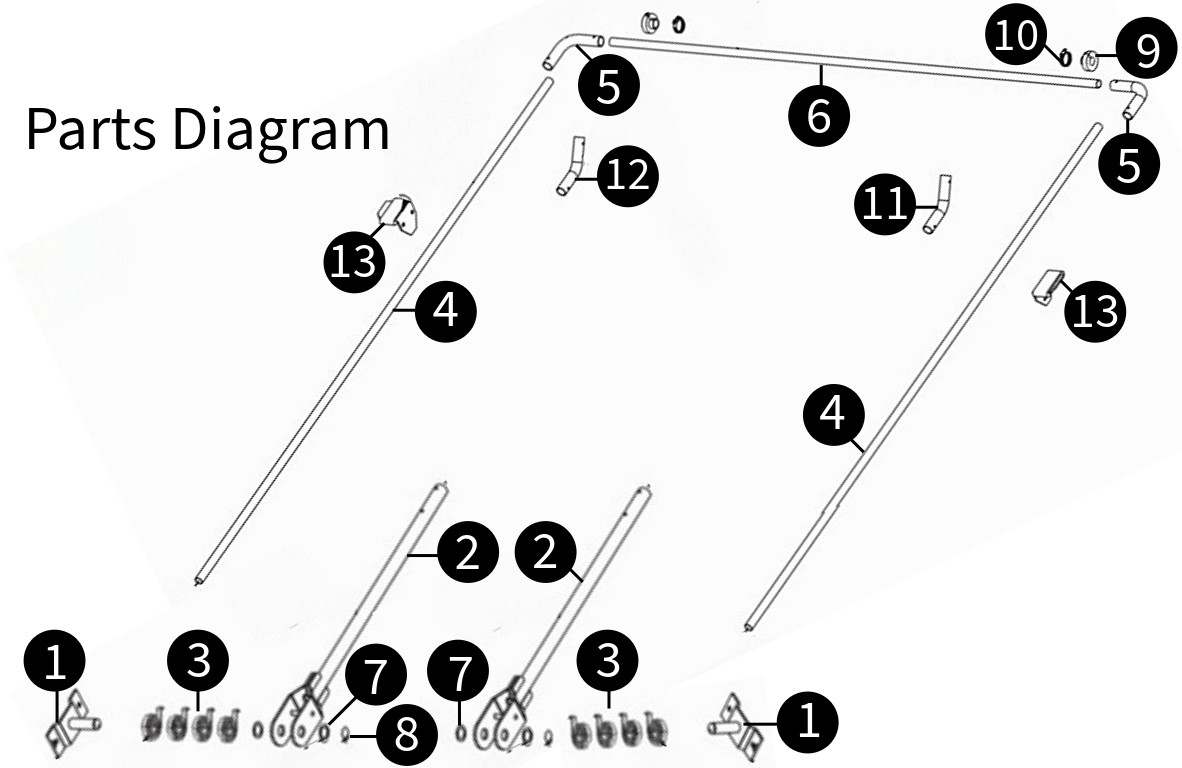

    Parts Diagram Breakdown

  • 1 - US Tarp 11272 5-Spring Pivot Pin
  • 2 - US Tarp 11370 5-Spring Lower Steel Arm, 48"
  • 3 - US Tarp 11121 Spiral Torsion Spring
  • 4 - US Tarp 11268 Steel Upper Side Arm, 120"
  • 5 - US Tarp 11267 Steel 90 degree elbow
  • 6 - US Tarp 11269 Steel Cross Tube, 96"
  • 7 - US Tarp 11141 Stainless Steel Bushing for Pivot Pin
  • 8 - US Tarp 11142 Retaining Ring for Pivot Pin
  • 9 - US Tarp 13941 Rubber Tarp Centering Flange
  • 10 - US Tarp 13913 Tarp Collar Clamp

    • Available Add-ons (*These parts do NOT come with the arm kit*)

  • 11 - US Tarp 13546 Steel 45 Degree Elbows
  • 12 - US Tarp 13845 Steel 30 Degree Elbows
  • 13 - US Tarp 11177S Steel Stop Bracket w/ Rubber Bumper

    • Please feel free to Contact Us with any Questions. Thank You!
