US Tarp 12365 Complete Arm Kit for 5-Spring Aluminum System (up to 26')

US Tarp 12365 Complete Arm Kit for 5-Spring Aluminum System (up to 26')
Item #: 34024
Part #: 12365
Price:
Add To Cart
US Tarp 12365 Complete Arm Kit for 5-Spring Aluminum System (up to 26)
Additional Photos
US Tarp 12365 Complete Arm Kit for 5-Spring Aluminum System (up to 26)
US Tarp 12365 Complete Arm Kit for 5-Spring Aluminum System (up to 26')
Item #: 34024
Part #: 12365
Price:
Qty:
Add To Cart

Complete pin-to-pin arm kit for US Tarp 5-spring aluminum system. Ideal for bodies 26' or less.

Arm Kit Includes
  • (2) Pivot Pins
  • (2) 84" Lower aluminum arms
  • (10) Spiral torsion springs
  • (4) Stainless steel bushings for pivot pin
  • (2) External Retaining Rings
  • (2) 98" Aluminum side arms
  • (1) 105 1/2" Aluminum cross tube
  • (2) 90-degree corners
  • (2) plastic tarp centering flanges
  • All mounting hardware

    • Does not include roller, motor, switch kit, or wire.

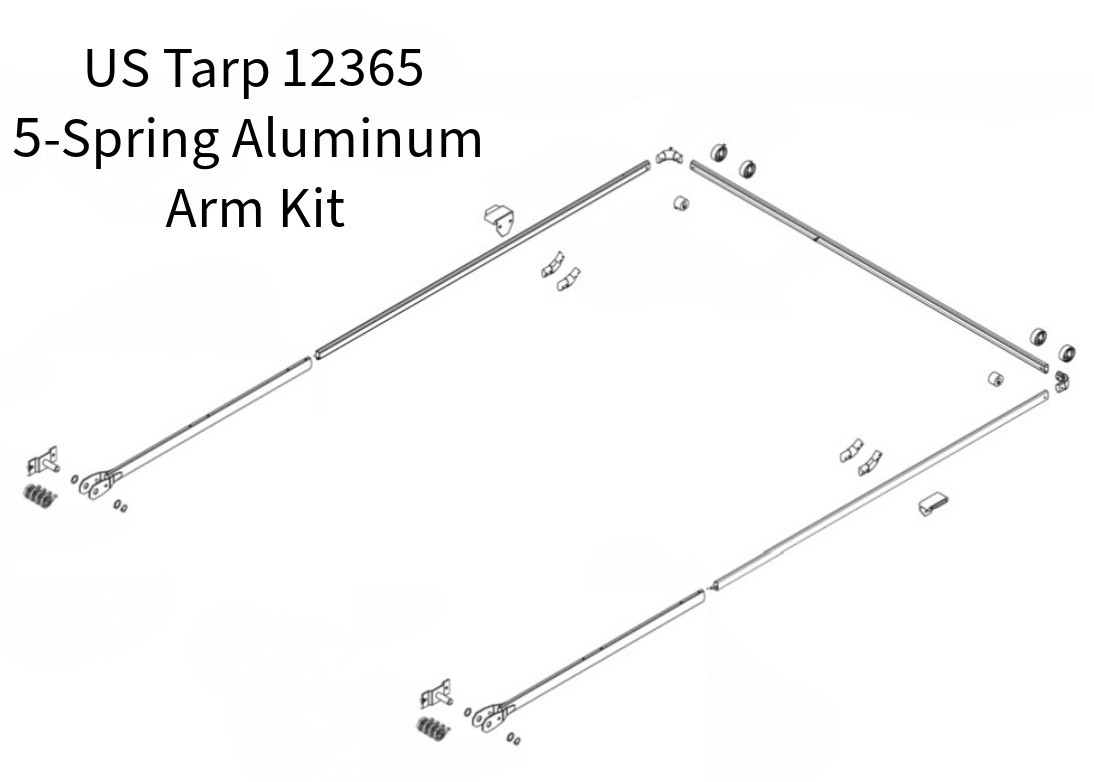

    Parts Diagram Breakdown

  • 1 - US Tarp 11272 5-Spring Pivot Pin
  • 2 - US Tarp 11242 5-Spring Lower Aluminum Arm, 84"
  • 3 - US Tarp 11121 Spiral Torsion Spring
  • 4 - US Tarp 11236 98" Aluminum Upper Side Arm w/ 90 Degree Corner
  • 5 - US Tarp 11235 Aluminum 90 Degree Corner
  • 6 - US Tarp 11232 Aluminum Cross Tube 105-1/2"
  • 7 - US Tarp 11141 Stainless Steel Bushing for Pivot Pin
  • 8 - US Tarp 11142 Retaining Ring for Pivot Pin
  • 9 - US Tarp 11231 Plastic Tarp Centering Flange

    • Available Add-ons (*These parts do NOT come with the arm kit*)

  • 10 - US Tarp 14942 2-1/2" Rubber Tarp Centering Flange
  • 11 - US Tarp 11233 Aluminum 45 Degree Elbows
  • 12 - US Tarp 11234 Aluminum 30 Degree Elbows
  • 13 - US Tarp 11177 Aluminum Stop Bracket w/ Rubber Bumper

    • Please feel free to Contact Us with any Questions. Thank You!
