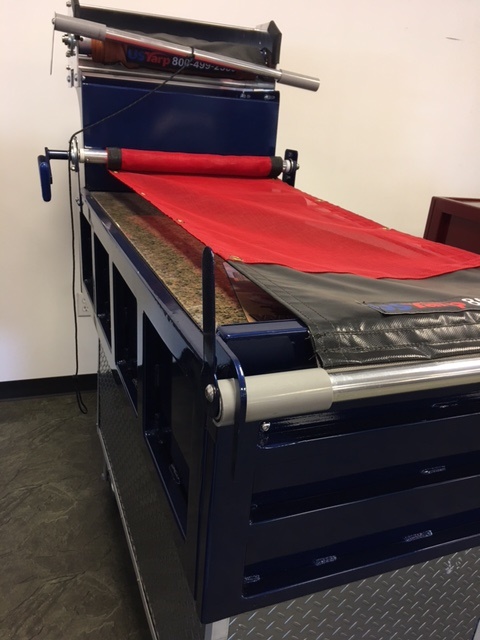

Manual Cab Level Crank Tarp System with Pull Bar (US Tarp 13484)

• Mounts on the front of any length box
• Fits box widths up to 8' 6"; 103" aluminum extruded standard tarp axle is 1-1/2" in diameter and can be cut to whatever width you need
• Can be used with tarps up to 40' long
• NOTE: Tarps ordered for use with this system should measure at least 4" less than the width of your mounted axle

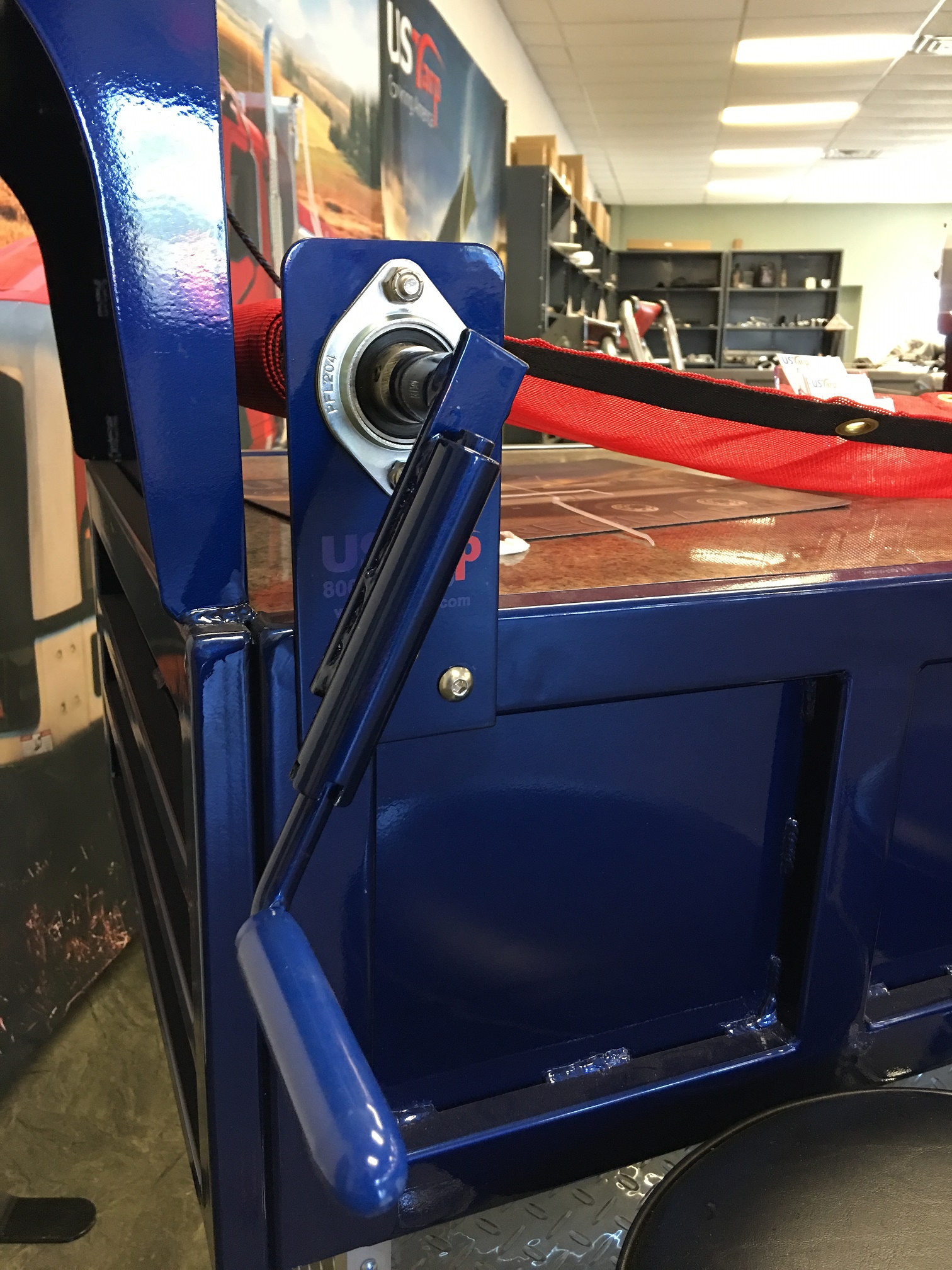

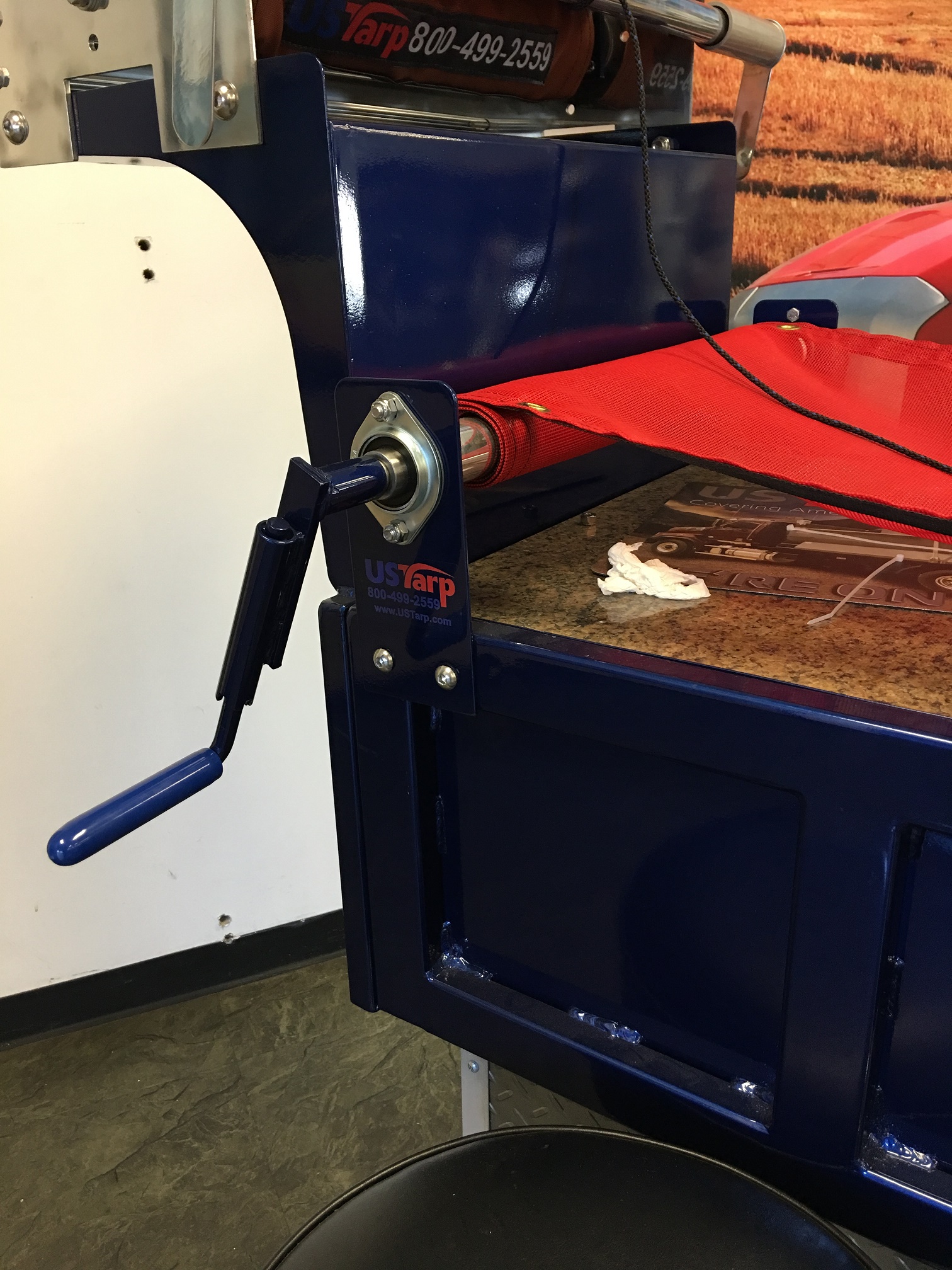

• Spring-loaded, break-away crank handle
• Steel powder-coated mounting brackets and sealed bearings.

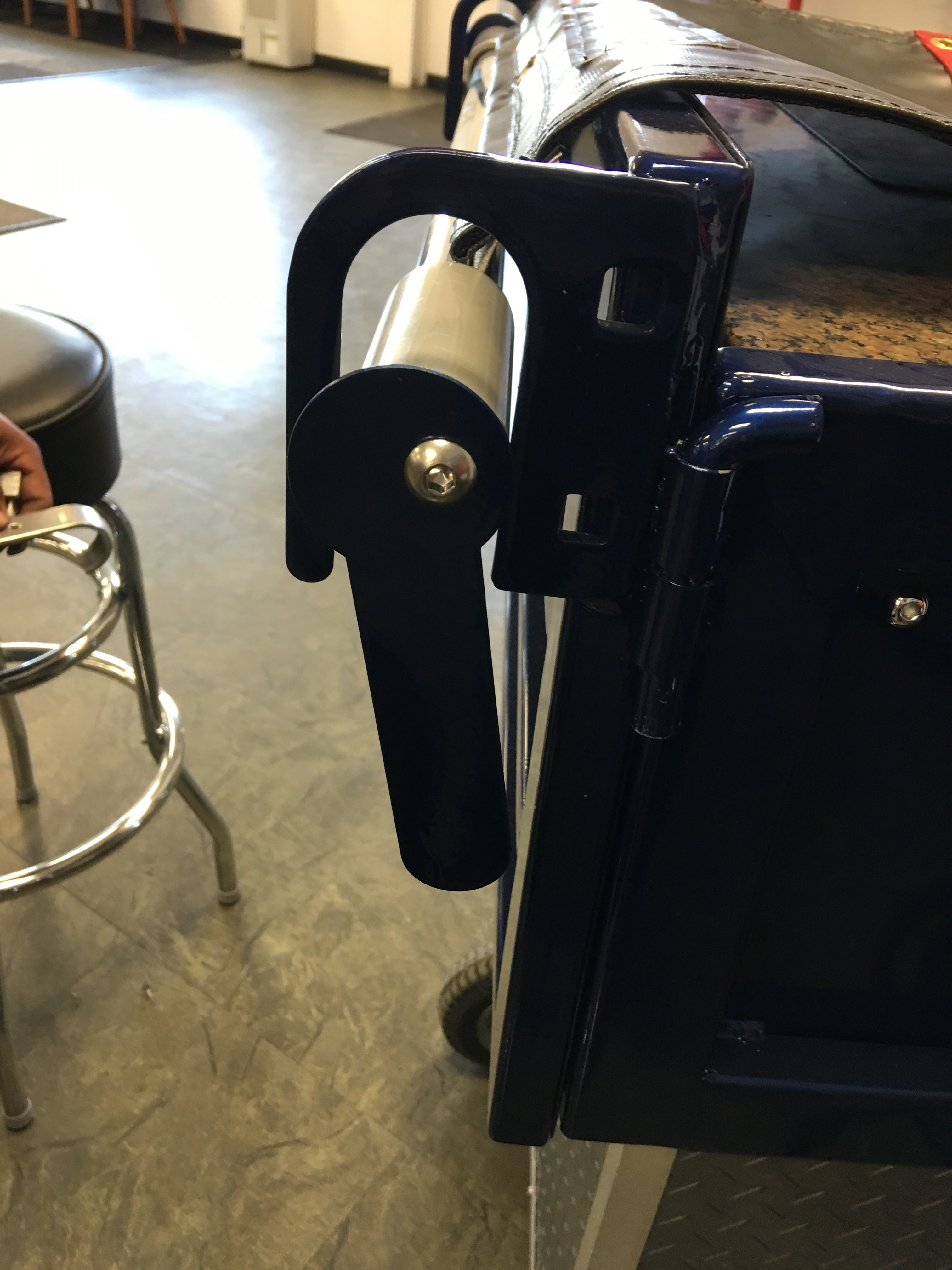

• This kit includes the rear pull bar assembly (including J-Hooks) which keeps the tarp square and makes it easier to lock down in the rear. It does not include the wind deflector. You can see cab level kits with other options here.
• Standard crank pushes in to lock. Locking ratchet upgrade available here.
• Tarp not included.

Installing Pull Rope

• Attach the free end of the Pull Rope to the center of the Rear Pull Bar, through the grommet, with cut end facing upwards. Cut rope to desired length, and tie a knot.
• Mount two J-hooks, with the supplied self-tapping bolts, opposing each other near the rear of the dump (typically on the gate) to secure the Pull Rope in the covered position.
• Mount two J-hooks with the supplied self-tapping bolts opposing each other near the front of the dump to secure the Pull Rope in the uncovered position.

Please feel free to Contact Us with any Questions. Thank You!
