US Tarp HD Bulletproof System for 45' Trailers, Electric

US Tarp HD Bulletproof System for 45' Trailers, Electric
Item #: 33938
Part #: 15087
Price:
Add To Cart
US Tarp HD Bulletproof System for 45' Trailers, Electric
Item #: 33938
Part #: 15087
Price:
Qty:
Add To Cart

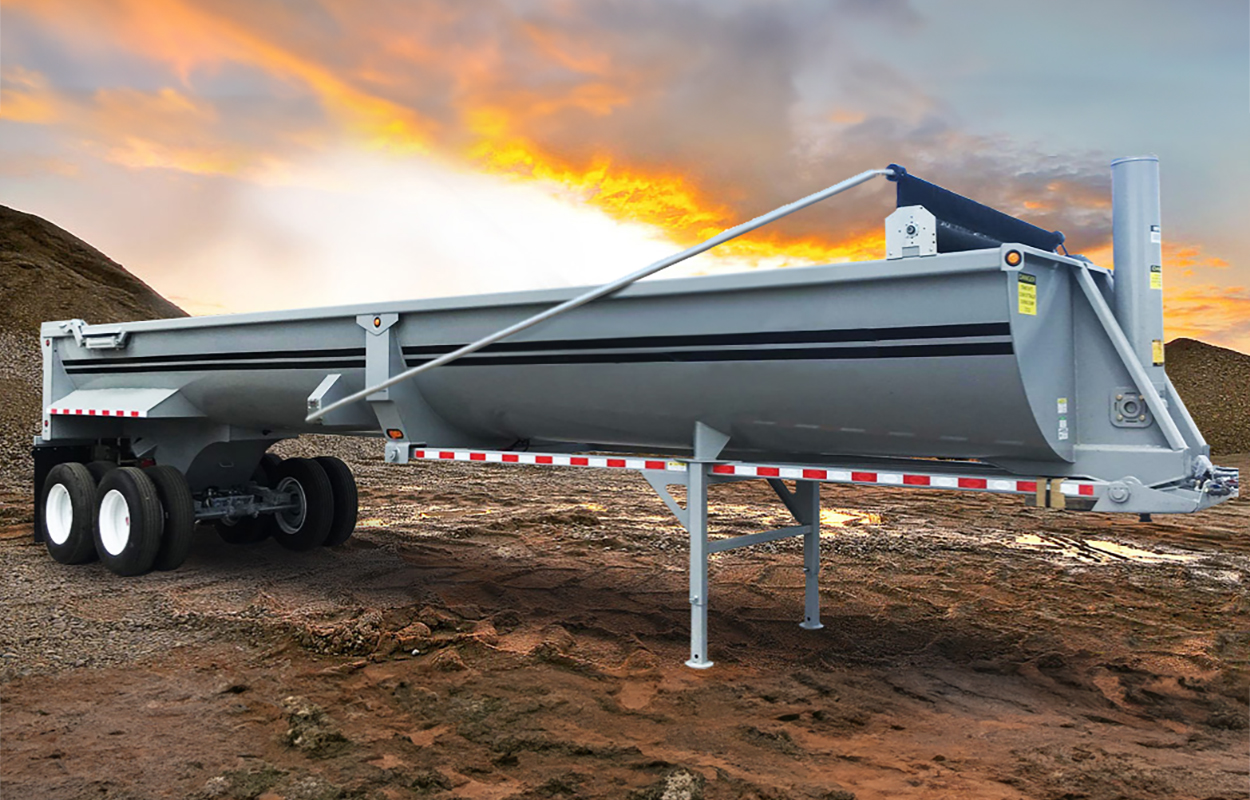

Includes one-piece "bulletproof" arms for trailers up to 45' long, with cross tube assembly in 96" or 102" width.

Part # Desc Qty
13732 HD Bulletproof Arm, 240" 2
14521 Steel one-piece arm cross tube for a 96" trailer 1
14966 HD underbody spring assembly, driver-side 1
14967 HD underbody spring assembly, passenger-side 1
14783 3/4" spring, 13 coils, L.H. 1
14784 3/4" spring, 13 coils, R.H. 1
15753 3/4" underbody spring housing 2
15517 HD 3/4" spring catch w/ 1/2" steel 2
15613 1-1/4" dia. underbody spring shaft, 21" length 2
15614 1-1/4" dia. underbody spring shaft, spacer 2
14906 1-1/4" square mount flange mount bearing 4
15717 3/4" underbody bulletproof arm casting, chrome plated steel 2
15500 5/16"-18 x 1-1/2" full thread bolt 16
11205 5/16" flat washer 16
11229 5/16" nylock nut 16


Please feel free to Contact Us with any Questions. Thank You!
