US Tarp 3-Spring External Mount Aluminum System, Electric w/ Slim Motor

US Tarp 3-Spring External Mount Aluminum System, Electric w/ Slim Motor
Item #: 33701
Part #: 11417
Price:
Add To Cart
Additional Photos
US Tarp 3-Spring External Mount Aluminum System, Electric w/ Slim Motor
Item #: 33701
Part #: 11417
Price:
Qty:
Add To Cart

This 3-spring aluminum system from US Tarp is a great front-to-back tarping solution for trucks 12' and under. Kit includes everything you need except a tarp.

Specifications:
  • 3-spring aluminum assembly looks great and never rusts
  • Fits dump bodies up to 12' in length
  • Versatile bolt-on or weld-on spring assemblies
  • Premium polished aluminum arms telescope to fit a wide range of body lengths
  • Stainless steel hardware available upon request for added sparkle and shine

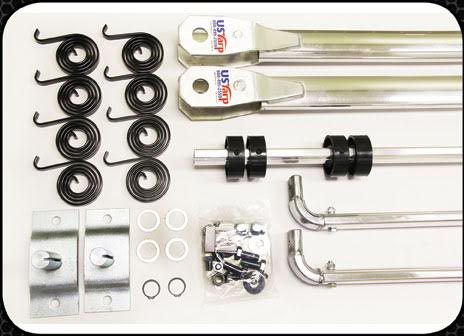

3-spring polished aluminum external mount kit includes:

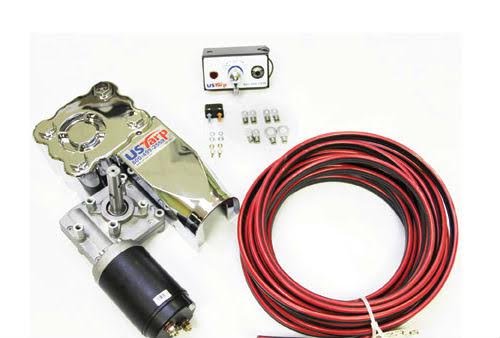

  • US Tarp 13655 Slim 12 Volt Motor w/ Chrome Cover, 50:1 ratio, 3-yr. warranty
  • Rotary switch
  • 65 ft. of 6-gauge wire
  • Two aluminum lower arms, 31" length (Part 2*)
  • Two aluminum upper side arms, 98" long (Part 7)
  • Six spiral torsion springs (Part 3)
  • Two 3-spring pivot pins (Part 1)
  • Two stainless aluminum bushings for pivot pins (Part 4)
  • Two retaining rings for pivot pins (Part 5)
  • One aluminum cross tube, 105 ½" long (Part 6
  • Two aluminum 90 degree corners (Part 8)
  • Four plastic tarp centering flanges (Part 9)
  • Two 2 ½" rubber tarp centering flanges (Part 10)
  • Two aluminum stop bracket w/rubber bumper (Part 12)

Aluminum 30 degree or 45 degree elbows are optional if you want to create a bend in your arms.


*As shown in the parts diagram image above

Please feel free to Contact Us with any Questions. Thank You!
