Super Torque Right Angle Motor w/ Gearbox - 12 volt, Pioneer 20-15-0028

Super Torque Right Angle Motor w/ Gearbox - 12 volt, Pioneer 20-15-0028
Item #: 33599
Part #: 20-15-0028
Price:
Add To Cart
Additional Photos
Super Torque Right Angle Motor w/ Gearbox - 12 volt, Pioneer 20-15-0028
Item #: 33599
Part #: 20-15-0028
Price:
Qty:
Add To Cart

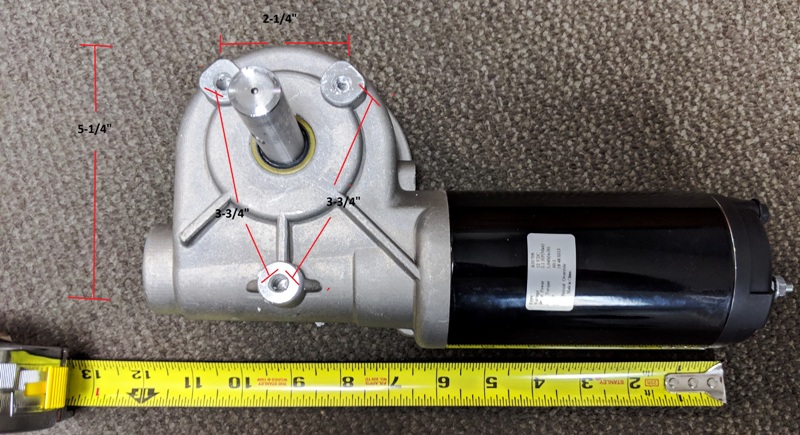

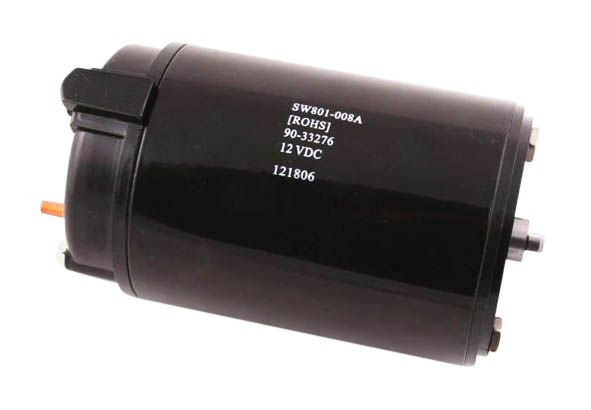

12 volt, right angle, direct drive motor for Pioneer systems is the replacement for older Pioneer EDD1508 systems, Pioneer HR1500E systems, and Pioneer EDD1500D dump truck systems. Ideal for bodies up to 19'. Includes motor, gear box, chrome cover, and bolt bag for motor mount.

  • 60:1 ratio
  • 1.1 HP, direct drive
  • 3-year warranty

Specifications:

  • Voltage: 12VDC
  • No Load Speed: 90RPM +/-10% Clockwise
  • Nominal Speed: 79RPM +/-10%
  • Nominal Torque 17.2Nm
  • Gear Ratio: 60:1
  • HorsePower: 1.1HP
  • Duty Cycle: 20S ON / 40S OFF
  • 3/4" shaft

Gearbox only is here.
