Adjustable Steel Tarp Bow - 1" Bow, 3/4" Shanks

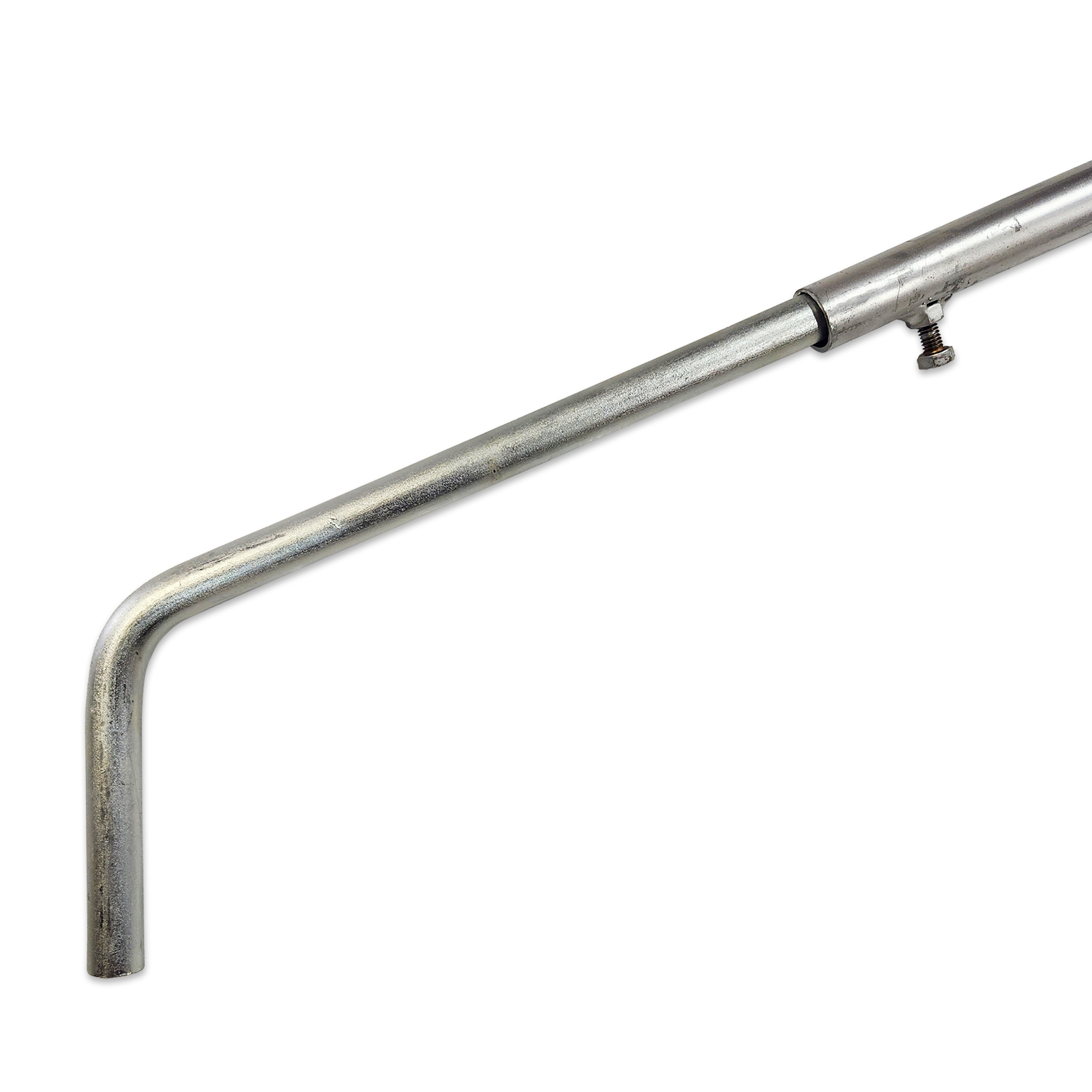

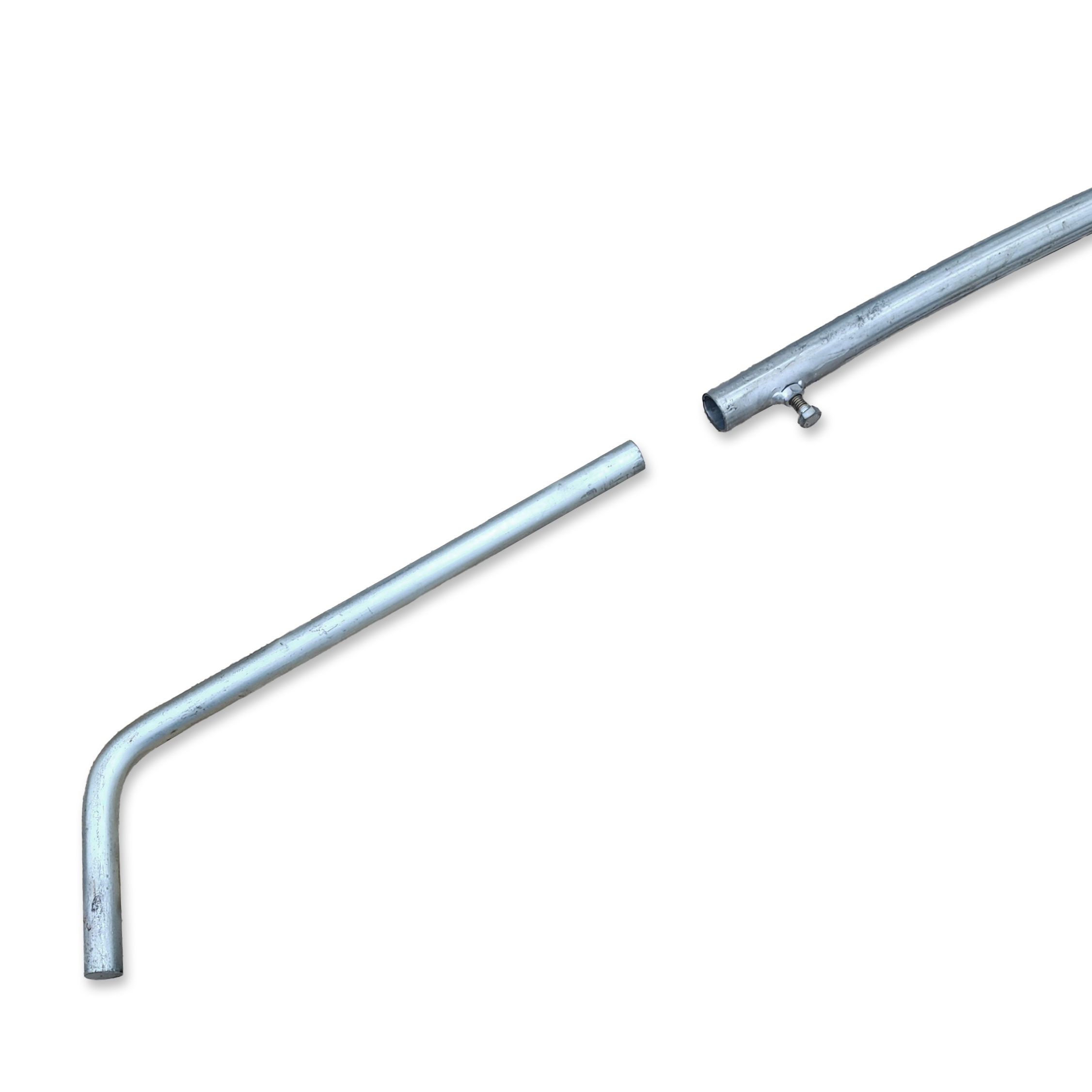

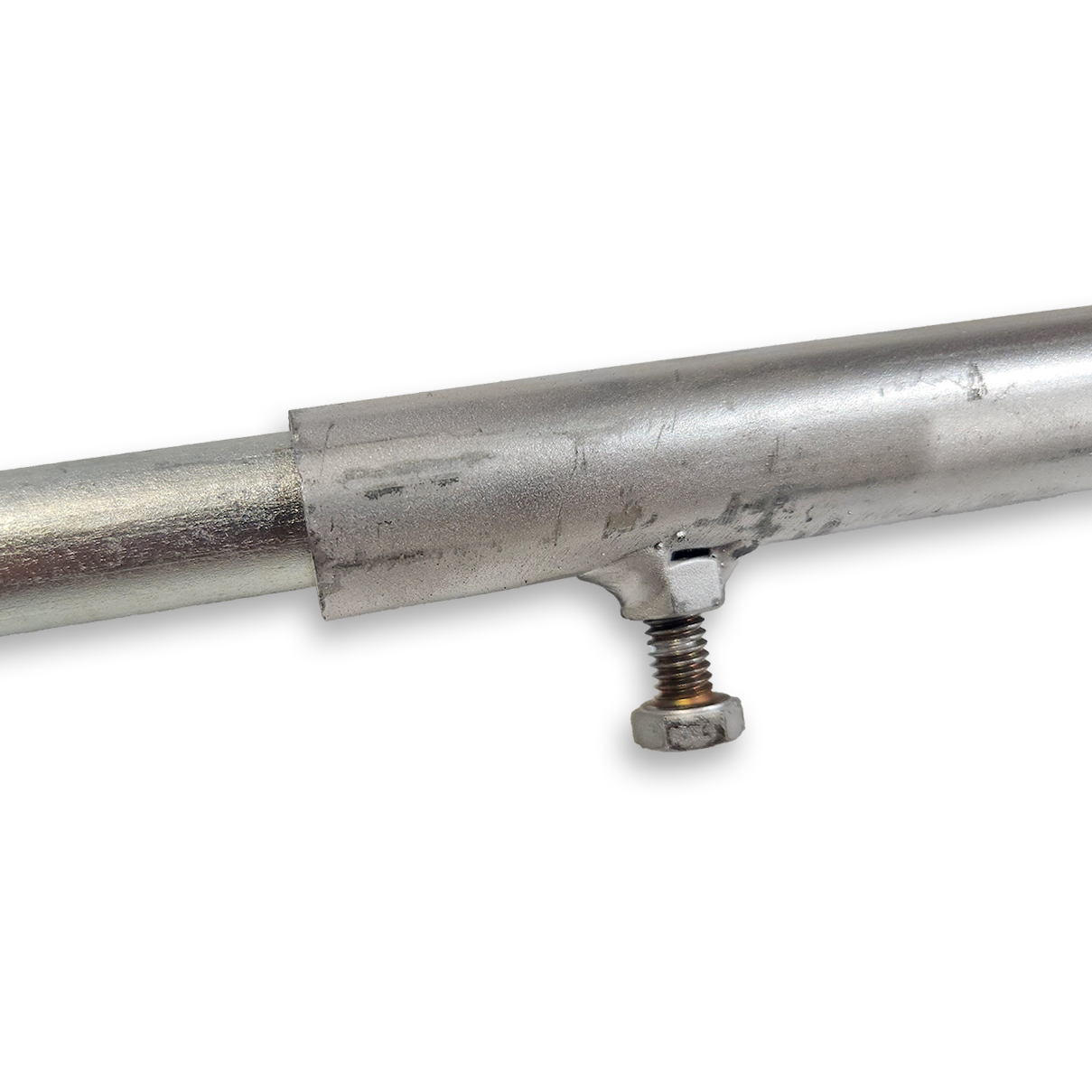

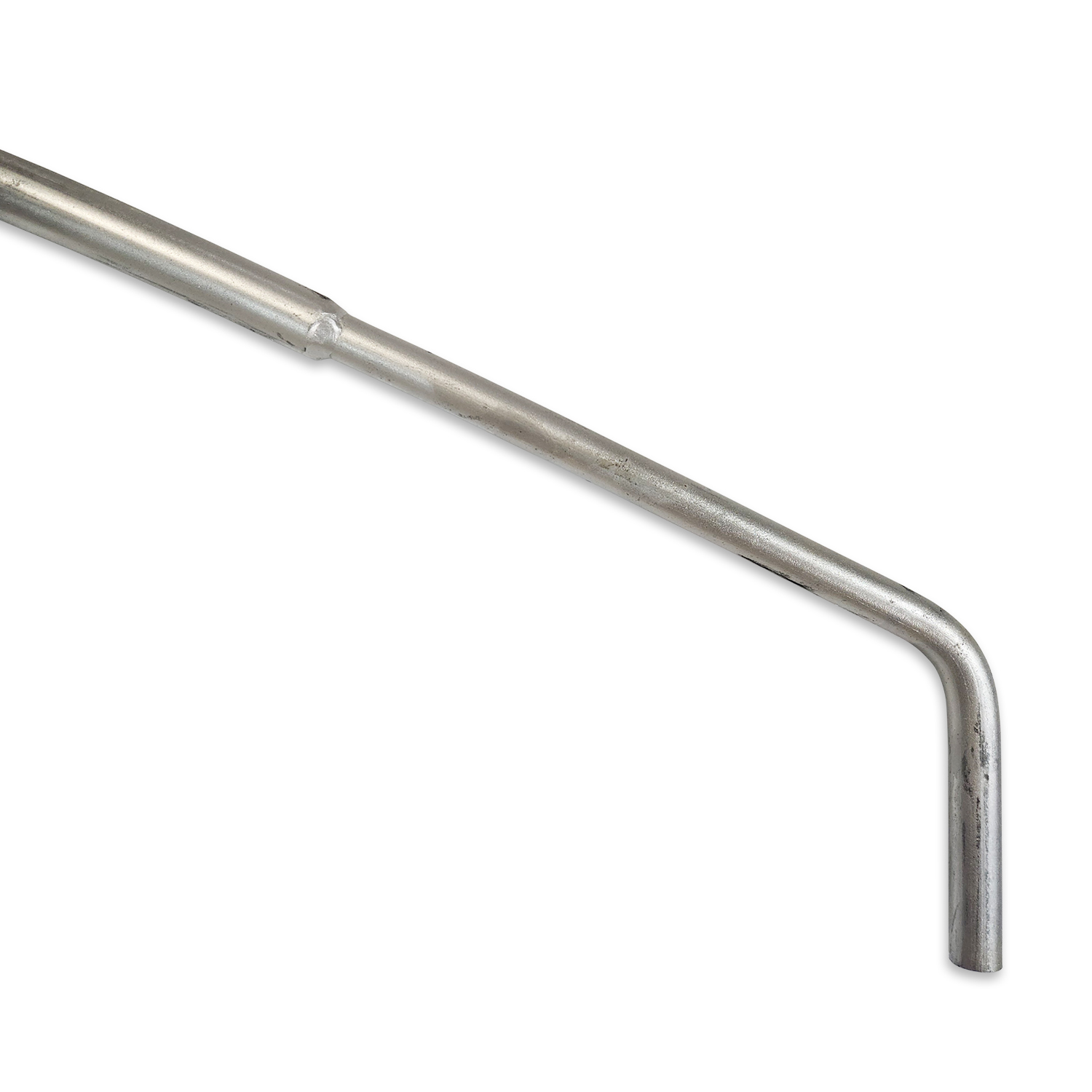

This galvanized steel bow is designed for use with containers up to 102" wide (select trailer size.) The main body of the bow features a 1" tube, with two 3/4" rods, or bow shanks, on either end; one welded and one adjustable. A hex bolt allows you tighten the 18" adjustable shank at the position needed to fit the exact with of your container.

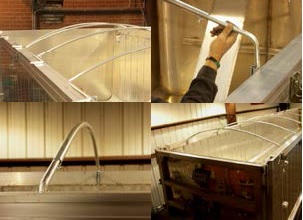

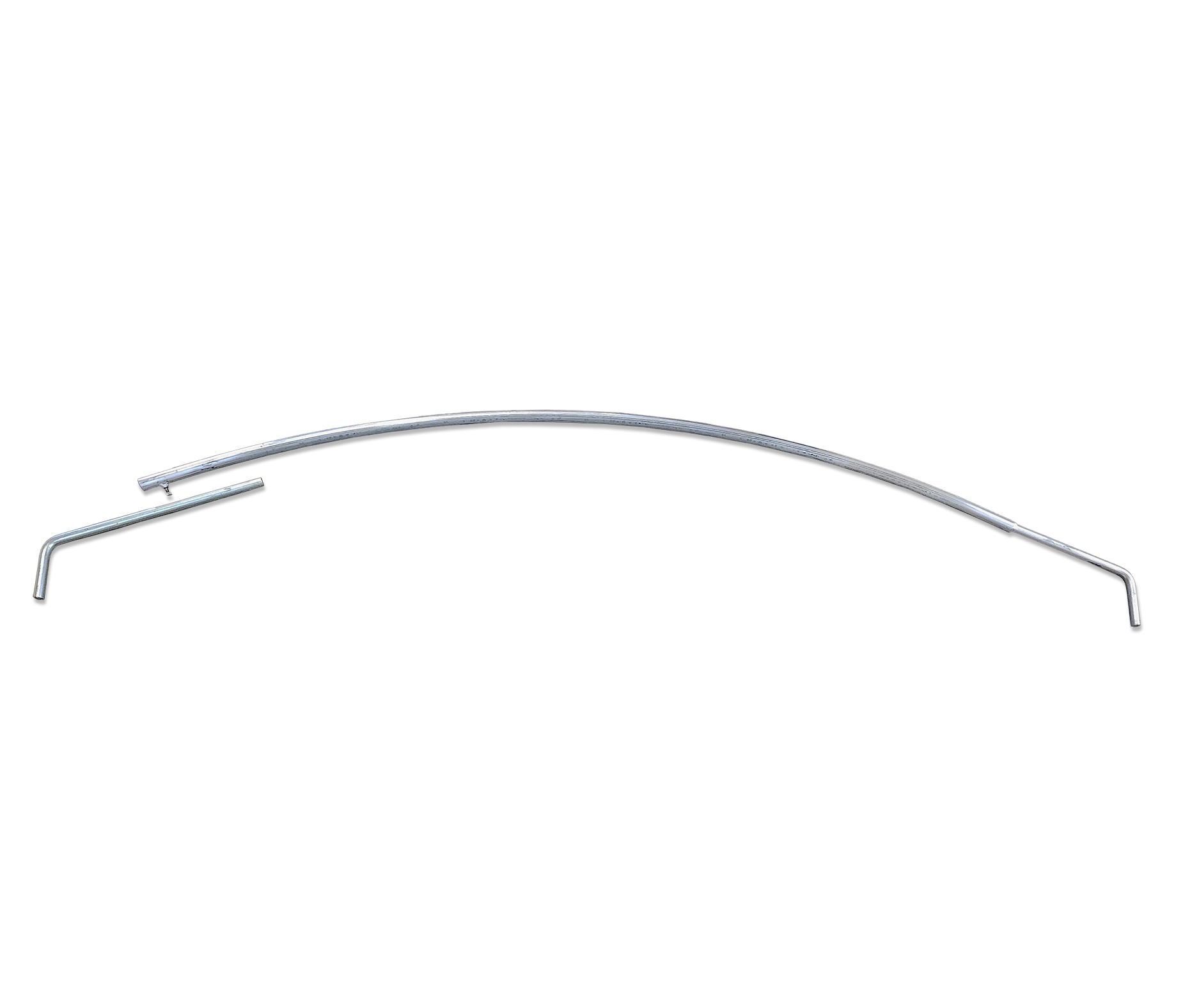

The bow assembly adjusts to accommodate an inside width of 84" to 91". Once assembled, the bow can be easily lifted in and out of the bow brackets (not included) mounted to the trailer walls. The bow comes with a standard 10" rise, but custom rise heights can be requested during checkout.

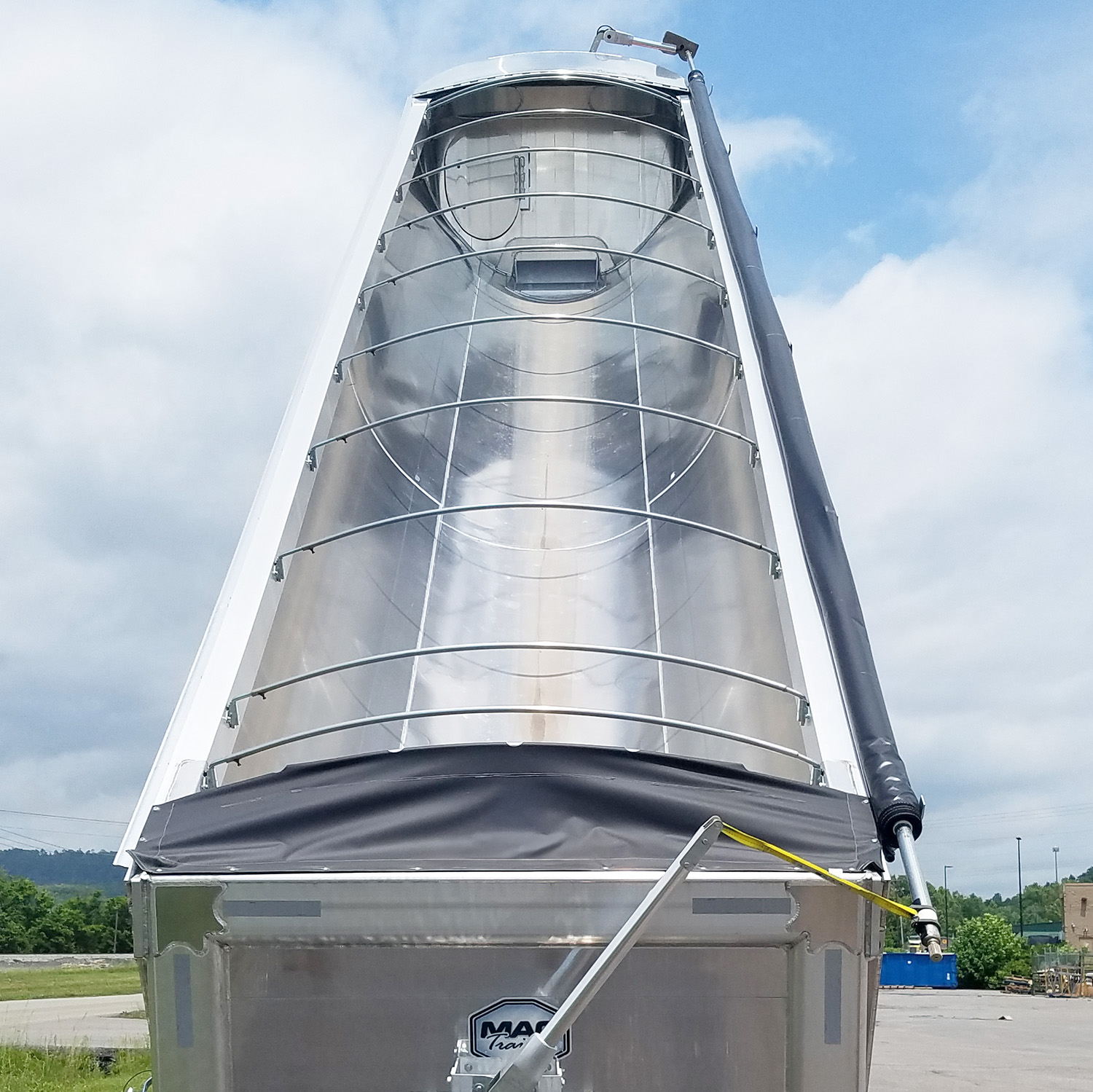

This bow is the standard bow included with Mountain Lock-N-Roll and CNTRK96 tarp kits.

Please feel free to Contact Us with any Questions. Thank You!
