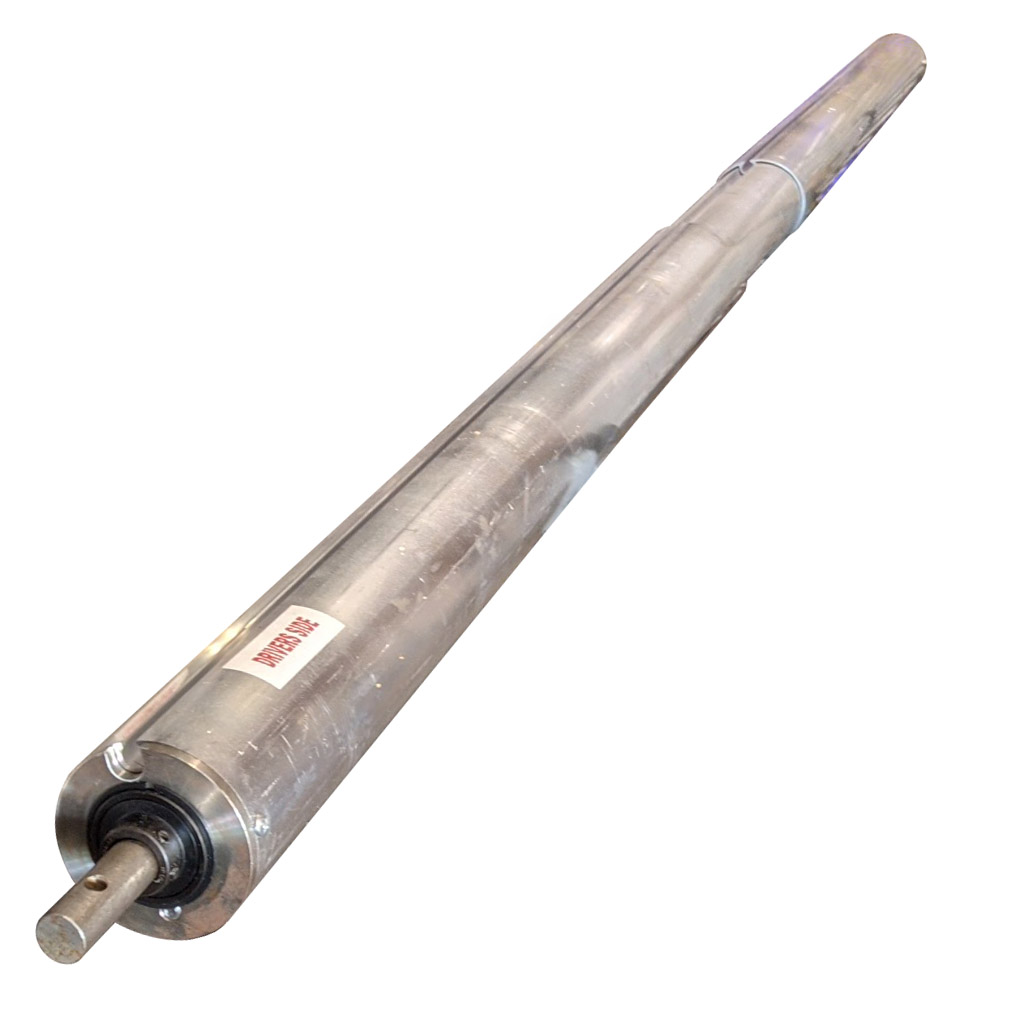

Pioneer G605 Spring Loaded Telescoping Roller Assembly

The G605 Spring Loaded Roller Assembly is used on several Pioneer tarping systems. It starts at 93-1/2" wide and can adjust in and out to the width you need (the shaft itself is 99" and can be cut down). The shaft is 3/4" diameter.

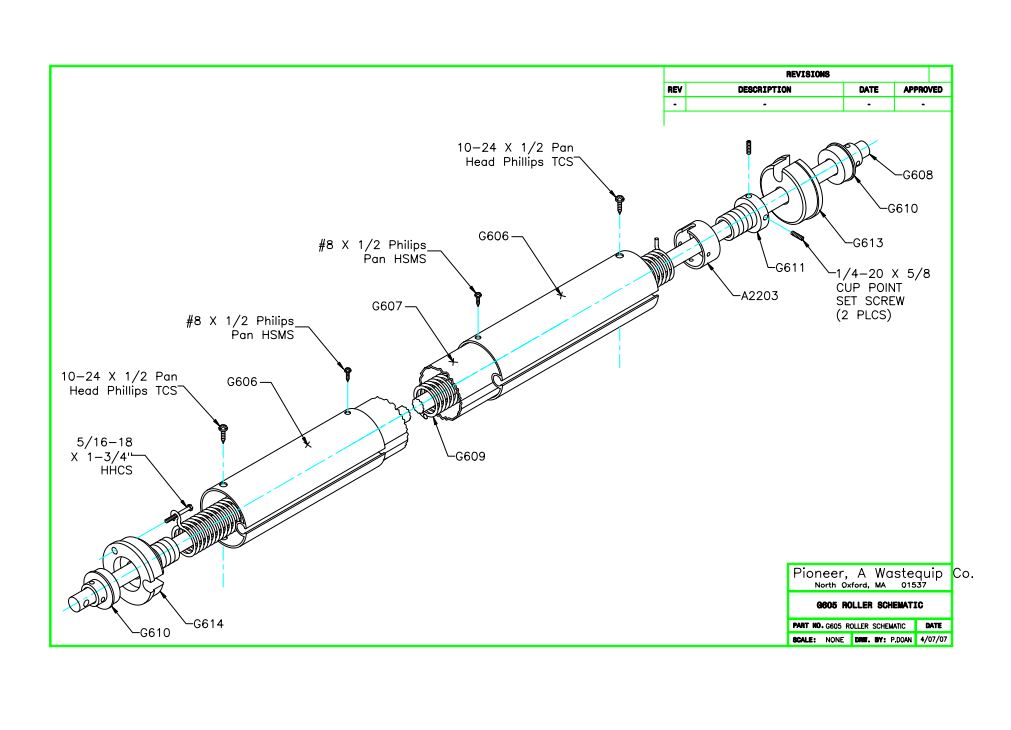

G605 Roller Assembly Components:

• G606 Outer Roll Tube (Qty: 2)
• G607 Center/Inner Roll Tube (Qty: 1)

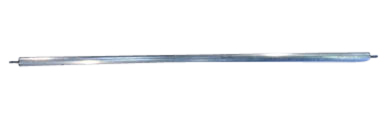

• G608 Roller Shaft with Hole 3/4" x 99" (Qty: 1)
• G609 Roller Spring (.162 wire) (Qty: 1)
• G610 Flanged Radial Bearings(Qty: 2)
• G611 Cone with Set Screws (Qty: 1)
• G613 Spacer (Qty: 1)
• G614 Cone/Spacer Assembly (Qty: 1)
• RMDDA DECAL (Qty: 1)
• A2203 Roller Spring Lock Ring (Qty: 1)
• 102412PHPTCS: 10-24 x 1/2 Pan Head Phillips (Qty: 4)
• 1420625CPSS: 1/4-20 x 5/8 Cup Point Set Scr (Qty: 2)
• 51618175HHCS5: 5/16-18 x 1 3/4" Hex Head Cap (Qty: 1)
• 812PPHSMS: #8 x 1/2in Philips Pan HSMS (Qty: 2)

Please feel free to Contact Us with any Questions. Thank You!
