1809708 Shur-Co (OEM) Flash™ Clamshell Pivot Spring Kit w/ Base - Adjustable 5 Spring (Both Sides)

1809708 Shur-Co (OEM) Flash™ Clamshell Pivot Spring Kit w/ Base - Adjustable 5 Spring (Both Sides)
Expected to ship within 2 to 3 business days.
Item #: 202731
Part #: 1809708
Price:
Add To Cart
1809708 Shur-Co (OEM) Flash™ Clamshell Pivot Spring Kit w/ Base - Adjustable 5 Spring (Both Sides)
Additional Photos
1809708 Shur-Co (OEM) Flash™ Clamshell Pivot Spring Kit w/ Base - Adjustable 5 Spring (Both Sides)
1809708 Shur-Co (OEM) Flash™ Clamshell Pivot Spring Kit w/ Base - Adjustable 5 Spring (Both Sides)
Item #: 202731
Part #: 1809708
Price:
Qty:
Add To Cart
Expected to ship within 2 to 3 business days.

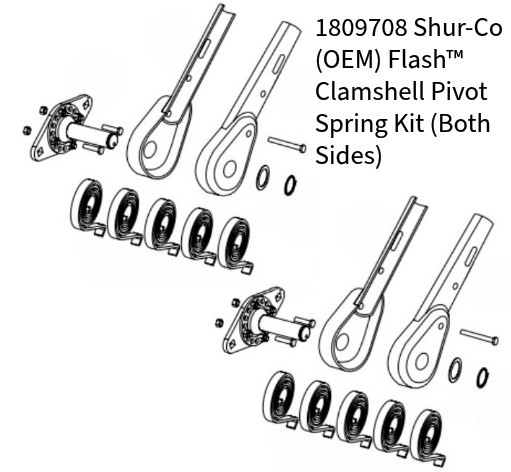

1809708 Shurco/Donovan Flash™ Clamshell Pivot Spring Kit w/ Base - Adjustable 5 Spring

Assembly Includes
  • (2) 1800769 Shur-Co (OEM) Flash™ Clamshell Housing Outer
  • (2) 1800934 Shur-Co (OEM) Flash™ Clamshell Housing Inner
  • (2) 1800977 Shur-Co (OEM) Shim - 1-1/4" x .047
  • (2) 1800978 Shur-Co (OEM) Retaining Ring - 1-1/4"
  • (2) 1809825 Shur-Co (OEM) Pivot Spring Assy W/Base Adjustment - 5-Spring
  • (10) 1800763 Shur-Co (OEM) Spring - Flat Coil Torsion
  • 1801407 Shur-Co (OEM) Pivot Mount Hdw

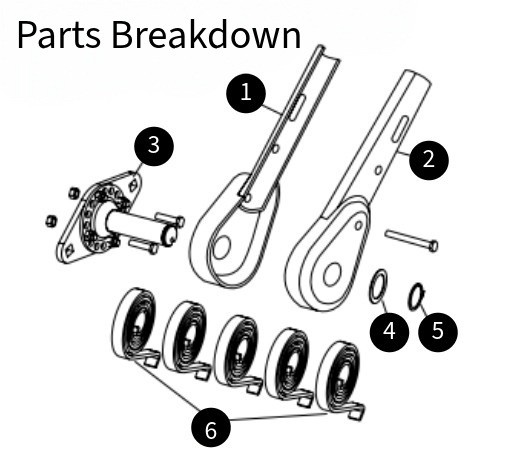

    • Parts Diagram Breakdown

  • 1 - 1800769 Shur-Co (OEM) Flash™ Clamshell Housing Outer
  • 2 - 1800934 Shur-Co (OEM) Flash™ Clamshell Housing Inner
  • 3 - 1800977 Shur-Co (OEM) Shim - 1-1/4" x .047
  • 4 - 1800978 Shur-Co (OEM) Retaining Ring - 1-1/4"
  • 5 - 1809825 Shur-Co (OEM) Pivot Spring Assy W/Base Adjustment - 5-Spring
  • 6 - 1800763 Shur-Co (OEM) Spring - Flat Coil Torsion
  • 7 - 1801407 Shur-Co (OEM) Pivot Mount Hdw (Not Pictured in Diagram)

    • Please feel free to Contact Us with any Questions. Thank You!
