Pioneer HR4766L Complete Driver Side Arm Assembly for RP4500 Strong Arm System

Pioneer HR4766L Complete Driver Side Arm Assembly for RP4500 Strong Arm System
Item #: 20244
Part #: HR4766L
Price:
Add To Cart
Additional Photos

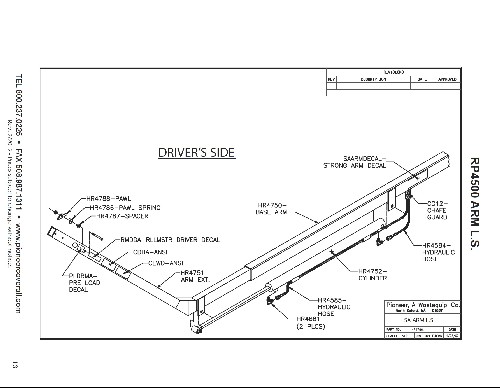

Documents Diagram
Pioneer HR4766L Complete Driver Side Arm Assembly for RP4500 Strong Arm System
Item #: 20244
Part #: HR4766L
Price:
Qty:
Add To Cart

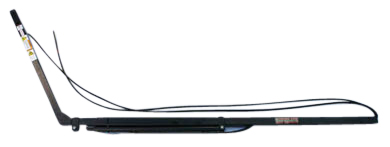

This HR4766L Complete Driver Side Arm Assembly is an integral part of Pioneer's RP4500 Strong Arm system.

Features include:
  • Arms made from 3/16 A500B Steel with a 1/4" extended, reinforced "C" Channel
  • Telescoping arms with a 36" stroke
  • Quick tarp attachment
  • Cylinders mounted externally for ease of accessibility and maintenance
  • Offset stabilizer bar reduces roller damage
  • Ratchet and pawl system tray for fast installation

Other parts included with the HR4766L:

Hydraulic hose (-4 x 16' Crimped 1 End), Hydraulic Hose (-4 x 19' Crimped 1 End), -6 SAE x -6 JIC M 90 degrees ELL, Base Arm, Arm Extension, Cylinder (36" stroke), and Chafe Guard (12").

The Rollmaster Difference

Beyond the Strong Arm technology, Pioneer?s RP4500SAR Rollmaster system uses a unique spring loaded roller assembly, creating a smooth rolling action with your fabric tarp. This roller assembly is so versatile, it can be mounted to the pivot arms on models with both adjustable gantries and stationary roll rests.

Pioneer's Rack 'n Pinion Strong Arm System

The Rollmaster RP4500SAR roller assembly features Pioneer's Rack 'n Pinion Strong Arm technology for greater control of your system's side arm movement, making it the trucker's choice for over a decade. The rack gear?s forward and backward movement is controlled by a hydraulic cylinder which works in conjunction with the pinion gear located at the base of the pivot arms. Known for reliability and low maintenance, this fully hydraulic system is state of the art. The technology allows for speed control and precision synchronization of the pivot arms as you raise and lower the cover to your container. Starting with the strengthened base arm, through the Rack 'n Pinion Pivot and on to the reinforced "C" Channel, the RP4500SAR provides better leverage, greater control, and longer life.


Please feel free to Contact Us with any Questions. Thank You!
