Pioneer HR4761A Mounting Bracket Assembly (Right-Side) for R&P Strong Arm

Pioneer HR4761A Mounting Bracket Assembly (Right-Side) for R&P Strong Arm
Item #: 20243
Part #: HR4761A
Add To Cart
Additional Photos
Pioneer HR4761A Mounting Bracket Assembly (Right-Side) for R&P Strong Arm
Item #: 20243
Part #: HR4761A
Add To Cart

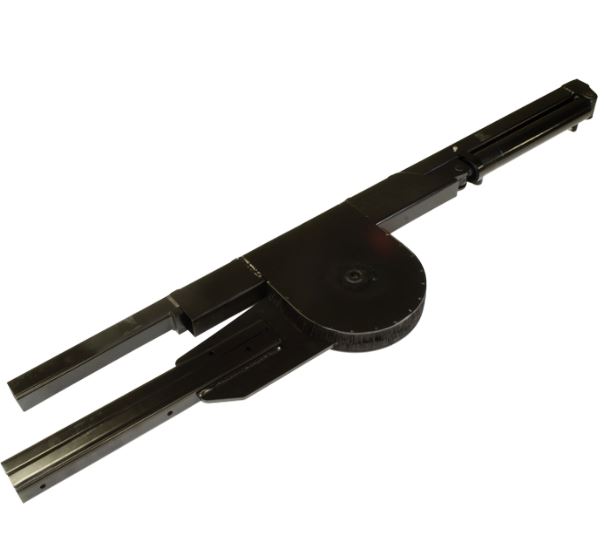

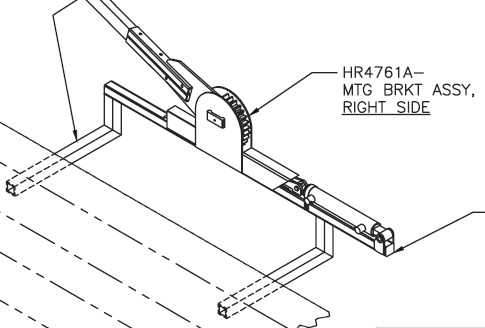

The HR4761A is the right side mounting bracket assembly for the RP4500SATR rolloff trailer. This trailer is part of the Pioneer Strong Arm system.

Rack 'n Pinion Strong Arm System

The Rollmaster RP4500SAR roller assembly features Pioneer's Rack 'n Pinion Strong Arm technology for greater control of your system's side arm movement, making it the trucker's choice for over a decade. The rack gear's forward and backward movement is controlled by a hydraulic cylinder which works in conjunction with the pinion gear located at the base of the pivot arms. Known for reliability and low maintenance, our fully hydraulic system is state of the art. This technology allows for speed control and precision synchronization of the pivot arms as you raise and lower the cover to your container. Starting with the strengthened base arm, through the Rack 'n Pinion Pivot and on to the reinforced "C" Channel, the RP4500SAR provides better leverage, greater control, and longer life.

  • Arms made from 3/16 A500B steel with a 1/4" extended, reinforced "C" Channel
  • Telescoping arms with a 36" stroke
  • Quick tarp attachment
  • Cylinders mounted externally for ease of accessiblity and maintenance
  • Offset stabilizer bar reduces roller damage
  • Ratchet and pawl system tray leads to fast installation

The Rollmaster Difference

Beyond the Strong Arm technology, Pioneer's RP4500SAR Rollmaster system uses a unique spring loaded roller assembly, creating a smooth rolling action with your fabric tarp. This roller assembly is so versatile, it can be mounted to the pivot arms on models with both adjustable gantries and stationary roll rests.

Parts Included with the HR4761A:

Rack Gear Assembly, Arm Pivot Pin Kit, Cylinder Pin long, Right side Mounting Bracket Assembly, Cylinder Pin short, Cylinder 16" stroke, Cylinder Hold Down Strap, Base Arm Gear Assembly, Brush (left or right) and Castle Nut.

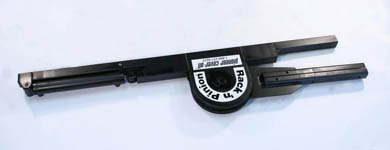

The Left-Side Mounting Bracket Assembly can be found here

Please feel free to Contact Us with any Questions. Thank You!
