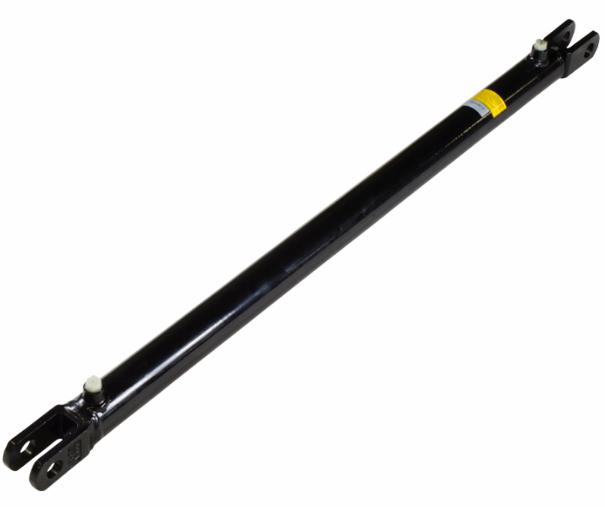

The Gantry Cylinder (part number HR4520) has a 36" lift. This part is used in the Pioneer Strong Arm Systems.
Rack 'n Pinion Strong Arm System
The Rollmaster RP4500SAR roller assembly features Pioneer’s Rack ‘n Pinion Strong Arm technology for greater control of your system’s side arm movement, making it the trucker's choice for over a decade. The rack gear’s forward and backward movement is controlled by a hydraulic cylinder which works in conjunction with the pinion gear located at the base of the pivot arms. Known for reliability and low maintenance, our fully hydraulic system is state of the art. This technology allows for speed control and precision synchronization of the pivot arms as you raise and lower the cover to your container. Starting with the strengthened base arm, through the Rack 'n Pinion Pivot and on to the reinforced "C" Channel; the RP4500SAR provides better leverage, greater control and longer life.
Cylinders mounted externally for ease of accessiblity and maintenance

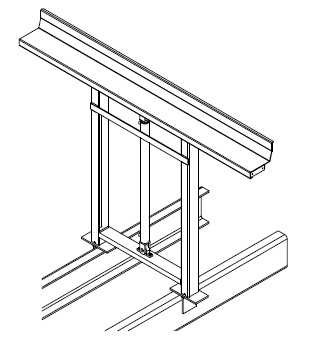

Rollmaster with Adjustable Gantry
The RP4500SAR model comes with the Rollmaster roller assembly, fixed legs, roll rest for limited space behind the cab, our standard tarp and patented telescoping Low-Arms with nitrided (case hardened) external cylinders.
This model is for use with 22' to 24' hooklift trucks, cable hoist trucks, trailers transporting containers of various heights and trucks where space behind the cab is limited.
Gantry cylinder only.
