Roller and Windscreen Assembly for HR2000 Hi-Roller Tarping System

The HR2052 Roller and Windscreen Assembly is an integral component of the HR2000 Hi-Roller Armless Tarp System.

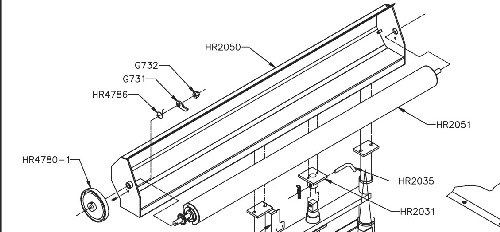

Pawl, pawl spacer, pawl spring, windscreen assembly, and roll assembly.

Pioneer's Hi-Rollers are a cost-effective alternative to arm systems. This semiautomatic, "armless" tarping system is designed for single axle and multi-axle hooklifts and cable hoists that cover 20-, 30- and 40-yard open top containers. The unique design provides easy access to narrow streets or alleys.

• A two-stage, heavy-duty cylinder which extends the gantry to 13'
• No gusseting required as the strong and solid hydraulic gantry system has self-contained support members
• 12-volt power pack
• Gantry adjustable from 68" to 156"
• Audible and visual "Up-Gantry" alarm system for your cab provides increased safety
• Smooth, quiet, and simple operation due to minimized play between stages as gantry legs are deployed through bearing rings
• No chains, sprockets or pulleys means fewer moving parts
• 8' by 30' shade mesh tarp with pigtail tie-down system

Please feel free to Contact Us with any Questions. Thank You!
