HR1508 Hydraulic Tarp Motor and Gearbox Assembly | Pioneer OEM Replacement

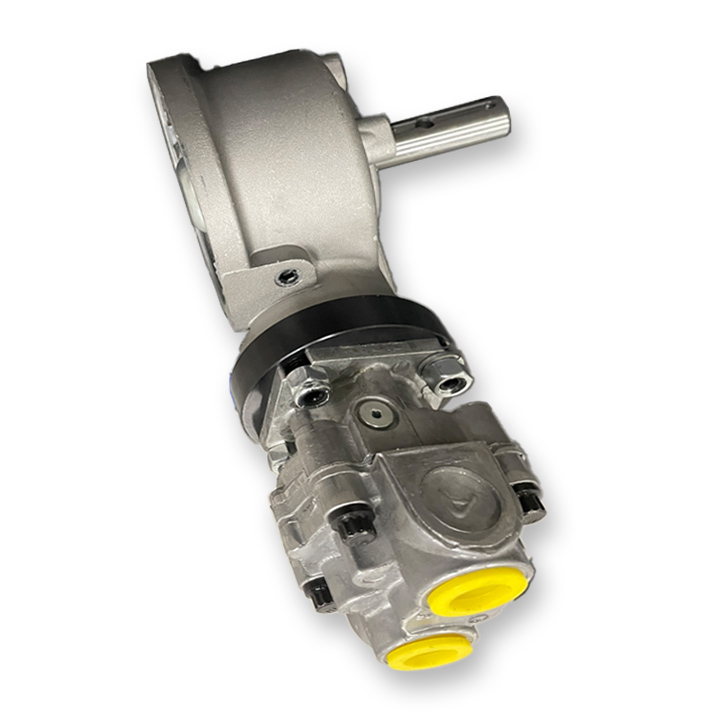

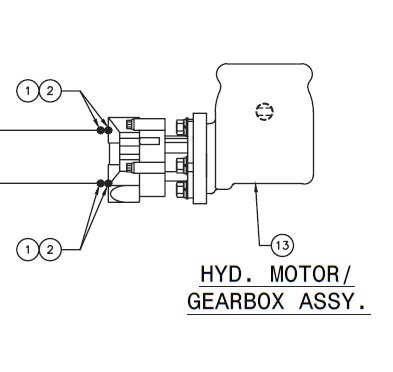

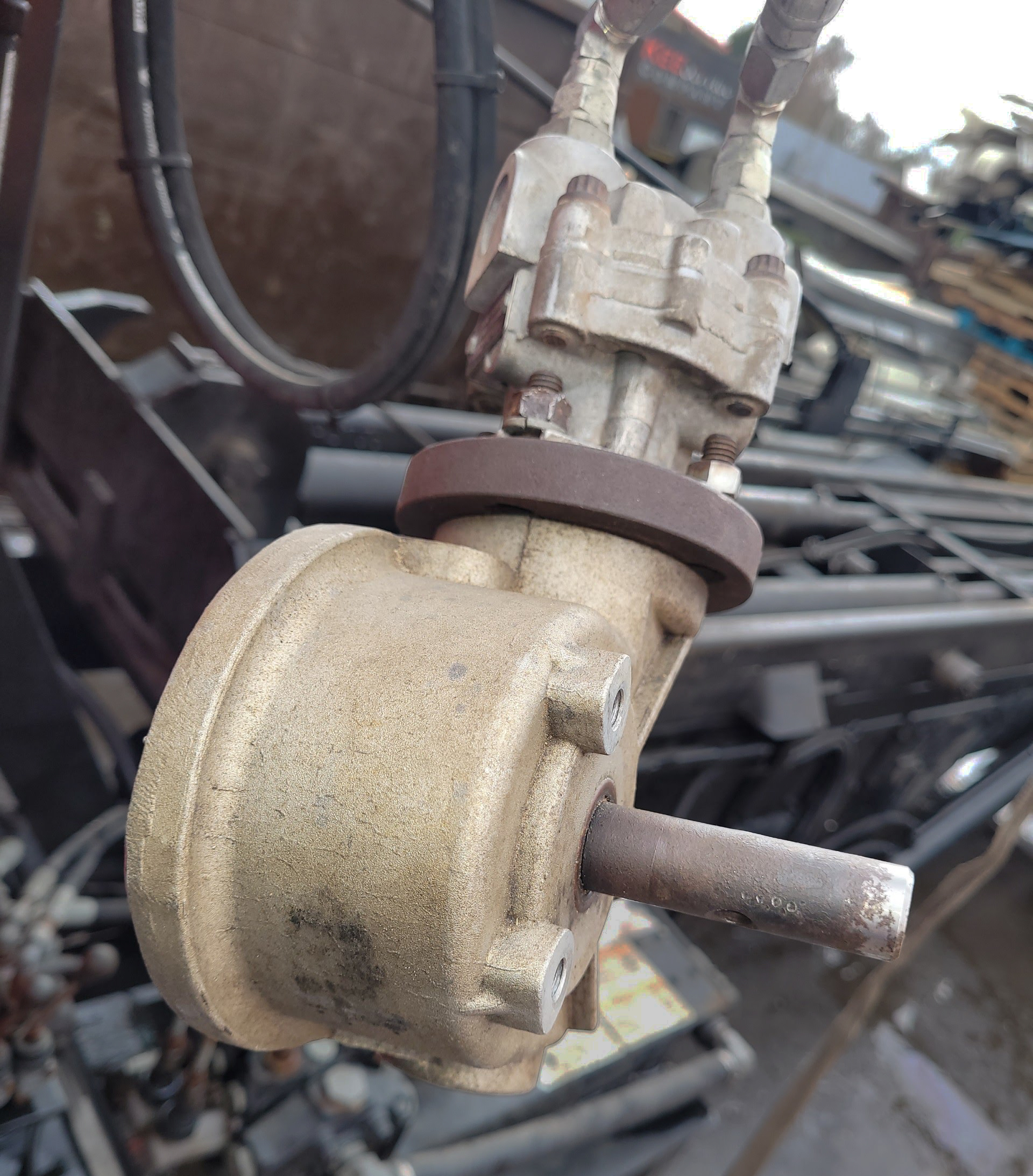

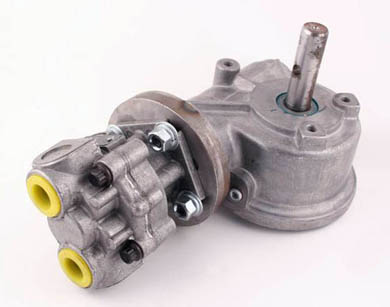

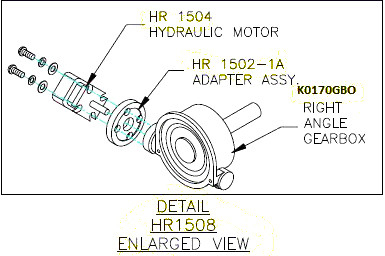

The Pioneer HR1508 Hydraulic Tarp Motor Assembly includes an HR1504 Hydraulic Motor mounted to a K0170GBA 90:1 Right-Angle Gearbox (HR1502-1A Angle Adapter included). The 90:1 right-angle gearbox connects directly to the tarp roller. The hydraulic motor drives the gearbox but requires the adapter plate to properly connect the two pieces. The hydraulic tarp motor assembly features a 3/4" shaft and is designed for use on Pioneer HR1500 Tarping Systems.

• Flow diverter - 5 GPM constant flow from control port side
• Cover control valve - Open center configuration, double manually operated 4 way valves, adjustable pressure relief valve
• Shaft is 2-1/2" long and 3/4" in diameter

Please feel free to Contact Us with any Questions. Thank You!
