HR1500 Roll Off Tarp System
This steel system is for multi-axle roll-off trucks that carry containers from 16' to 24' in length. The most economical automatic tarping system offered for these trucks, the HR1500PTO Econocover comes with an adjustable gantry, right angle direct drive hydraulic motor and torsion spring-activated pivot arms. Your options include reinforced, unbreakable steel arms. This system also has heavy duty torsion spring arms, a gantry range of 60" to 96" and a heavy duty mesh tarp included. The quality design yields lower maintenance and provides for fast, easy installation (estimated 8 hours).
Features:
- Comes with a 9' wide tarp made of expandable heavy duty mesh.
- Hydraulic motor/gearbox assembly winds and unwinds the tarp using the truck's existing hydraulics
- Fixed length, pivoting arms made from heavy duty steel tubing are powered by reverse wound torsion springs
- Hydraulic powered adjustable gantry moves vertically from 60" to 96"
- Works with 22' - 24' containers.
- Recommended for tandem and tri-axle hook lift trucks and cable/roll-off trucks and trailers.
- Handles 20yd to 50yd containers up to 24' long
The Econocover Advantage
The HR1500PTO uses your truck's hydraulic system and is powered by our right angle hydraulic direct-drive motor/gearbox combo. The roller assembly is mounted to the adjustable gantry tower with a vertical range of 60" to 96". To deploy the tarp, the motor unwinds the cover from the roller while the spring loaded heavy duty steel arms move towards the back of the load. The standard tarp for this system is the 9' wide expandable Heavy Duty Mesh. This fixed-arm system is an excellent choice when hauling the same sized containers (length and height). Most dumpsters are 22' long, but the system works on 24' as well. If you haul multiple sizes of containers, you can set the system up for the longest container, and then let the arms hang over the back of the shorter containers, or you can get the HR2500 which has additional adjustability.
Notes on Adjustable Gantry:
The purpose of the adjustable gantry is to extend the life of the tarp. It allows you to gently lower the tarp over your load instead of dragging it across, which will significantly reduce damage and wear. All gantries, telescopic or fixed, require 10" of clearance for the roller rest, though a fixed gantry can sometimes be modified for limited clearance.
Parts Included:
- 9' wide expandable Heavy Duty Mesh Tarp
- Roll Pin (5/16" x 1-1/2')
- Arm Mounting Bracket (5/8")
- Retaining Ring
- Left and right Base Arm
- Upper Arm 13' Steel
- Cover Spring
- Left and right side steel bow
- Clevis eye pad
- Rear Section 9' Steel
- 90 degree ELL
- Clevis Pin with cotter
- 3 Adapters
- Roller Assembly
- complete Gantry Assembly
- -8 SAE M x -8 JIC M ELL
- Flow Diverter at 5 GPM
- -4 SAE M Plug
- Chassis Mounting Angle
- Hydraulic Cylinder with 36" Lift
- Cover Control Valve (2 spool)
- -6 x 9' hose, -6 x 6' hose
- -6 JIC M x -6 JIC F 90 degree ELL
NOTE: Tray requires 10 to 12 inches space behind cab.
Replacement Covers Available
9-1/2' x 28' Reinforced Black Mesh, 9-1/2' x 28' Cordura (Pennsylvania DOT spec), 8' x 28' Tuff Cover Mesh for scrap applications
This is the steel model, click here for aluminum.
If you need to replace the arms only, you will need these parts:

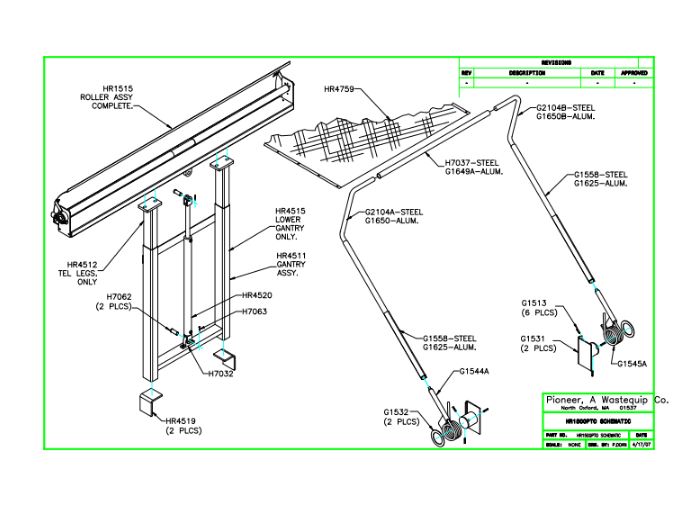

Roller replacement involves 3 parts: left, center, and right side roll, in addition to any springs, bearings, or other parts that may need to be replaced. See diagrams for complete replacement parts.
