Pioneer HR1500E Tuff Tarper Refuse Tarping System - Aluminum

Pioneer HR1500E Tuff Tarper Refuse Tarping System - Aluminum
Item #: 20068
Part #: HR1500EAL
Price:
Add To Cart
Additional Photos
Documents Diagram
Roller
Pioneer HR1500E Tuff Tarper Refuse Tarping System - Aluminum
Item #: 20068
Part #: HR1500EAL
Price:
Qty:
Add To Cart

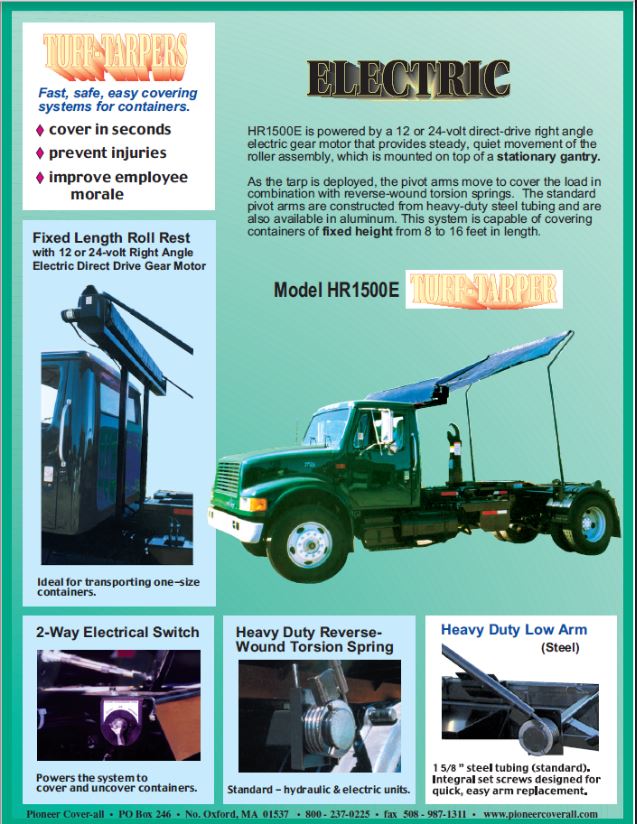

Tuff-Tarper Series

Tuff-Tarper systems are designed for single-axle, cable hoist and hooklift trucks. These systems can cover open-top containers ranging from 8' to 16' in length and are available in semiautomatic, automatic and hydraulic versions. Pioneer calls them "the utility knife of the trucking world" because they're so versatile and user-friendly. The HR1500E is an ideal choice if you handle same-size containers.

HR1500EAL

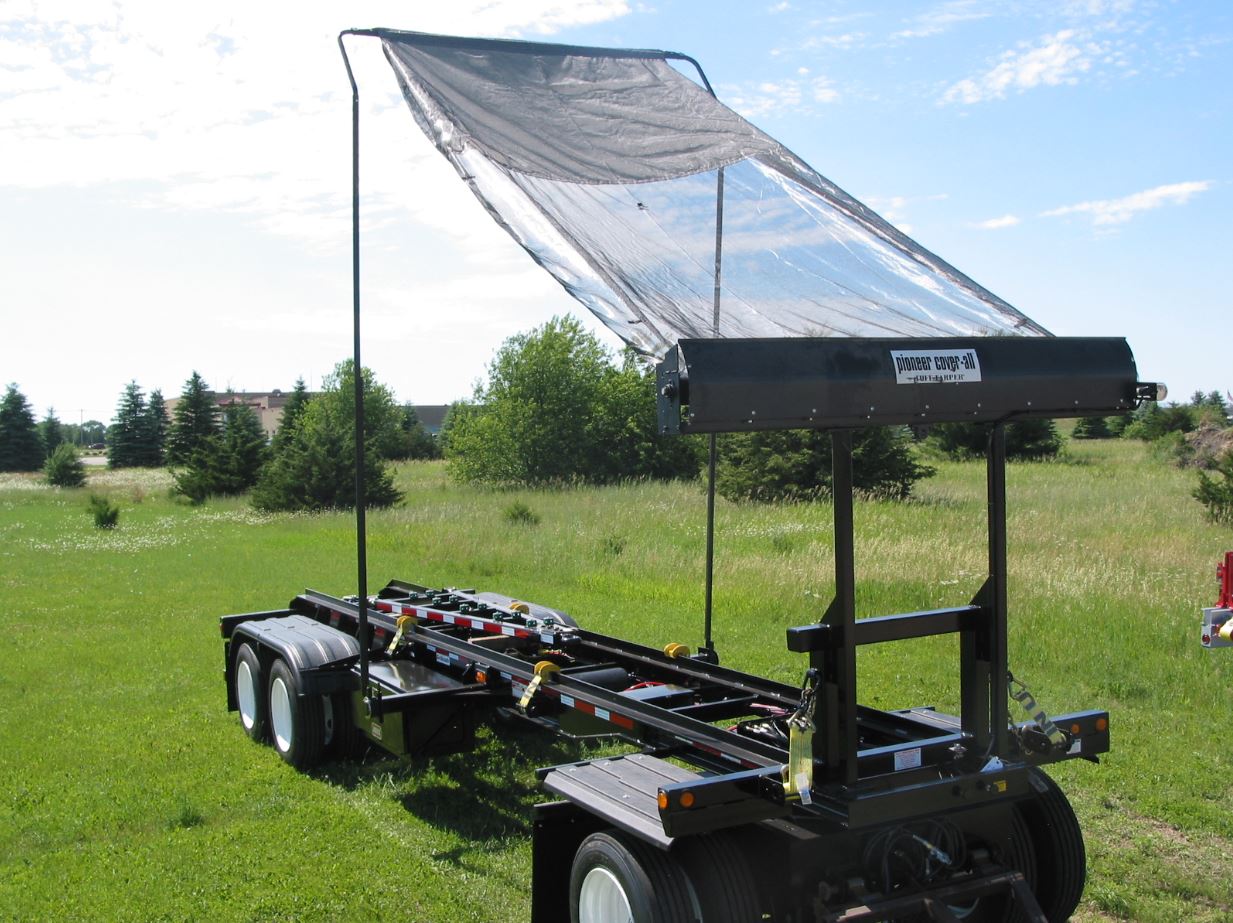

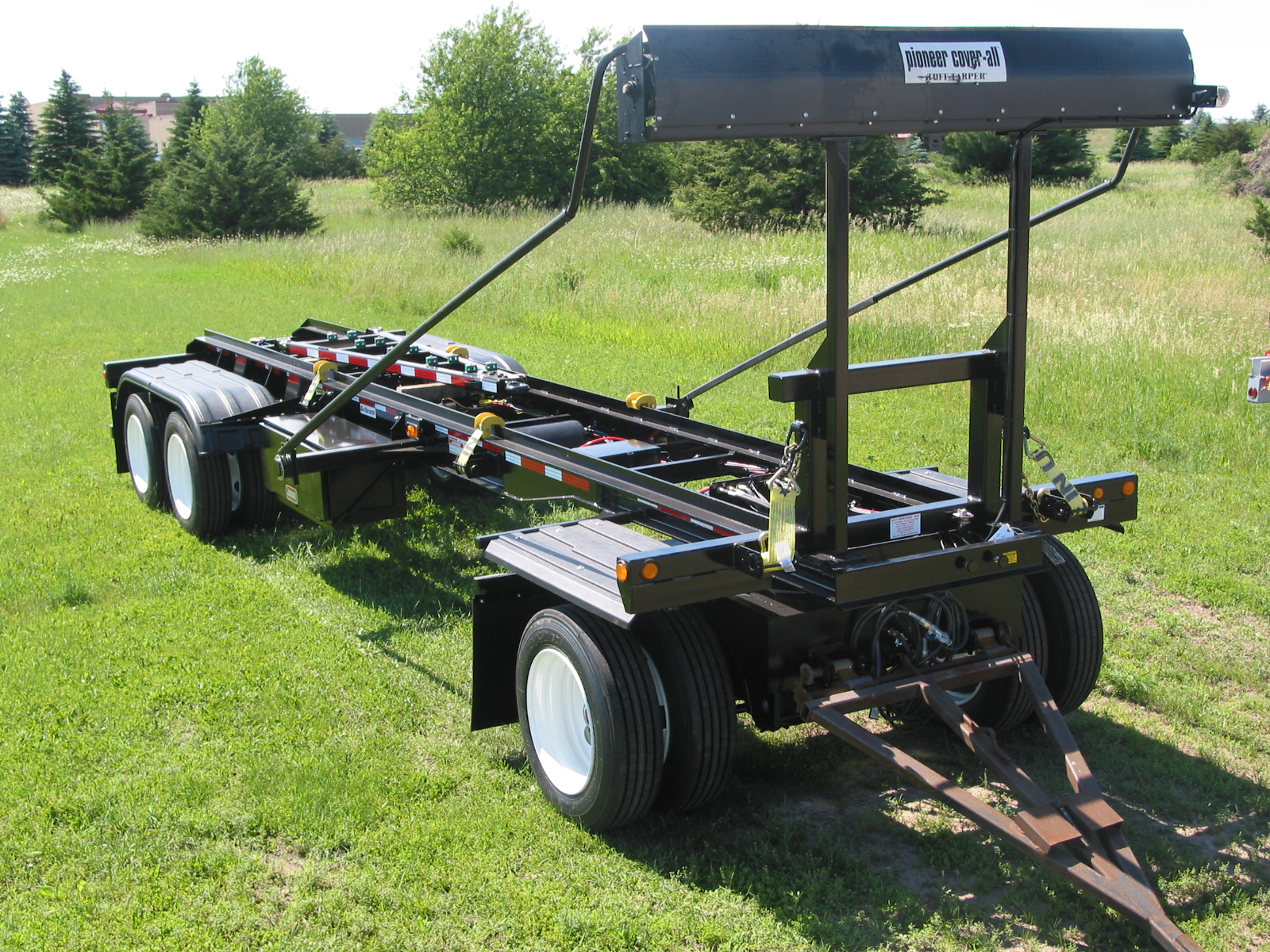

The Tuff-Tarper HR1500EAL is powered by a 12-volt DC, direct-drive, right angle, electric motor driven gearbox that provides steady, quiet, efficient movement. A two-way electrical switch provides for quick covering and uncovering. The roller assembly is mounted on top of a fixed gantry. The HR1500EAL comes with heavy duty, reinforced aluminum framework, side-mounted pivot arms. Deployment is made easier by heavy duty reverse-wound torsion springs that assist with pivot arm movement. Switching is made easier to prevent injuries and be more user-friendly. This unit has a fixed gantry (63" from top of chassis) and comes with a 9' wide, expandable, heavy-duty mesh tarp.

Notes on Fixed Gantry:

A "fixed" or stationary gantry is adequate for most applications. The difference between the fixed and the adjustable hydraulic gantry is that the adjustable gantry allows you to gently lower the tarp over your load instead of dragging it across, which will significantly reduce damage and wear. All gantries, telescopic or fixed, require 10" of clearance for the roller rest, though a fixed gantry can sometimes be modified for limited clearance.

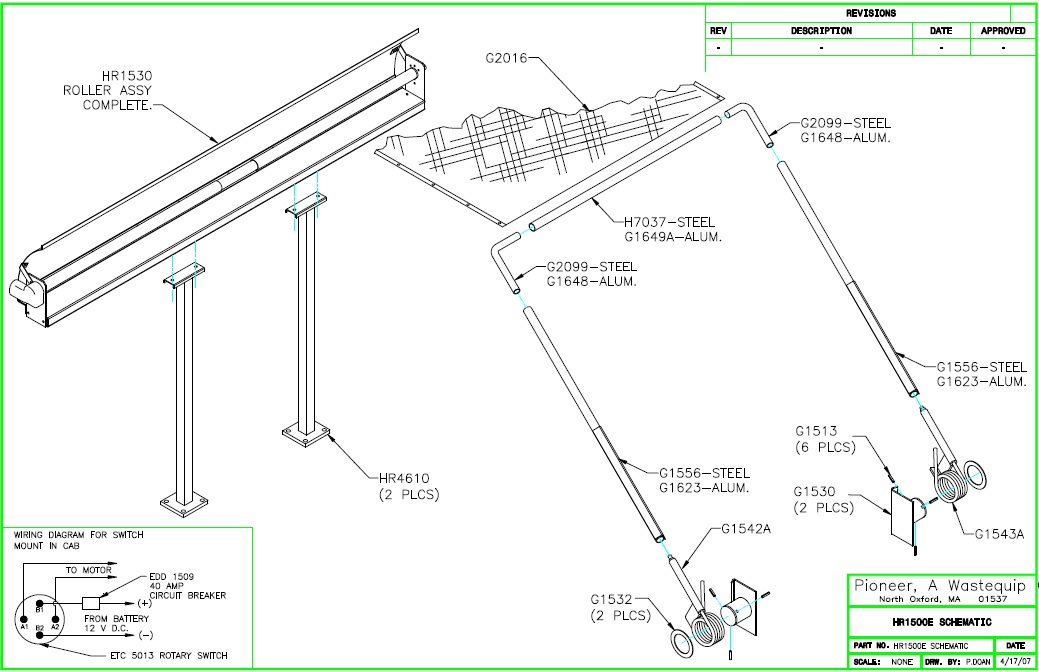

Parts Include:
  • Chromed cover (TR Motor)
  • 40A Circuit Breaker (8/19' unit)
  • Rotary Switch Kit with Bracket
  • Roll pin (5/16" x 1½' )
  • Arm mounting bracket
  • Retaining side ring mount
  • Left and right base arm with torsion springs
  • Upper arm 9½' (Aluminum)
  • Straight bow corner
  • Cover spring
  • Bow corner- Aluminum, rear section

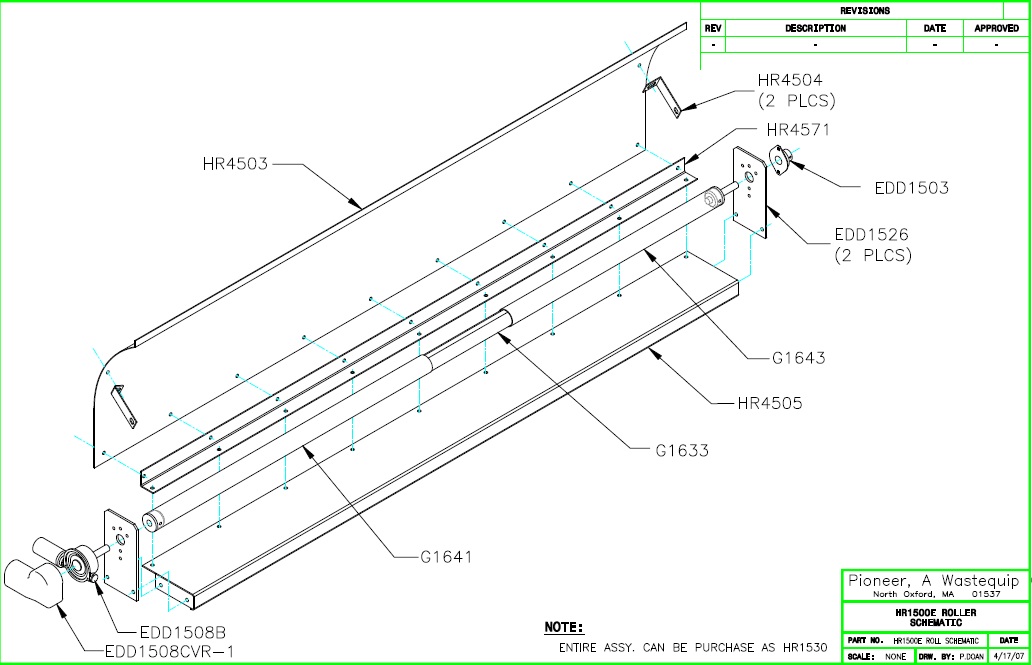

  • Roller Assembly
  • Fixed Leg Assembly and U Bolt

Replacement Covers Available:

9' x 19' heavy-duty mesh and 9' x 19' deluxe asphalt

See the steel version of the H1500E here.

Please feel free to Contact Us with any Questions. Thank You!
