Tarp-hd-1000 Tarp Loader Forklift Attachment w/ 3x6 Pocket

Tarp-hd-1000 Tarp Loader Forklift Attachment w/ 3x6 Pocket
Item #: 10050
Part #: Tarp-hd-1000
Price:
Add To Cart
Documents Tarp loader specs
Tarp-hd-1000 Tarp Loader Forklift Attachment w/ 3x6 Pocket
Item #: 10050
Part #: Tarp-hd-1000
Price:
Qty:
Add To Cart

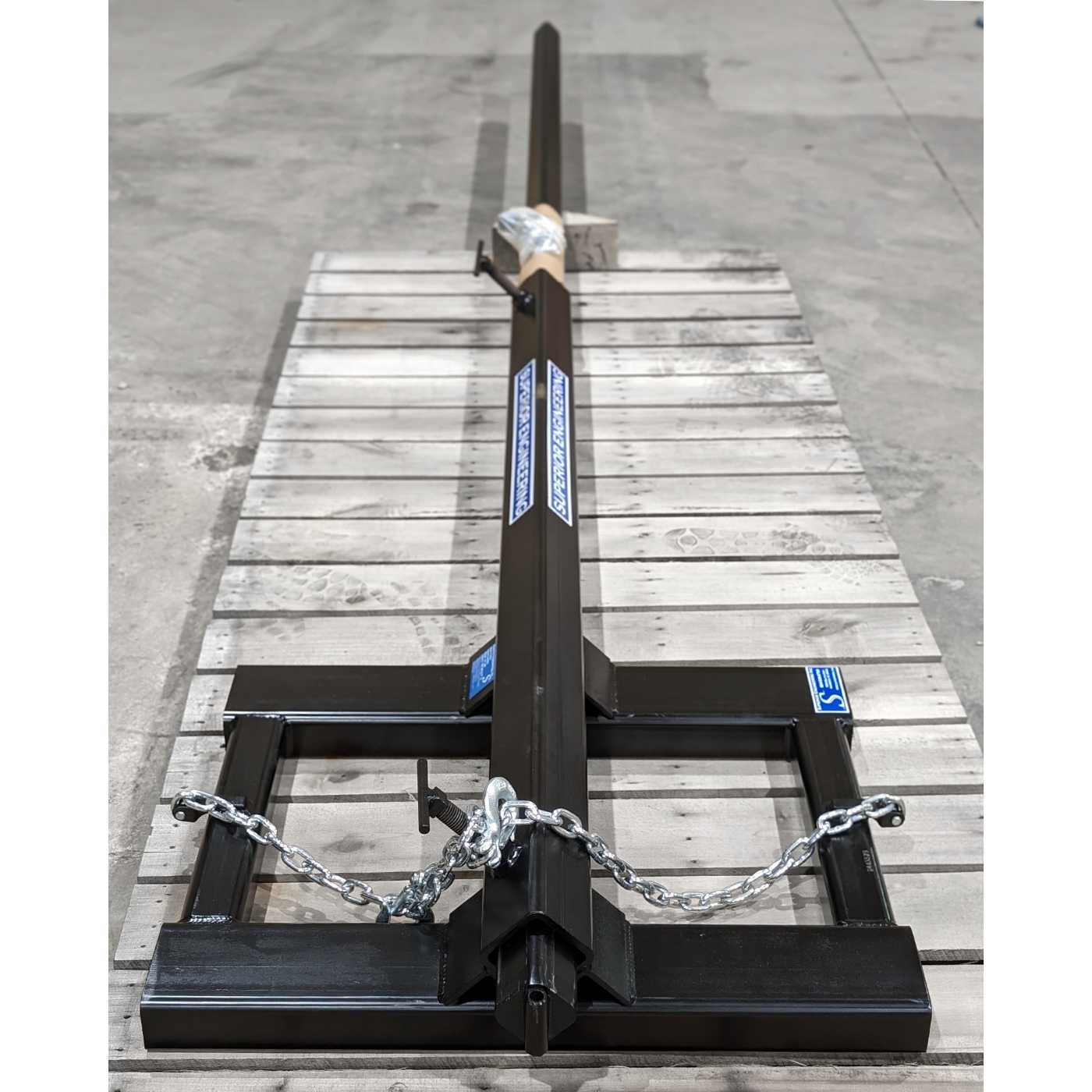

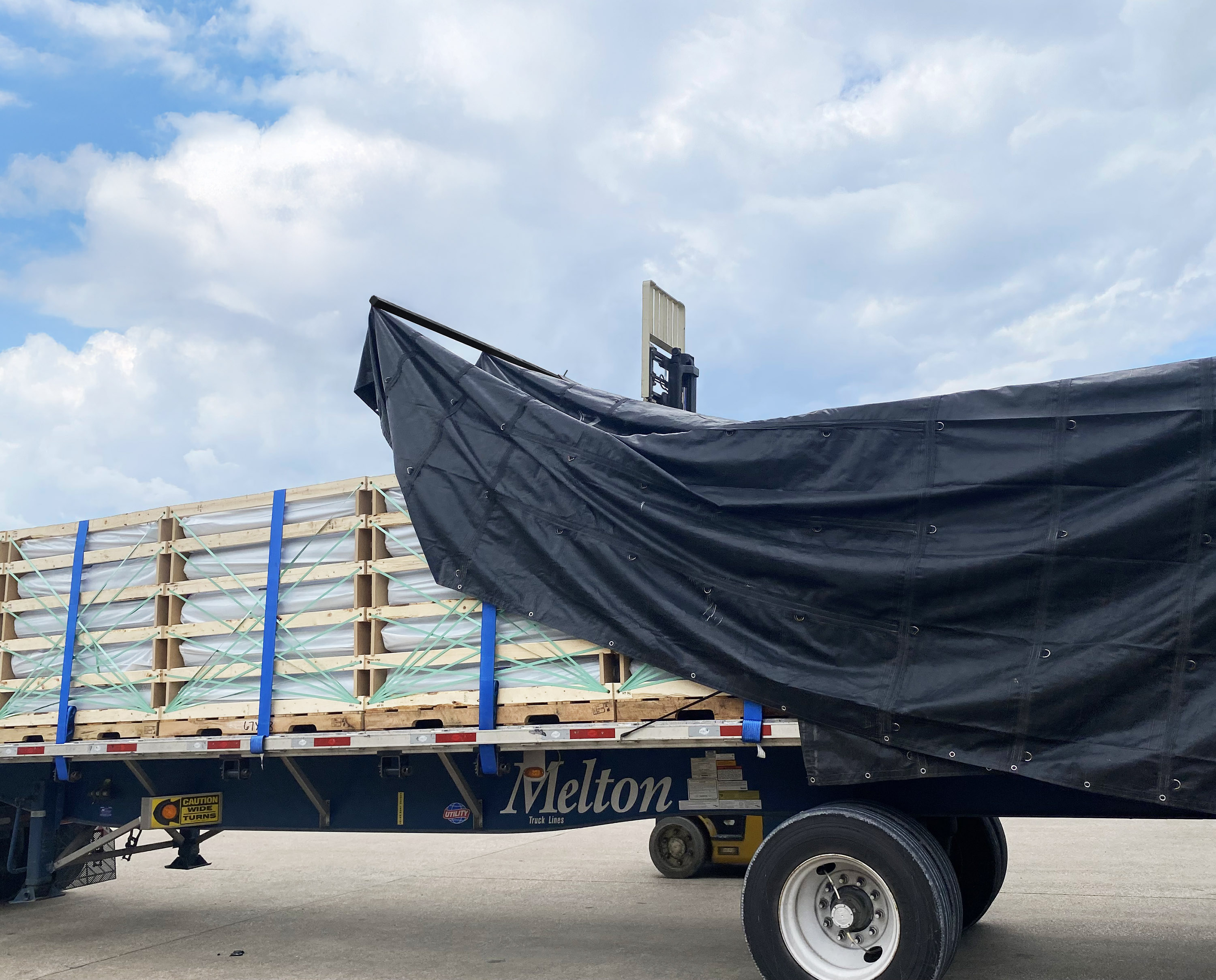

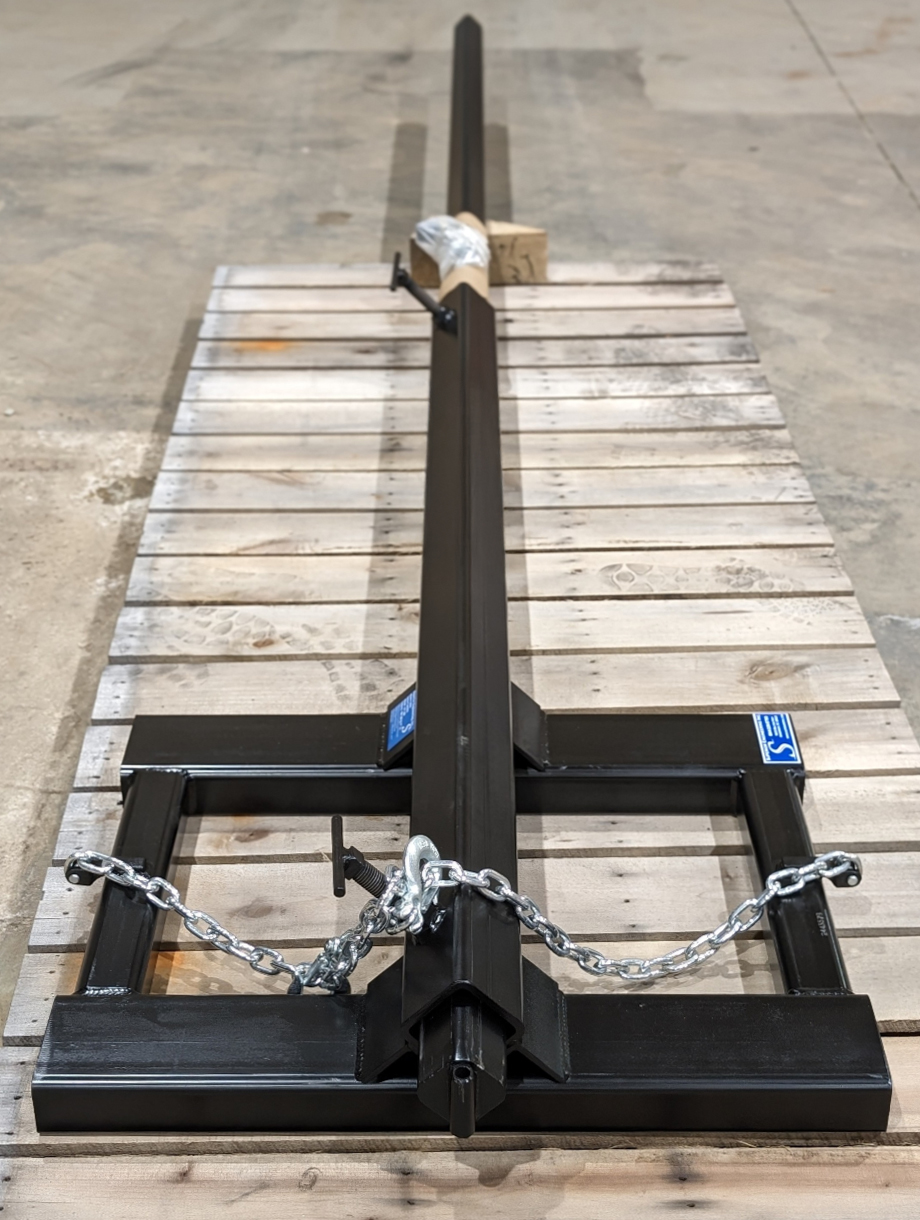

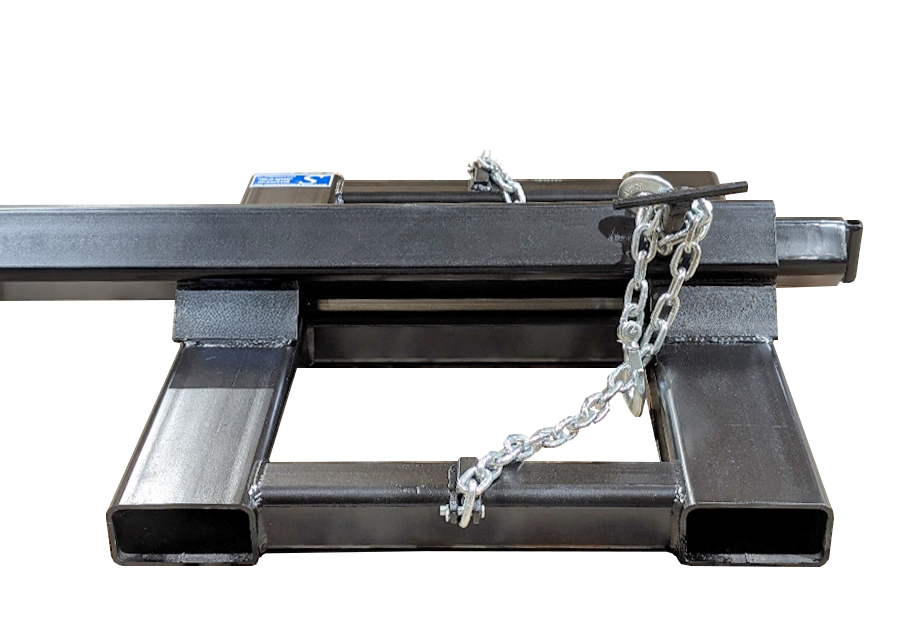

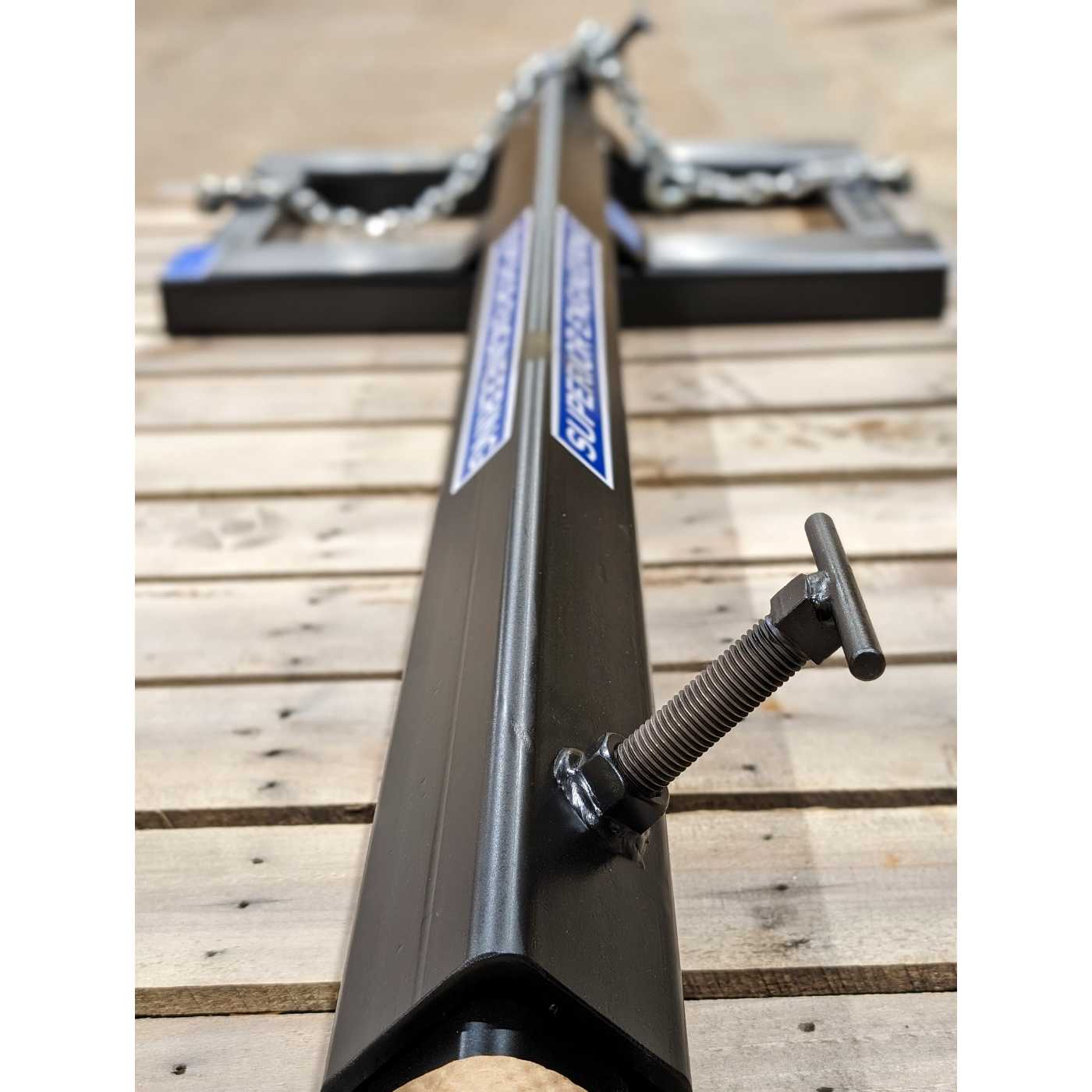

The Tarp-hd-1000 Tarp Loader Forklift Attachment is a fork mounted unit that allows the operator of a lift truck to safely spread a tarp over the top of a loaded trailer. The tarp spreader utilizes prongs to attach the tarp grommets so that it will help evenly spread the tarp as the operator drives forward, The unit can be utilized as a left hand spreader or a right hand spreader. The operator simply drives the forks into the fork pockets in the opposite direction. T-Handle locks ensure that the unit will not slip off of the forks once tightened by the operator. A safety chain prevents the unit from accidentally falling off.

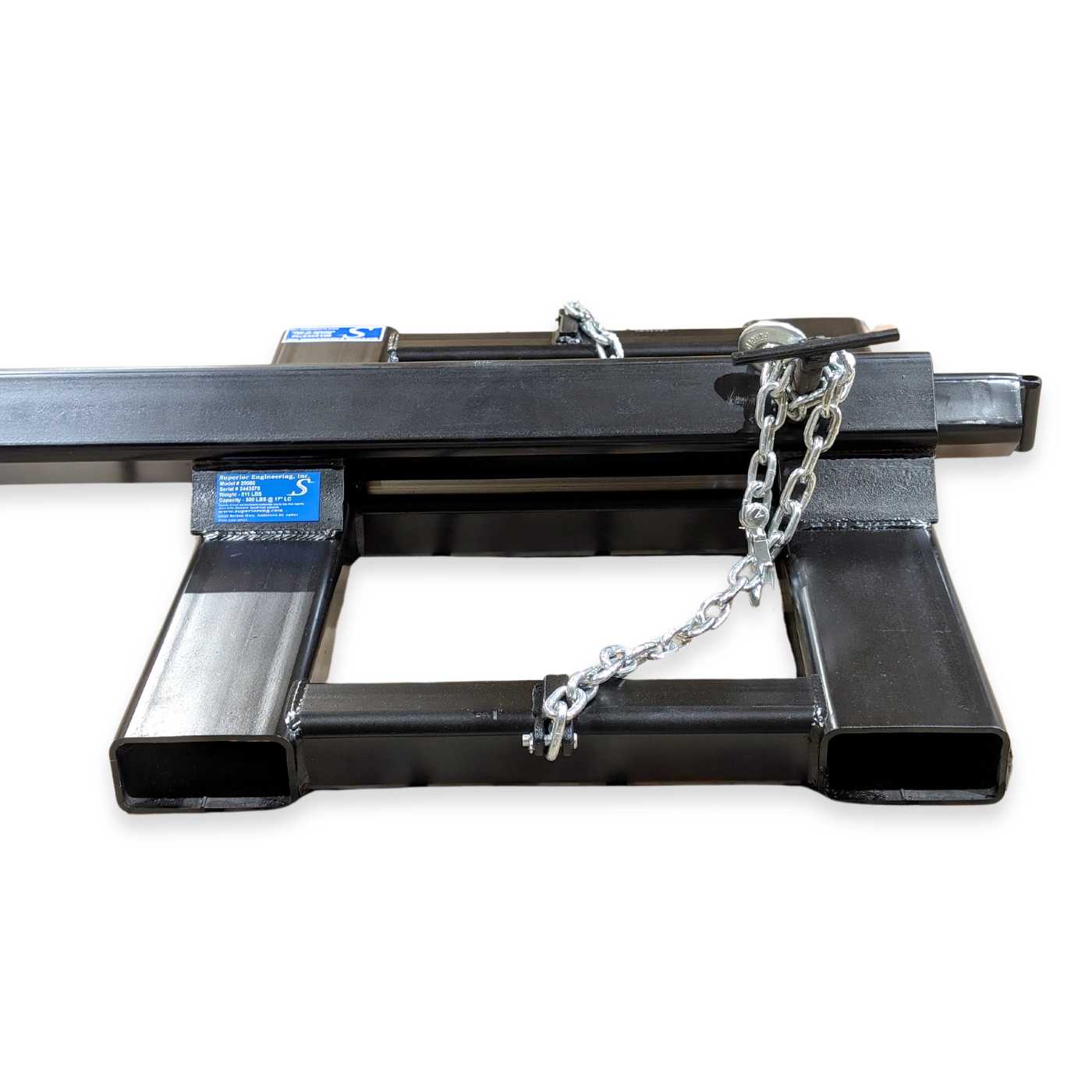

Tarp spreader fork pocket opening: 2.5" X 5.5" I.D.
Standard pocket is 3x6, with 3x8 upgrade available for larger forks.

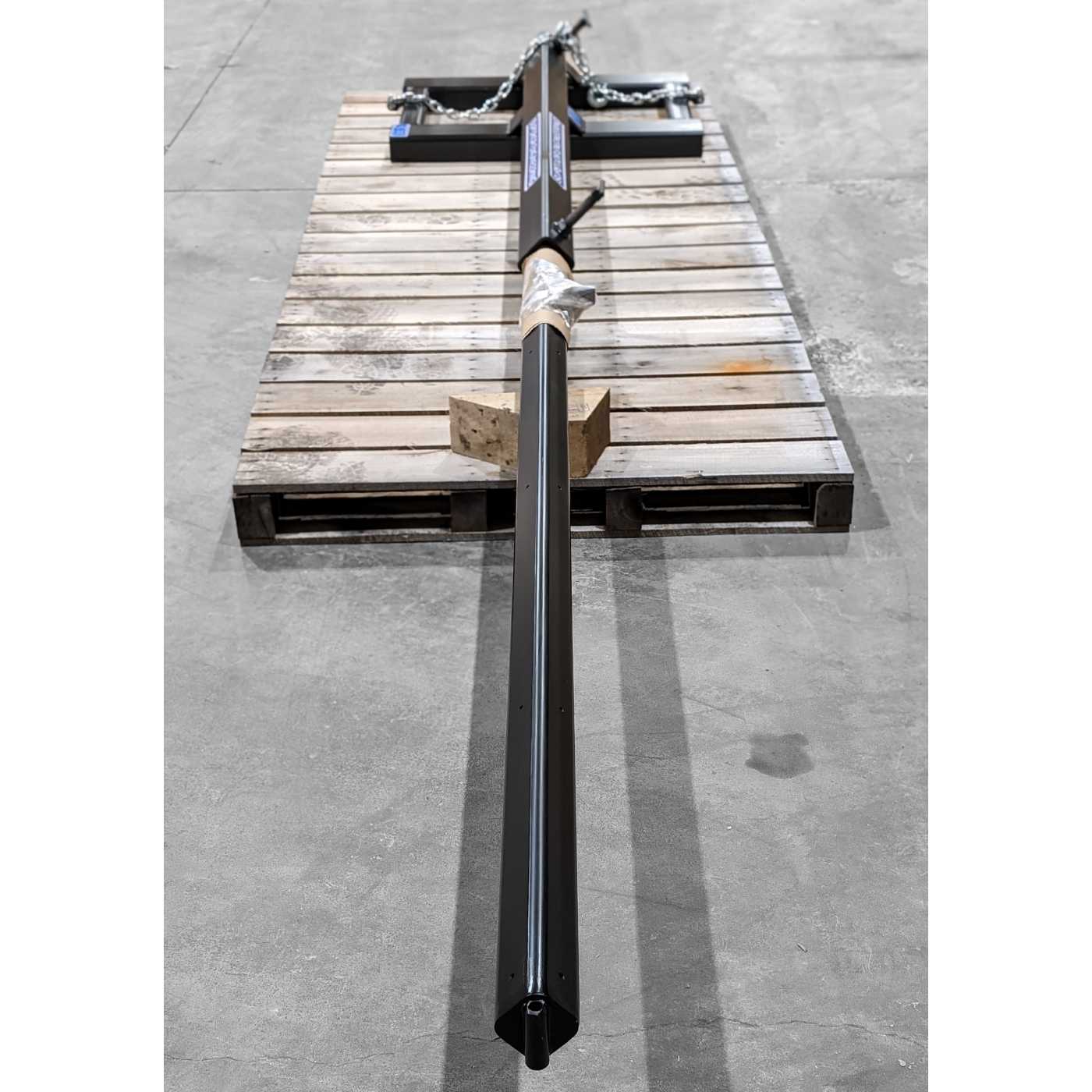

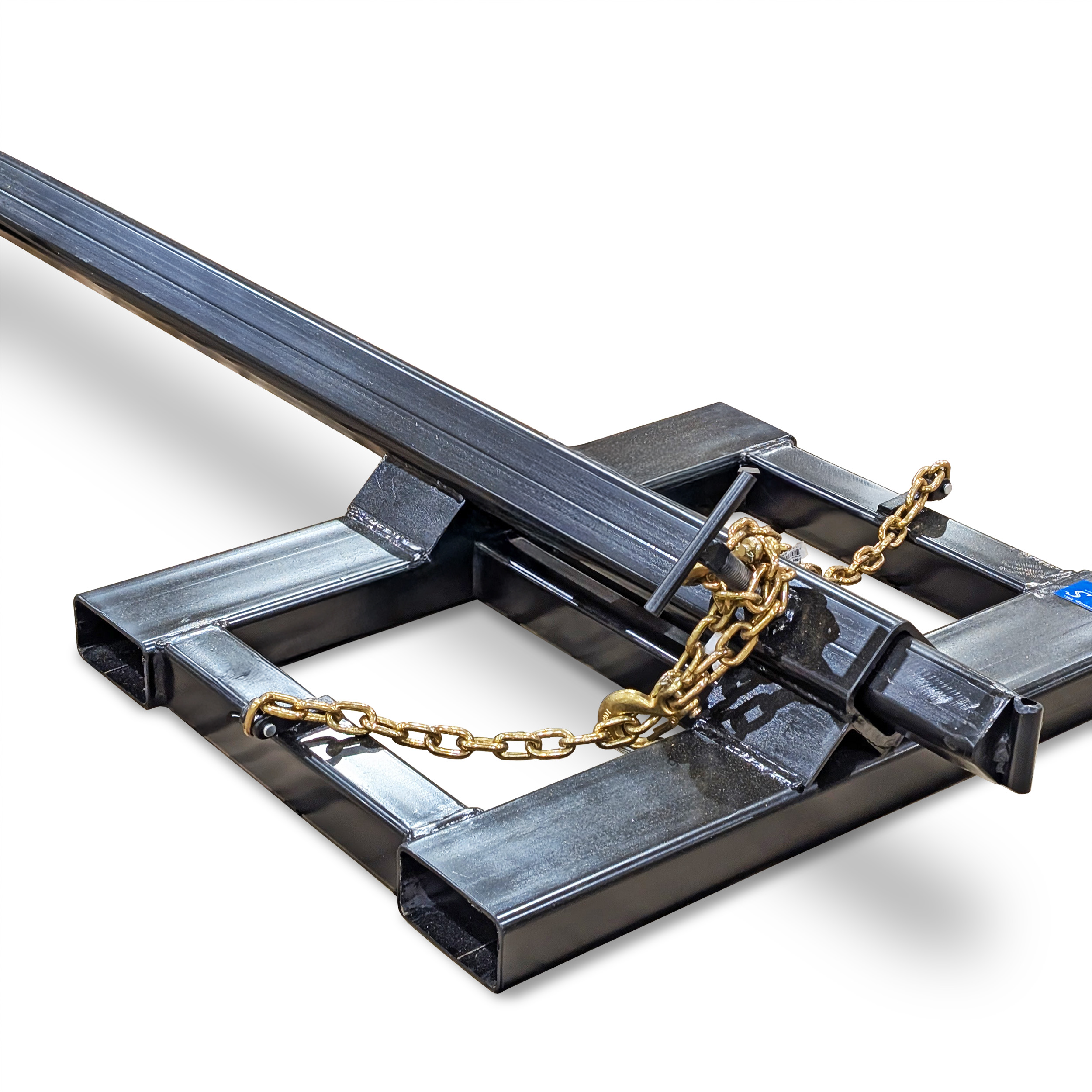

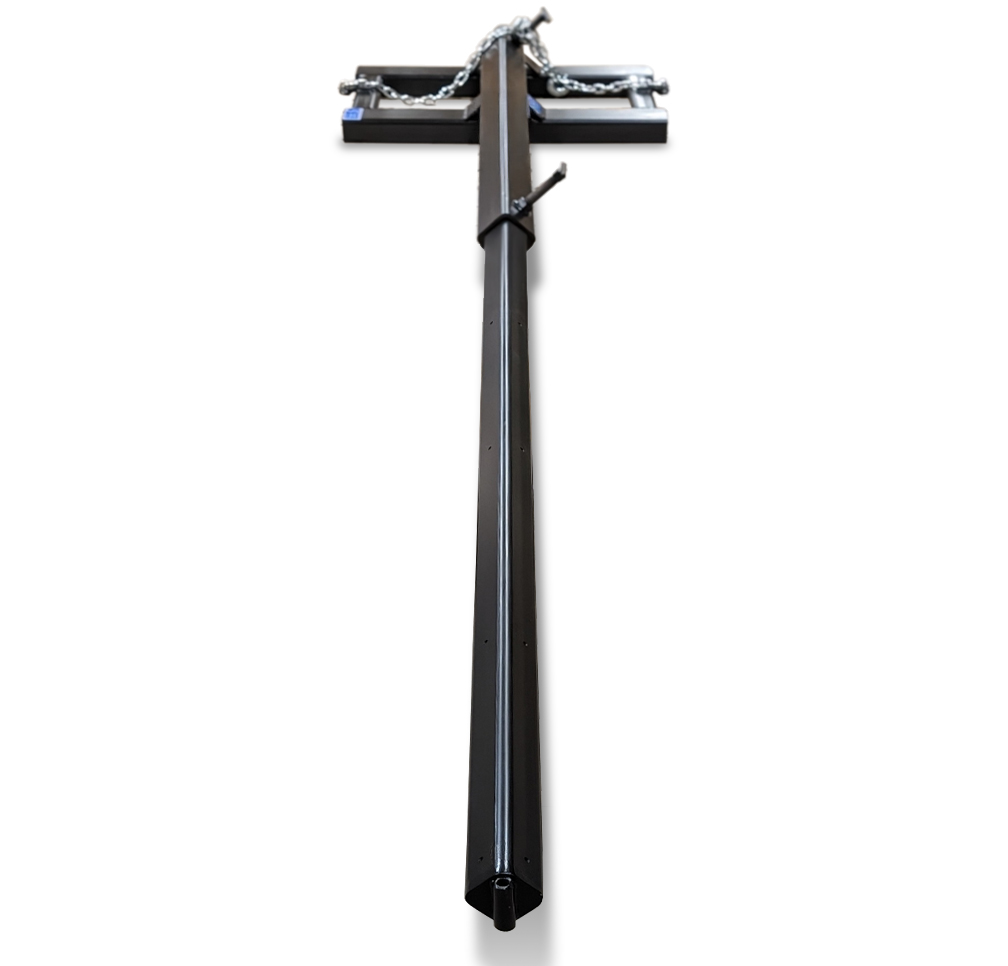

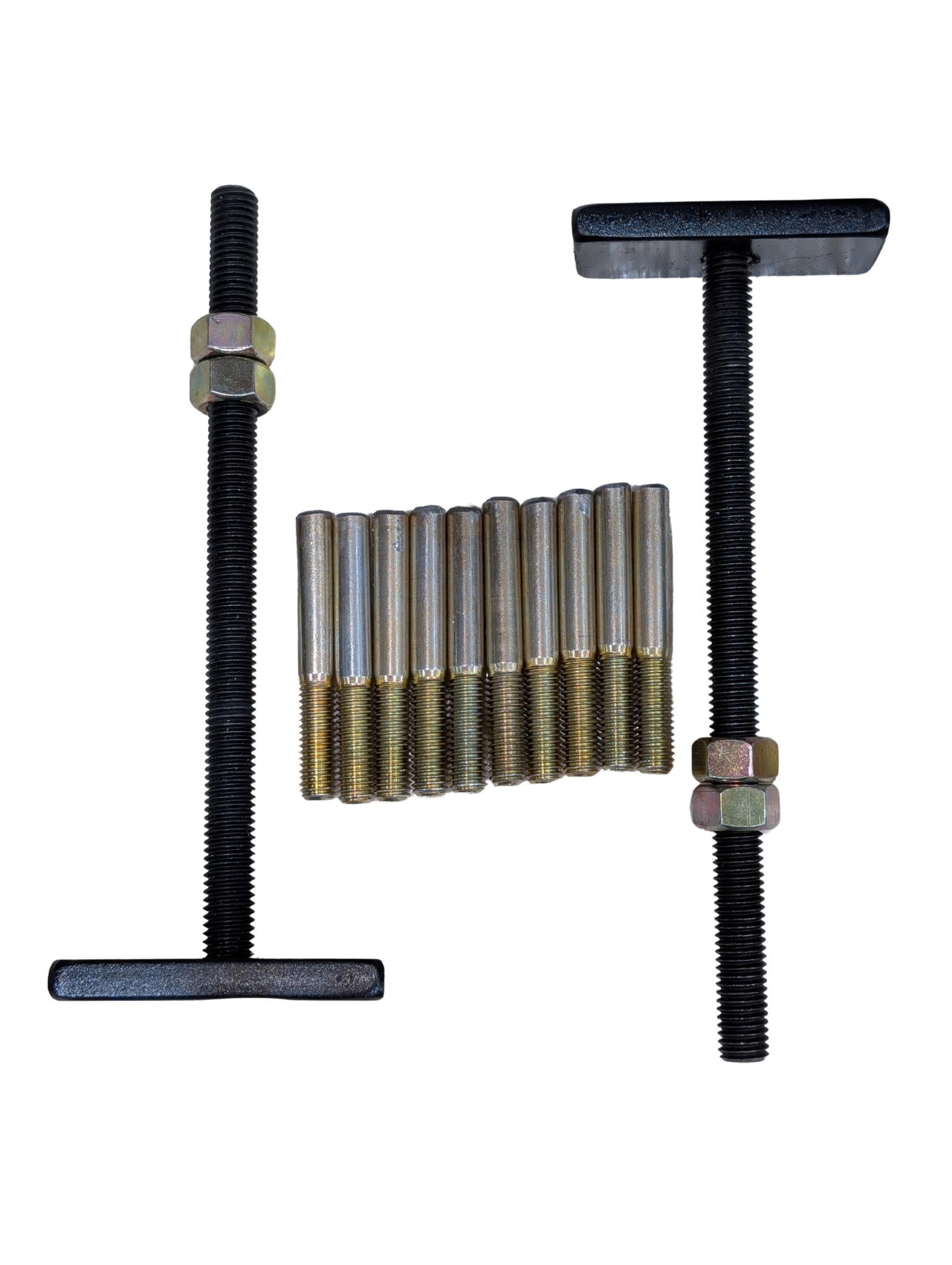

Telescoping tarp arm extends out to 181" and has 10 tapped holes for placing tarp grommet pins for holding tarp in place while spreading 4 T-handle locking bolts and a safety chain with a hook safely secures the unit to the forklift while in operation.

Attachment weight - 511 lbs.

Vertical center of gravity- 4.48"

Horizontal center of gravity - 17.89"

Loss load / "effective thickness" - 17" (distance from the face of the carriage to where the load starts)

Capacity lbs @ what load center- 500# @ 17" LC

Angle- 0.00

E.R. 05122015

This part is shipped out on a skid that is 187"L x 40"W x 20"H.

Item is built to order, please allow two to four weeks delivery time.
