Manual Dump Truck Tarp System - Aluminum, 4 Spring External Mount
Manual Dump Truck Tarp System - Aluminum, 4 Spring External Mount
Additional Photos Manual Dump Truck Tarp System - Aluminum, 4 Spring External Mount
Manual Dump Truck Tarp System - Aluminum, 4 Spring External Mount

Qty:    Price:

Add To CartHelp

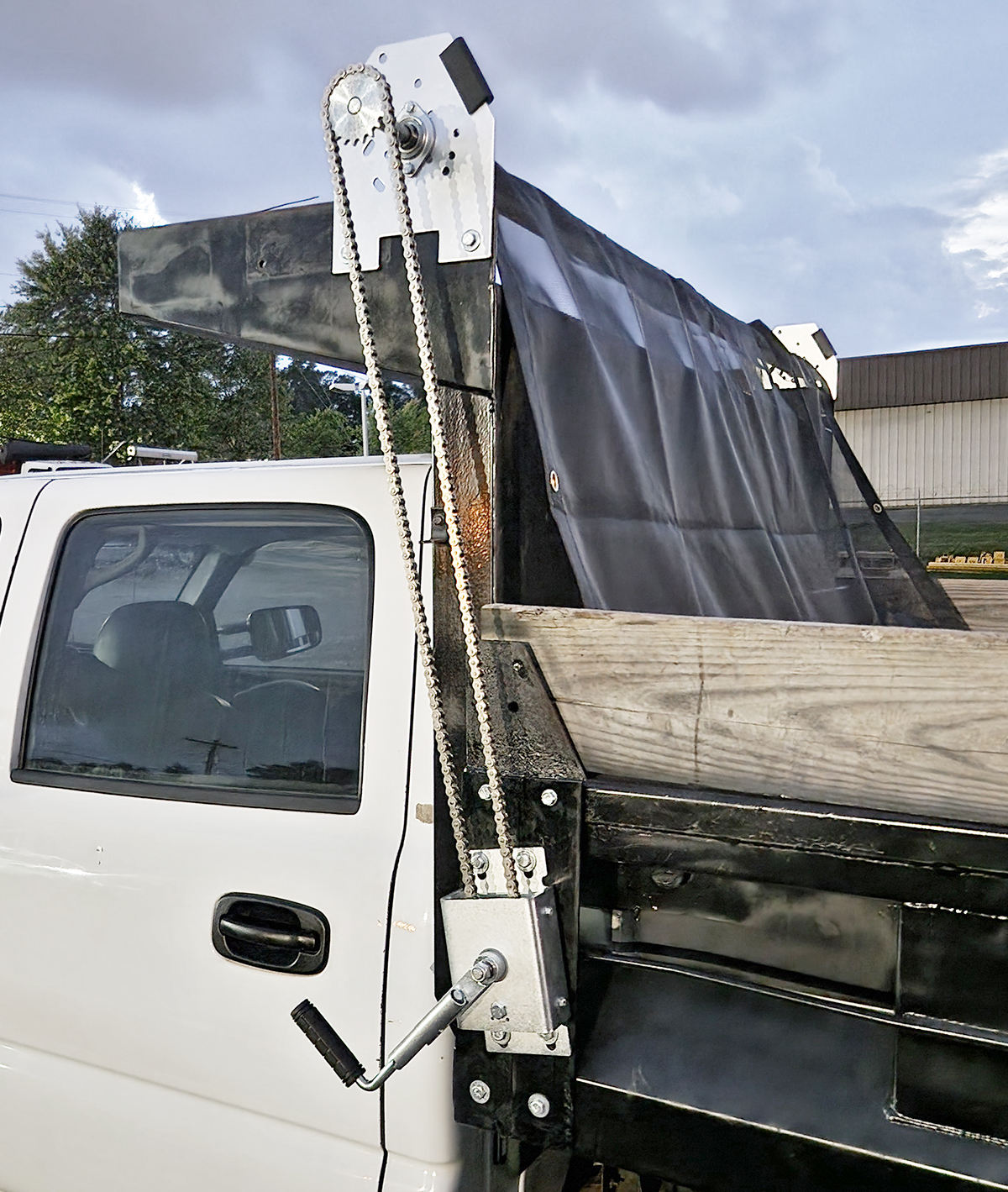

This 4-spring, front to back, ground level crank dump truck tarp system from Patriot is made from polished aluminum. 40% lighter than steel and completely rustproof, this dump truck tarp system comes with everything you need to contain loads in dump bodies 24' and under.

  • External mount springs with easy bolt-on application
  • High strength polished aluminum arms

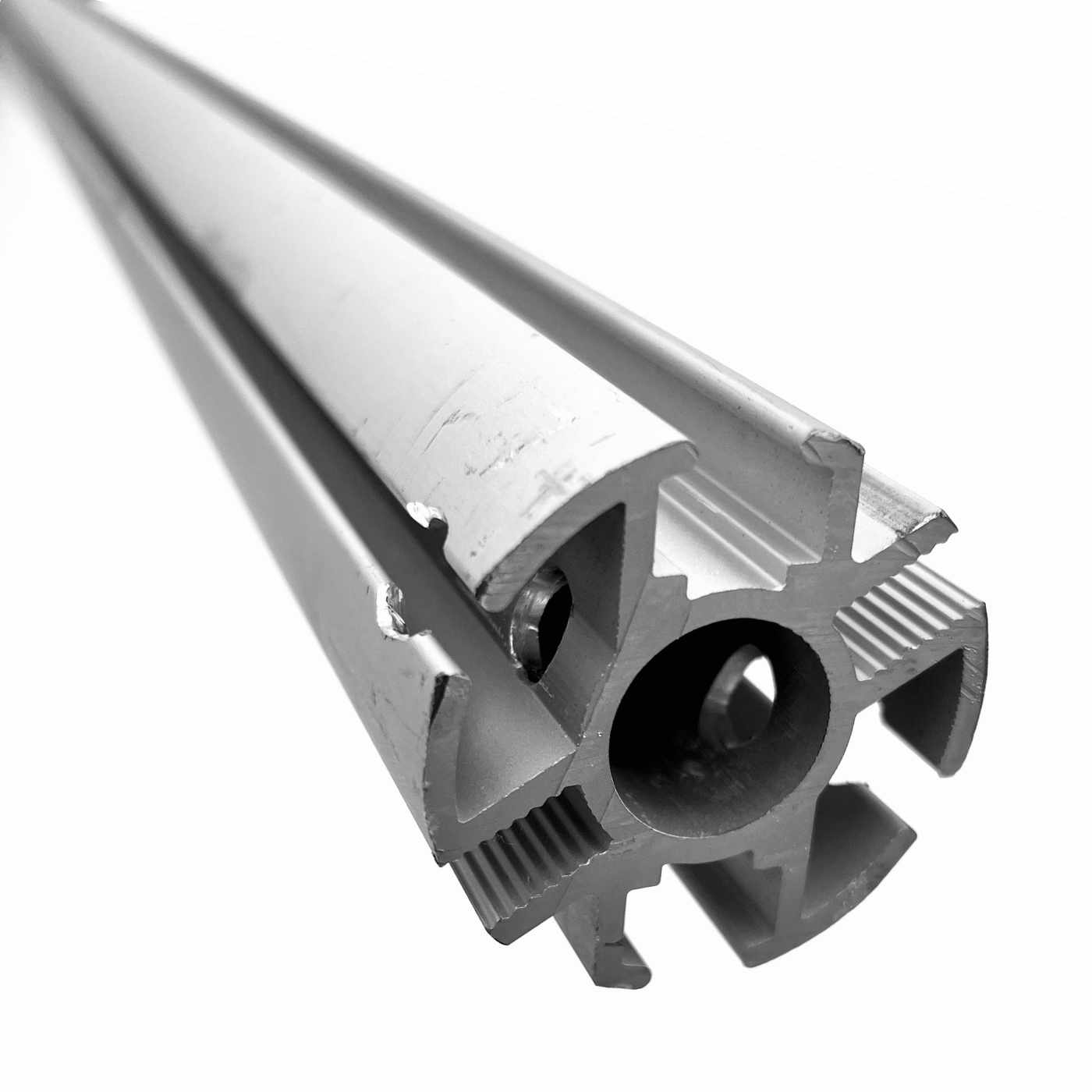

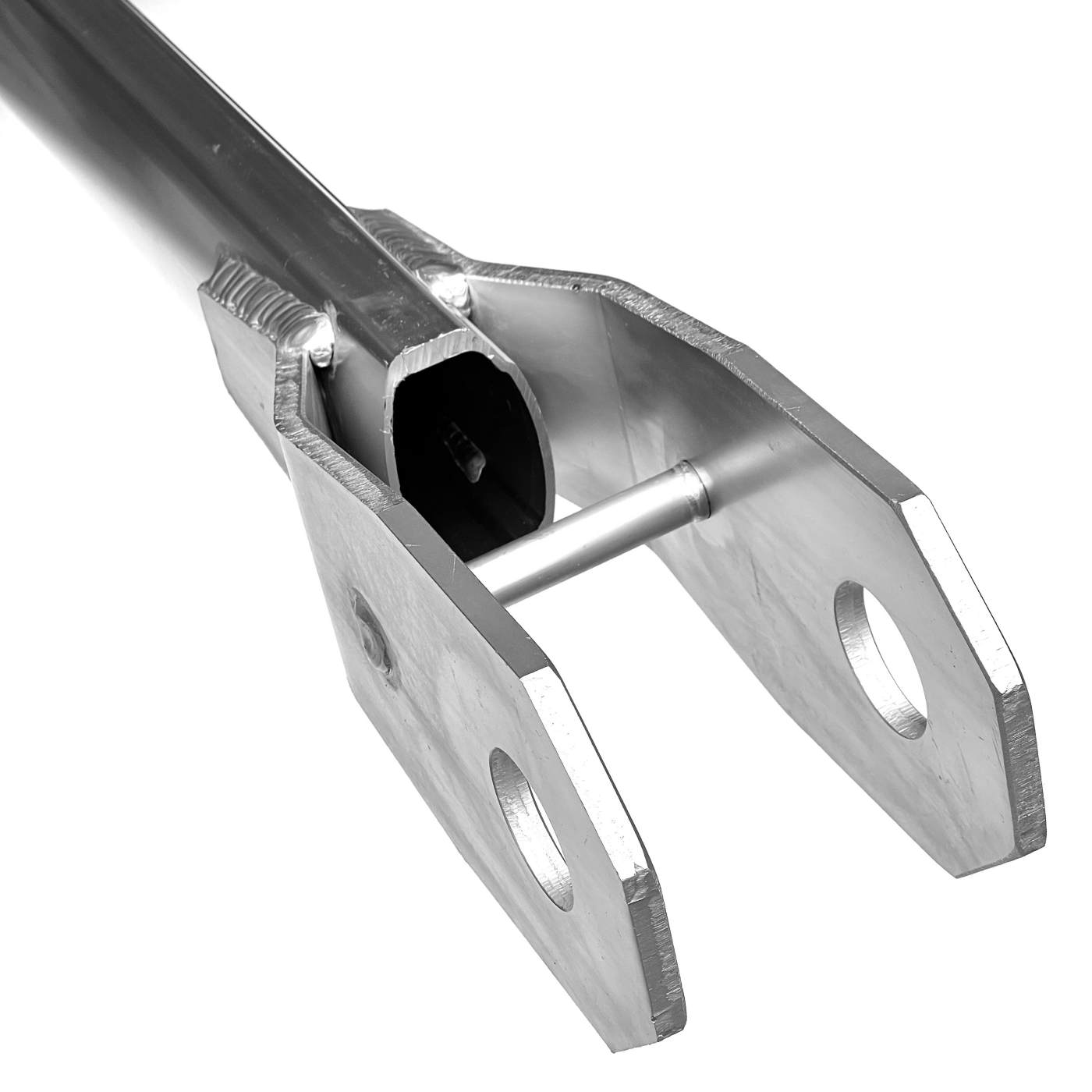

  • Everything you need to get started immediately — 5-spring external mount, 84" lower arm, tarp bows, tarp spool, and crank

Note: System only, tarp not included.

This kit contains all the components of the external mount tarp system. Click here to buy individual tarp system parts.

Complete system comes with all parts and hardware, including:

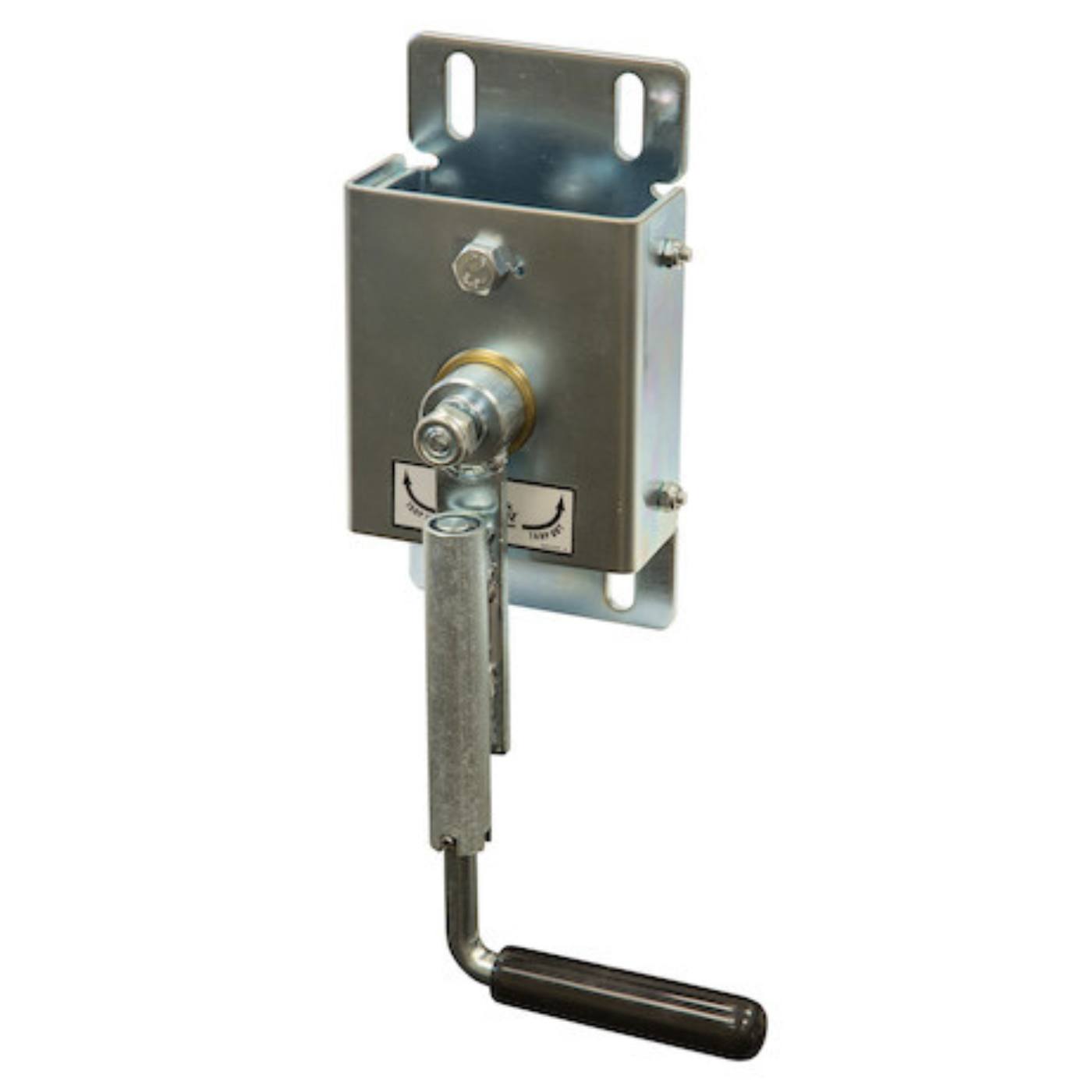

  • (1) Crank box for Ground Level Crank

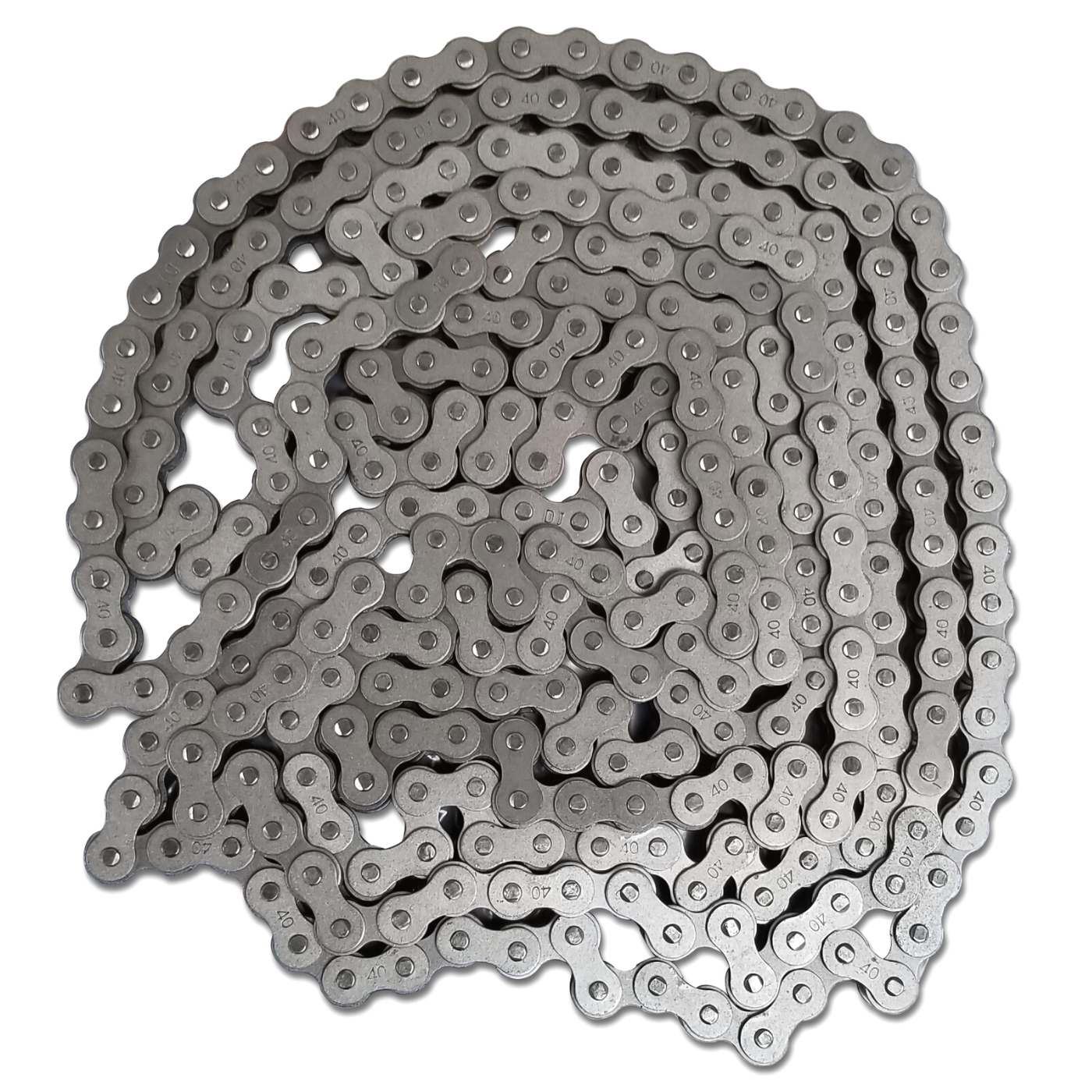

  • (1) #40 Chain 12' long for Ground Level Crank

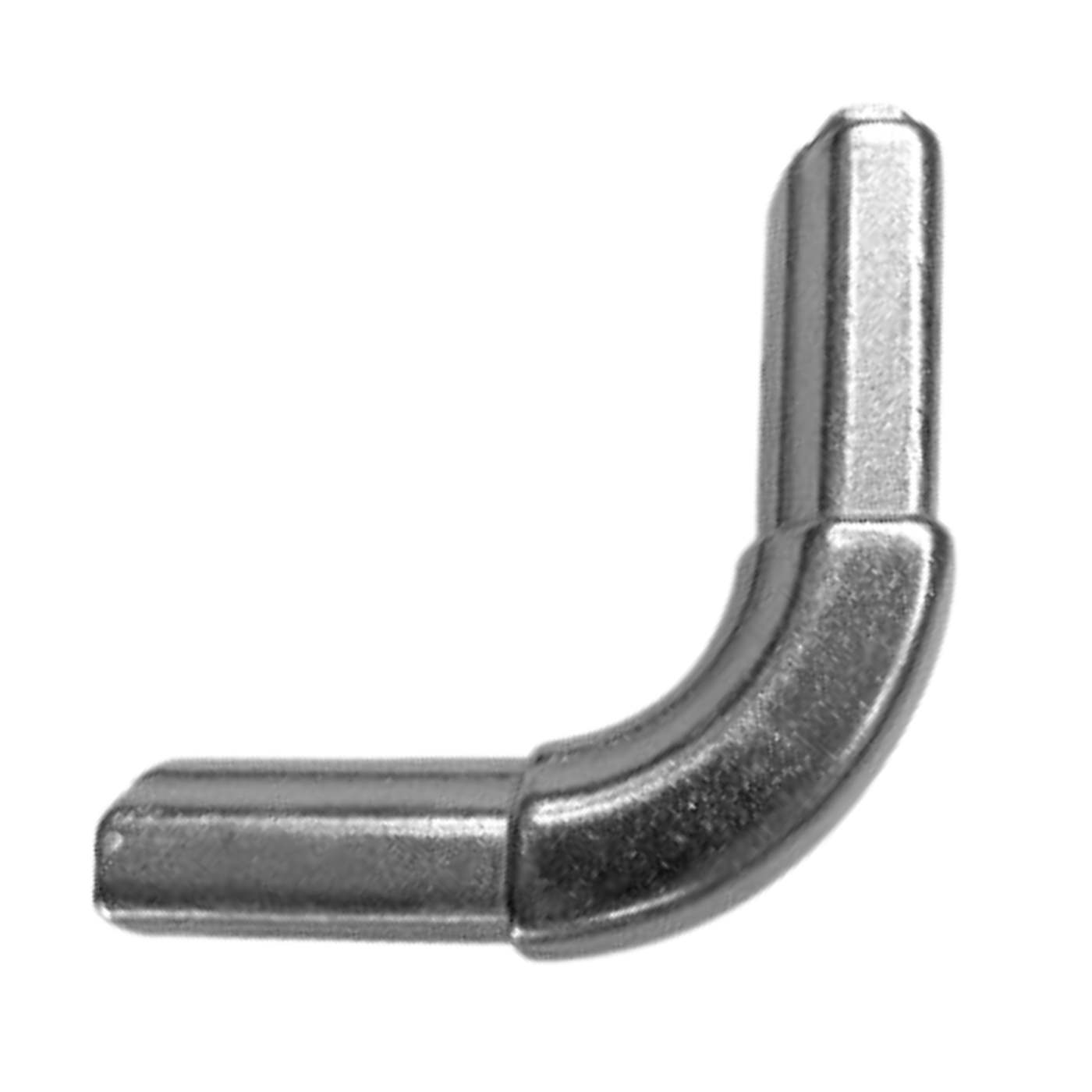

  • (2) Steel 90-degree elbows

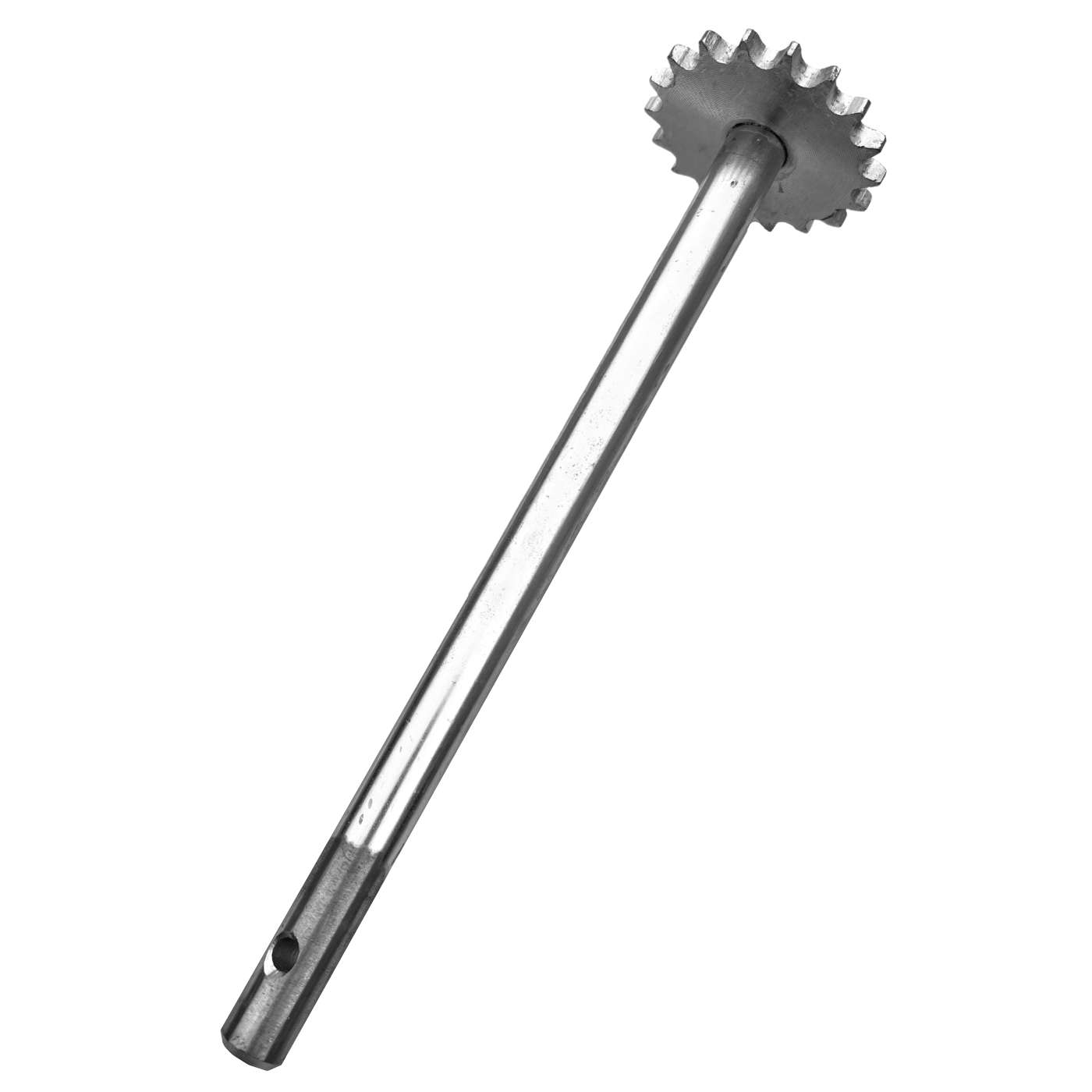

  • (1) 14" sprocket bar

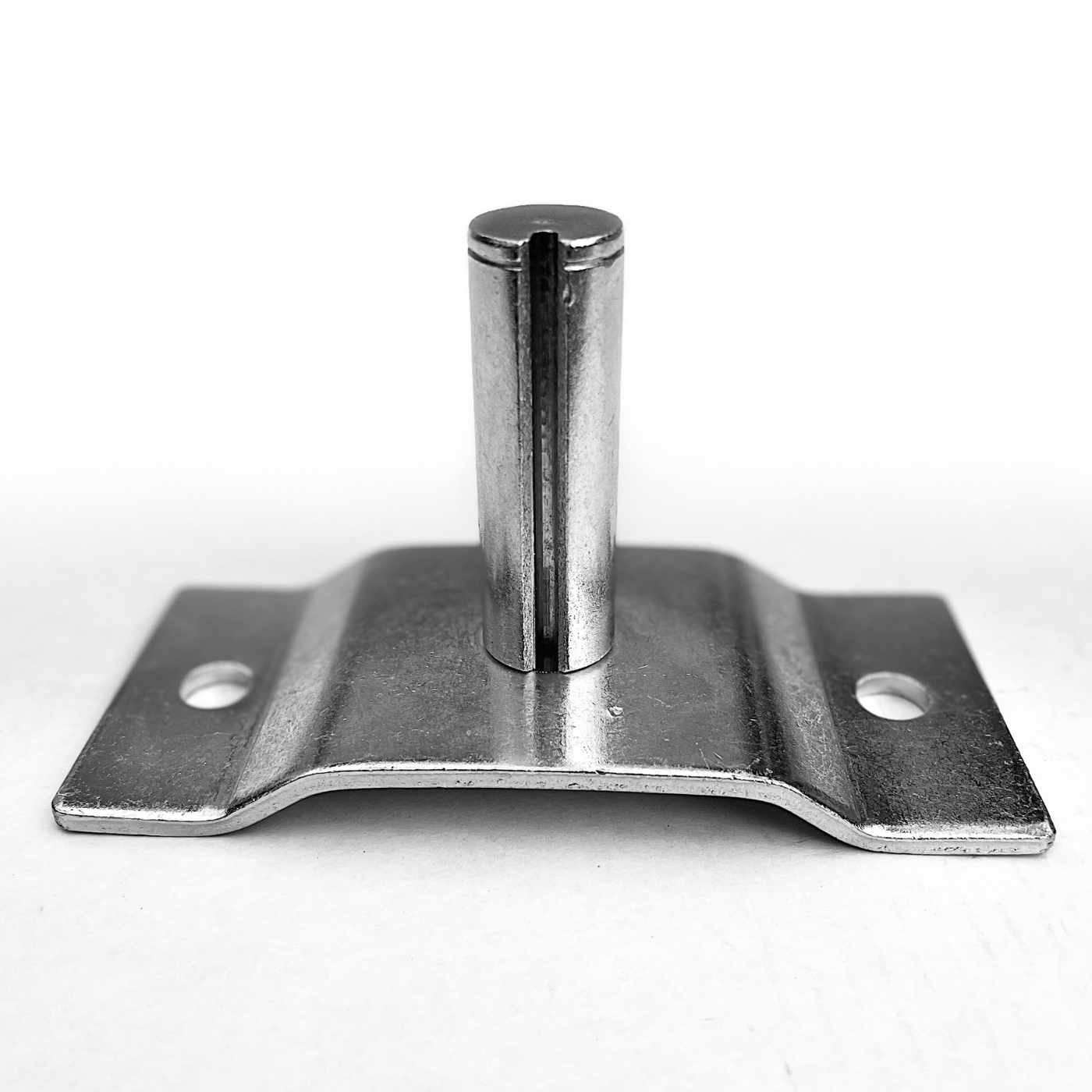

  • (2) 4-spring pivot pins, 3.700"

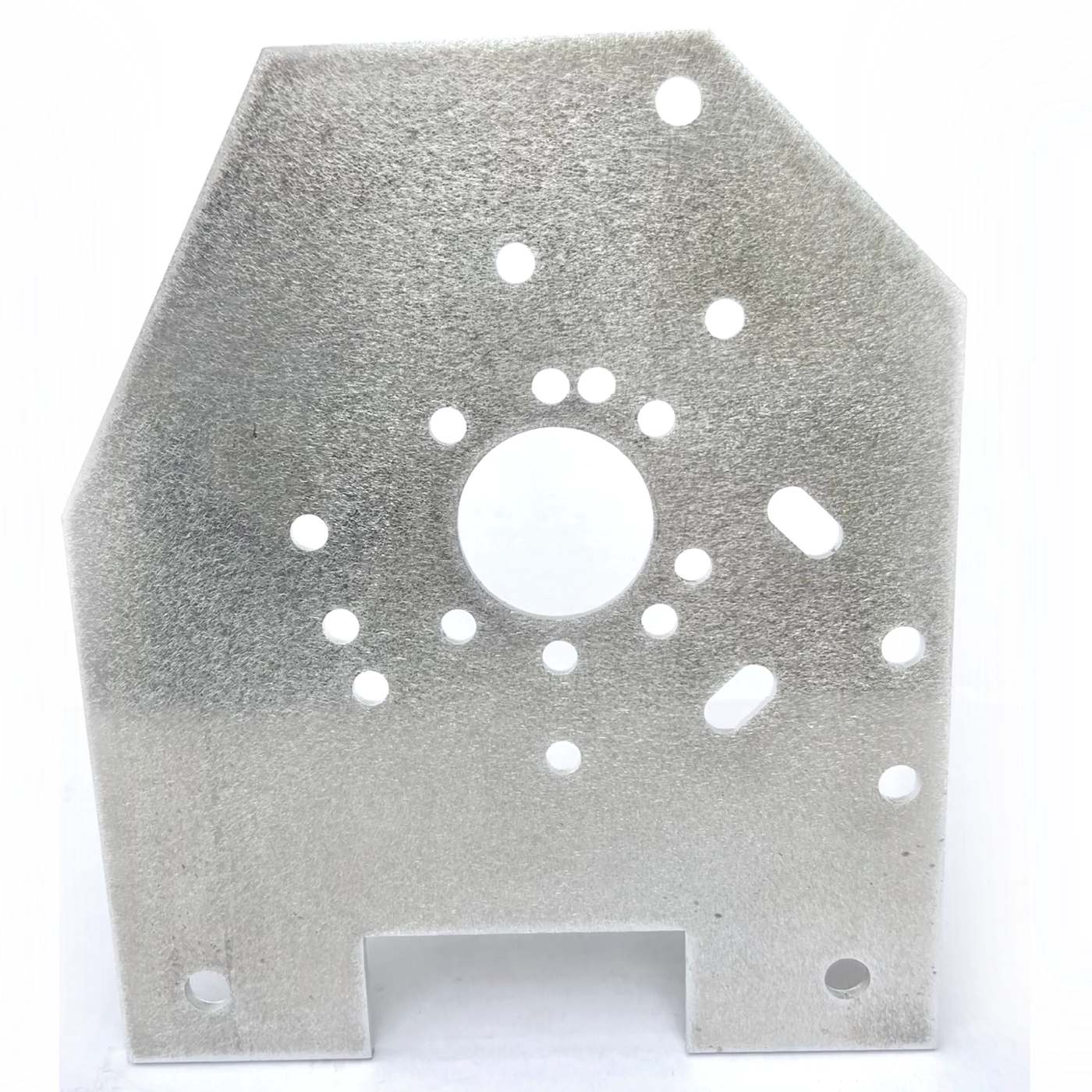

  • (2) Aluminum tarp spool mounting brackets

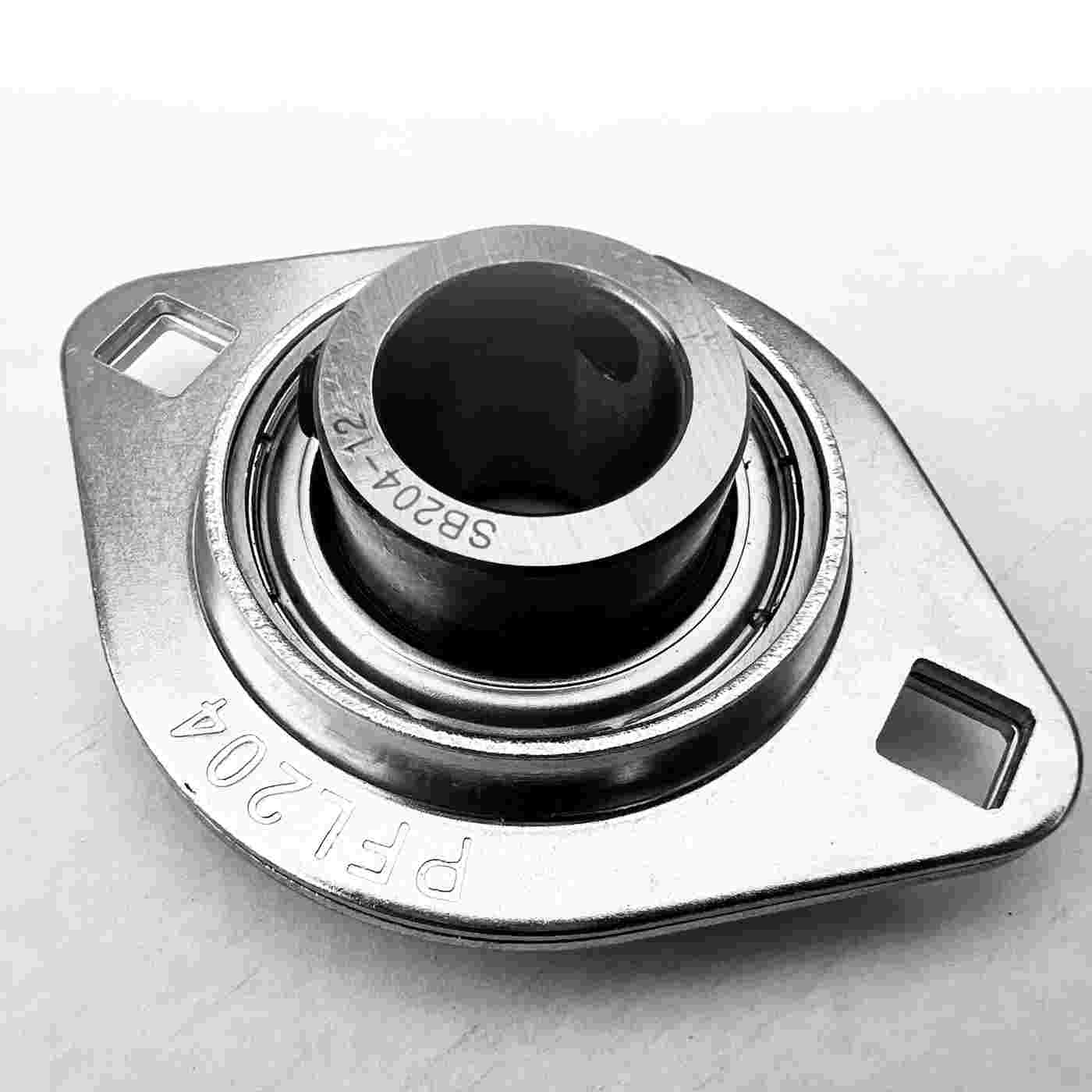

  • (1) Axle bearing w/flanges
  • (8) Spiral torsion springs
  • (2) Steel tarp centering flanges
  • All necessary hardware
  • Instructions
